CLGR® Stainless Steel Drop Forged Master Link

Name: CLGR® Stainless Steel Drop Forged Master Link
Brand: CLGR®

CLGR® Stainless Steel Drop Forged Master Link, also known as Stainless Steel Oblong Master Links or Stainless Steel Master Rings, is a high-strength rigging component essential for fisheries, aquaculture, and marine operations.

It is widely used for connecting nets, securing floats and sinkers, and rigging cages in saltwater environments such as trawling and marine farming.

The drop forged construction offers greater strength and reliability than standard cast links, ensuring consistent performance under heavy loads.

Grade 316 stainless steel is preferred for long-term seawater exposure due to its molybdenum-enhanced corrosion resistance, while Grade 304 suits short-term or low-corrosion applications.

Each link is polished and proof-tested for quality assurance. Available in a range of sizes. Custom configurations available upon request. Contact us for more details.

To Get A Quote >

Overview of CLGR® Stainless Steel Drop Forged Master Link

Brand	CLGR®
Material	Stainless steel Type 304 or 316 Master Link
Safety Factor	5: 1
Processing	Drop Forged
Finish	Highly Polishing
W.L.L.	3 T, 6 T
Country of Origin	China

Specification of CLGR® Stainless Steel Drop Forged Master Link

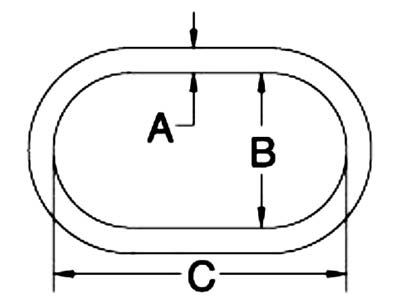

Drawing of CLGR® Stainless Steel Drop Forged Master Link

Part No.	A (Size)	B	C	WLL (lb)	WT (lb)
CRSSMLDF10	3/8"	1-1/2"	3"	1,500	0.35
CRSSMLDF13	1/2"	2-1/2"	5"	2,000	0.80
CRSSMLDF16	5/8"	3"	6"	2,850	1.60
CRSSMLDF20	3/4"	3-1/4"	6-1/2"	3,800	2.50
CRSSMLDF25	1"	3-1/2"	7"	8,000	4.80
CRSSMLDF32	1-1/4"	4-1/4"	8-3/4"	11,800	9.50

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.

CLGR® News & Blogs

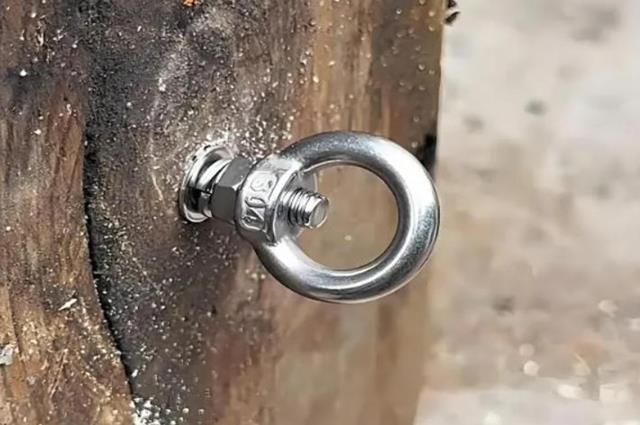

Eye Bolt Load Capacity: Complete Guide to Working Load Limits and Lifting Selection

When selecting lifting hardware for industrial applications, understanding eye bolt load capacity is essential for safe and efficient load handling. Eye bolts are widely used as connection points in c...

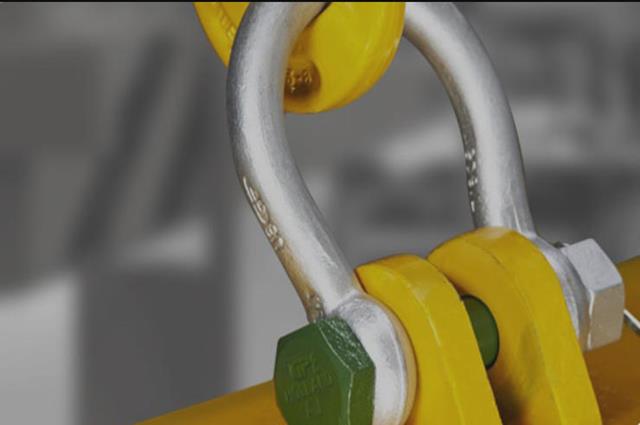

Types of Shackles for Lifting: Complete Guide to Selection and Applications
