CLGR® Welded Eye with Tube Thimble Wire Support Stainless Steel

Name: CLGR® Welded Eye with Tube Thimble Wire Support Stainless Steel
Brand: CLGR®

CLGR® Welded Eye with Tube Thimble Wire Support is a stainless steel rigging component designed to create secure attachment points for shade sails and tension structures.

Made from marine-grade stainless steel (AISI 316 or AISI 304) with an highly polished finish, it offers excellent corrosion resistance for both coastal and marine environments .

It is commonly sewn into the webbing of shade sails, providing a reinforced fixing point between the fabric and its anchor .

The fitting features a welded retaining eye that keeps the wire rope properly positioned, while the tubular thimble design reduces friction and minimizes wire fatigue at the connection point.

Available in standard sizes for wire diameters up to 8-10mm. Custom size are also available upon request.

To Get A Quote >

Overview of CLGR® Welded Eye with Tube Thimble Wire Support Stainless Steel

Brand	CLGR®
Material	Stainless-Steel 304/316
Processing	Welded
Finish	Highly Polishing
Size-Rope Dia.	8-10mm
Country of Origin	China

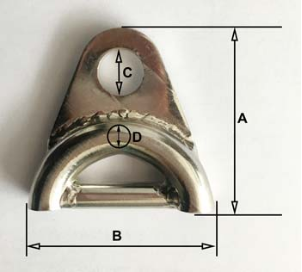

Specifications of CLGR® Welded Eye with Tube Thimble Wire Support Stainless Steel

clgr®-welded-eye-with-tube-thimble-wire-support-stainless-steel-china-supplier

Part No.	SIZE	A	B	C	D	WEIGHT (KG)
CRSSWET810	Rope Dia.:8-10mm	65mm	68mm	16mm	11mm	0.11

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
