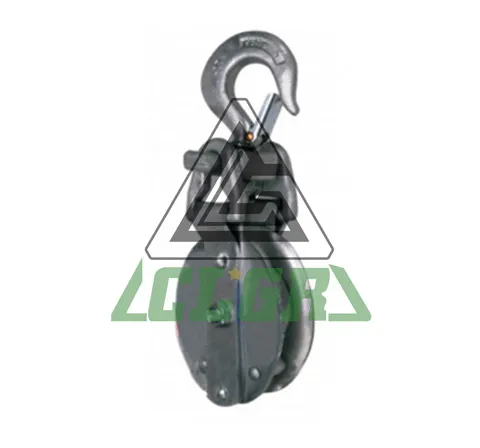

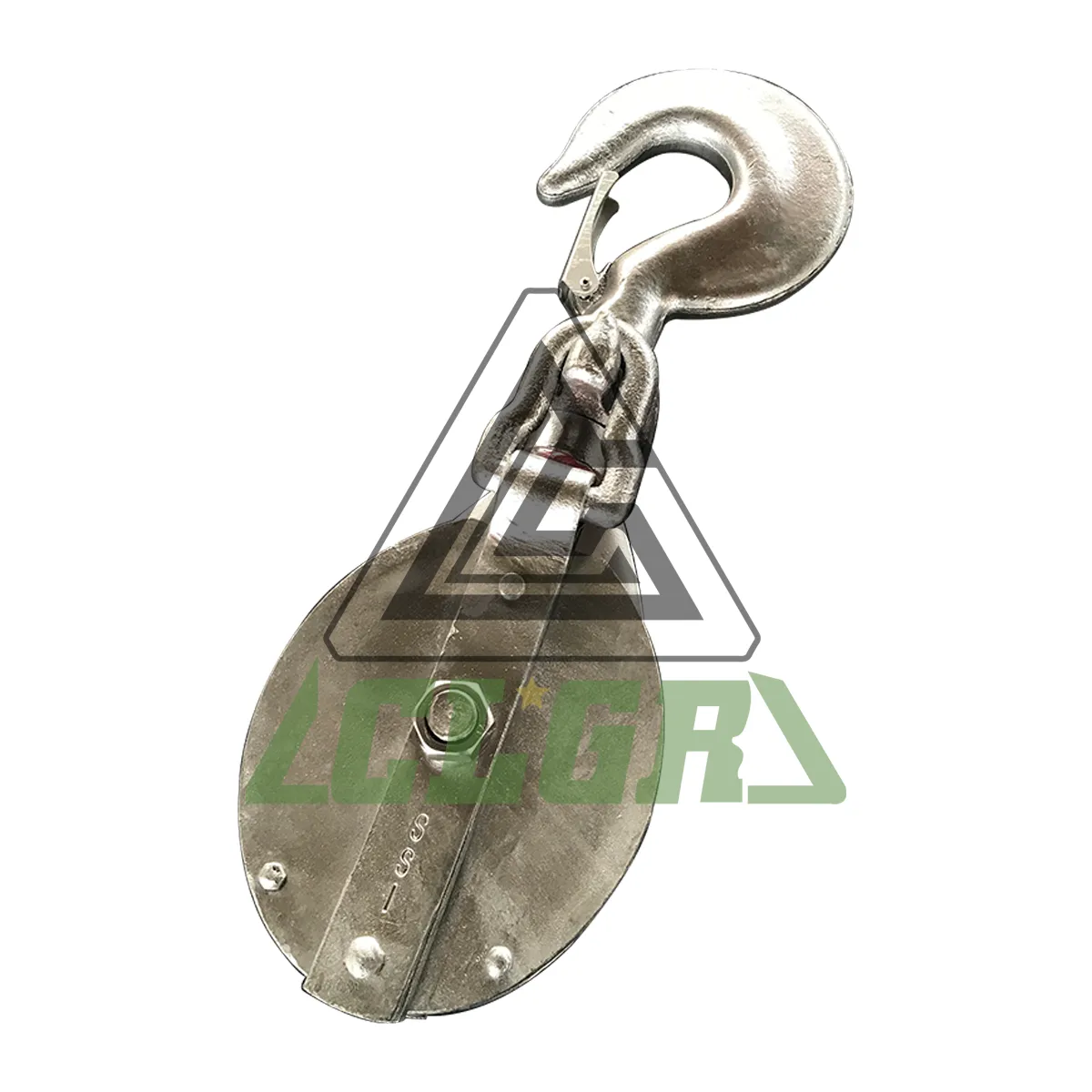

CLGR® Snatch Block with Hook Self-Locking for Manila Rope features an elevated Working Load Limit, positioning it as a sturdy option for challenging lifting tasks.
Designed with a laser-cut sideplate that opens, it enables effortless rope insertion to streamline setup processes. This block comes equipped with an exclusive bolt-retaining spring to keep bolts from getting lost, and it is further supported by a secondary retaining pin for enhanced security.
Its galvanized steel shell provides reliable corrosion resistance, ensuring durability in various environments, we usually use in Marine Operation.
We have size 4″, 6″, 8″, 10″, 12″ for your reference.
Brand | CLGR® |
Material | Steel |
Surface Finished | Galvanized |
Size | 4″, 6″, 8″, 10″, 12″ |
Origin | China |
Note | Do not exceed working load limit (WLL). |
Part No. | Size | W.L.L | Dia of Rope | Net Weight |
in | lbs | in | kg | |
CRWHS104 | 4″ | 1200 | 3/4″ | 1.9 |
CRWHS106 | 6″ | 2400 | 7/8″ | 3.9 |
CRWHS108 | 8″ | 4800 | 1-1/8″ | 5.8 |
CRWHS110 | 10″ | 6600 | 1-1/4″ | 13 |
CRWHS112 | 12″ | 9600 | 1-1/2″ | 19 |
