CLGR® Galvanized Carabine Snap Hook with Screw Nut DIN5299 Form D

Name: CLGR® Galvanized Carabine Snap Hook with Screw Nut DIN5299 Form D
Brand: CLGR®

CLGR® Galvanized Carabine Snap Hook with Screw Nut DIN5299, also known as Carabine hooks with Lock Screw – Galvanized and Carbine Snap Hook with Screw Nut.

The carabine snap hooks for sale are using low carbon steel, as per international qualitative standards DIN5299. Durable and versatile snap hook DIN5299 for attaching ropes, chains, and straps. The snap hooks for sale are available in various sizes, such as 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, and 14mm as well as customized sizes.

Attention: The CLGR® carabine snap hooks for sale cannot be opened when loaded with specified load capacity due to elastic deformation.

To Get A Quote >

CLGR® Galvanized Carabine Snap Hook with Screw Nut DIN5299 Form D

 

Overview of CLGR® Galvanized Carabine Snap Hook with Screw Nut DIN5299 Form D

Brand	CLGR®
Type	DIN 5299D
Size	5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm, 10x100mm, 11x120mm, 12x140mm, 13x160mm, 14x180mm spring snap hook with locking screw gate
Material	Low Carbon Steel
Processing	Stamping / Machining
Finish	Zinc Plated (Electro-galvanized)

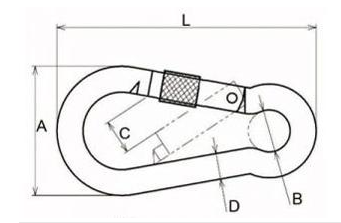

Specifications of CLGR® Galvanized Carabine Snap Hook DIN5299 Form D


Part No.	Size	A	B	C	D	L	W.L.L	N.W.
DIN 5299D	mm						lbs	kgs/100pcs
CRCSHSND05	5×50	25	8	6	5	50	150	2
CRCSHSND06	6×60	30	9	7	6	60	250	3
CRCSHSND07	7×70	35	10	7.5	7	70	320	5
CRCSHSND08	8×80	40	11	8.5	8	80	400	7.5
CRCSHSND09	9×90	45	13	9	9	90	500	9.8
CRCSHSND10	10×100	50	16	10	10	100	650	16
CRCSHSND11	11×120	57	18	16	11	120	700	21
CRCSHSND12	12×140	67	20	18	12	140	800	27
CRCSHSND13	13×160	74	22	25	13	160	1200	36
CRCSHSND14	14×180	86	22	39	14	180	1400	51

In addition to above options, we also offer stainless steel carabiner snap hooks for enhanced strength and corrosion resistance. Perfect for marine, industrial, or outdoor use, these rust-proof hooks ensure long-lasting performance even in harsh conditions.
