CLGR® Oval Snap Hook w/Screw Nut

Name: CLGR® Oval Snap Hook w/Screw Nut
Brand: CLGR®

CLGR® Oval Snap Hook w/Screw Nut also known as Oval carabiner hook, Carabiner hook with screw nut and Galvanized oval snap hook with screw lock.

CLGR® Oval Snap Hook with Screw Nut - Manufactured from superior mild steel with zinc galvanized finish for reliable corrosion resistance in industrial applications. The snap hooks for sale feature a secure screw nut locking mechanism to prevent accidental opening, offering enhanced safety for rigging, equipment connection, and marine uses.

Available in sizes from 5×50mm to 11×120mm, the snap hooks for sale from CLGR®, one of the professional snap hooks manufacturers, meet various requirements.

The snap hooks for sale are not rated for overhead lifting, climbing, or personal safety applications. Always verify working load limits before use.

To Get A Quote >

Oval Snap Hooks Carbine Hooks with nut China Manufacturer

Oval Snap Hooks Carbine Hooks with nut China Supplier

Oval Snap Hooks Carbine Hooks with nut China Wholesale

 

Overview of Oval Snap Hook w/Screw Nut

Brand	CLGR®
Origin	China
Material	Superior Mild Steel oval snap hook
Finish	Zinc Galvanized
Size	5×50mm, 6×60mm, 8×80mm, 10×100mm, 11×120mm
Tips	Use as fasteners or quick attachment.

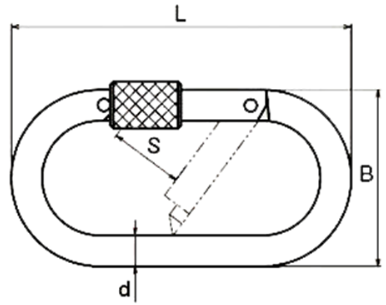

Specifications of Oval Snap Hook w/Screw Nut

Part No.	Size	d	B	L	S	W.L.L.
Part No.	mm	mm	mm	mm	mm	lbs
CR-OSH-WS-01	5×50	5	25	50	9	100
CR-OSH-WS-02	6×60	6	30	60	11	140
CR-OSH-WS-03	8×80	8	40	80	13	250
CR-OSH-WS-04	10×100	10	50	100	16	400
CR-OSH-WS-05	11×120	11	58	120	21	500
