CLGR® Galvanized Carabine Snap Hook DIN5299 Form C

Name: CLGR® Galvanized Carabine Snap Hook DIN5299 Form C
Brand: CLGR®

CLGR® Galvanized Carabiner Snap Hook DIN5299 Form C, also known as Electro Galvanized Spring Snap Link, Carbine Snap hook and Fire Brigade Snap Hook.

The snap hooks for sale from CLGR® are made of mild steel, compliant with the international quality standard DIN 5299, ensuring high-quality strength and performance.

This durable zinc-plated steel hook offers a safe and reliable connection point for various applications. The spring-loaded closure mechanism of the snap hooks for sale ensures secure latching while maintaining easy release when required. Whether used for towing or lifting operations, the protective zinc coating provides excellent corrosion resistance, guaranteeing long-term performance and dependability.

Available through CLGR® as one of the reliable snap hooks manufacturers, our snap hooks for sale are provided in 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, and 15mm as well as customized sizes.

Attention: The snap hooks for sale cannot be opened when loaded with specified load capacity due to elastic deformation.

To Get A Quote >

CLGR® Galvanized Carabine Snap Hook DIN5299 Form C

Overview of CLGR® Galvanized Carabine Snap Hook DIN5299 Form C

Brand	CLGR®
Size	4x40mm, 5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm,10x100mm, 11x120mm, 12x140mm, 13x160mm, 14x180mm, 15x200mm Spring Snap Hook
Type	DIN 5299C
Material	Mild Steel Carabiner Hook
Processing	Stamping / Machining
Finish	Zinc Plated (Electro-galvanized)

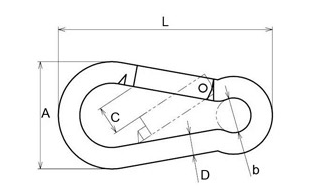

Specifications of CLGR® Galvanized Carabine Snap Hook DIN5299 Form C

Part No.	Size	A	B	C	D	L	W.L.L	N.W.
DIN 5299C	mm						lbs	kgs/100pcs
CRCSHC04	4X40	20	6	6	4	40	100	0.8
CRCSHC05	5×50	25	8	7	5	50	160	1.6
CRCSHC06	6×60	30	9	7	6	60	260	2.8
CRCSHC07	7×70	35	10	10	7	70	335	4.5
CRCSHC08	8×80	40	12	11	8	80	400	6.3
CRCSHC09	9×90	45	12	11	9	90	500	9
CRCSHC10	10×100	50	15	12	10	100	650	12.5
CRCSHC11	11×120	57	18	19	11	120	700	19.2
CRCSHC12	12×140	67	20	20	12	140	800	25
CRCSHC13	13×160	74	22	29	13	160	1300	35
CRCSHC14	14×180	86	22	42	14	180	1600	45.5
CRCSHC15	15X200	90	26	42	15	200	1800	61.8

The load capacity specified in the table is intended to indicate the highest possible load capacity of the snap hooks.
