CLGR® Closed Type Pulley Block Double Sheave With Hook 7512

Name: CLGR® Closed Type Pulley Block Double Sheave With Hook 7512
Brand: CLGR®

CLGR® Closed Type Pulley Block Double Sheave With Hook 7512, also known as Lifting Pulley Block, Double Beam Crane Hooks.

It consists of 2 sheaves and fitting with hook, eye, or shackle, and there are snatch(open) or closed type options, the closed design keeps the rope securely in the sheave groove during operation.

Finish options include painted or hot dip galvanized for corrosion protection.

Available in various sizes: 2'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12''.

Working load limits: 0.25t, 0.5t, 1t, 1.5t, 2t, 3t, 4t, 5t, 6t.

To Get A Quote >

Closed Type Pulley Block Double Sheave With Hook 7512

Closed Type Pulley Block Double Sheave With Hook 7512 China Manufacturer

Closed Type Pulley Block Double Sheave With Hook 7512 China SUPPLIER

Overview of Closed Type Pulley Block Double Sheave With Hook 7512

Brand	China CLGR®
Type	Double Sheave Block 7512
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of Closed Type Pulley Block Double Sheave With Hook 7512

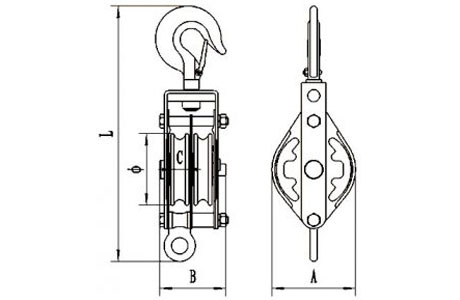

drawing-of-closed-type-pulley-block-double-sheave-with-hook-7512-china-supplier

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7512H-2	2″	0.25	6mm	50	215	58	60	11	1.2
CR7512H-3	3″	0.5	8mm	71	300	88	82	10	2.1
CR7512H-4	4″	1	10mm	96	370	112	93	15	3.7
CR7512H-5	5″	1.5	13mm	121	415	140	101	17	6
CR7512H-6	6″	2	16mm	148	492	164	116	20	8.8
CR7512H-7	7″	3	19mm	173	560	196	130	22	13.5
CR7512H-8	8″	4	22mm	200	593	220	137	26	18
CR7512H-10	10″	5	25mm	250	703	272	140	28	26
CR7512H-12	12″	6	28mm	300	773	320	141	28	33
