CLGR® Grade 80 Swivel Lifting Point

Name: CLGR® Grade 80 Swivel Lifting Point
Brand: CLGR®

CLGR® Swivel Lifting Point Grade 80, also known as Pivoting Lifting Screw, Grade 80 Swivel Hoist Ring, Grade 80 Lifting Point, Grade 80 Swivel Eye Bolt Lifting Point.

Forged from Grade 80 alloy steel and quenched and tempered for strength, this Swivel Lifting Point features a red painted finish and is designed with a minimum breaking load of 4 times the Working Load Limit (W.L.L.).

Each unit is clearly marked with its WLL, size, material grade, and manufacturer's identification, and complies with CE standards.

To Get A Quote >

CLGR® Grade 80 Swivel Lifting Point China Factory

CLGR® Grade 80 Swivel Lifting Point China Supplier

Overview of CLGR® Grade 80 Swivel Lifting Point

Brand	CLGR®
Standard	EN1677
Material	Super Alloy steel
Processing	Forged / Quenched and Tempered
Finish	Powder Coated
Size	M8, M10, M12, M14, M16, M1826, M20, M2055, M2060, M2435, M2440, M2460, M27, M30, M3070, M3654, M3670, M3662, M4272, M4263, M48*74
Safety Factor	4:1

Specifications of CLGR® Grade 80 Swivel Lifting Point

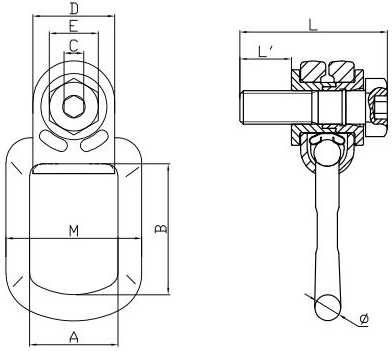

drawing-of-clgr-grade-80-swivel-lifting-point-china-supplier

Part No.	Weight (kg)	WLL (t)	B.L. (t)	A±1	B±1	C	D	E	M±1.5	L±1.5	L'±1.5	⌀±0.5
8CRSLP08	0.36	0.3	1.2	35	52.5	6	30	13	45	46	10.4	14
8CRSLP10	0.38	0.63	2.52	35	52.5	6	30	17	45	52	15.4	14
8CRSLP12	0.71	1	4	40	54	8	36	19	68	62	18	18
8CRSLP14	0.72	1.2	4.8	40	54	8	36	19	68	66	21	18
8CRSLP16	0.74	1.5	6	40	54	8	36	19	68	70	24	18
8CRSLP18*26	1.16	2	8	54	80	12	50	30	83	83	26	16
8CRSLP20	1.19	2.5	10	54	80	12	50	30	83	88	30	16
8CRSLP20*55	1.12	2.5	10	54	80	12	50	30	83	113	55	16
8CRSLP20*60	1.25	2.5	10	54	80	12	50	30	83	118	60	16
8CRSLP24*35	1.35	4	16	54	94	14	50	36	83	95	35	18
8CRSLP24*40	1.38	4	16	54	94	14	50	36	83	100	40	18
8CRSLP24*60	1.46	4	16	54	94	14	50	36	83	120	60	18
8CRSLP27	4.18	4	16	73	106	17	68	41	120	120	38	27
8CRSLP30	4.4	5	20	73	106	17	68	41	120	132	48	27
8CRSLP30*70	4.52	5	20	73	106	17	68	41	120	154	70	27
8CRSLP36*54	4.65	7	28	73	106	17	68	41	120	142	54	27
8CRSLP36*70	4.8	7	28	73	106	17	68	41	120	158	70	27
8CRSLP36*62	7.6	8	32	94	140.5	22	86	55	156	163	62	31
8CRSLP42*72	8.2	10	40	94	140.5	24	86	65	156	176	72	31
8CRSLP42*63	12.4	15	40	104	155	24	95	65	176	179	63	40
8CRSLP48*74	13.0	20	80	104	155	27	95	75	176	194	74	40
