CLGR® Pneumatic Fenders Marine Fender

Name: CLGR® Pneumatic Fenders Marine Fender
Brand: CLGR®

CLGR® Pneumatic Fender is designed for simplicity and flexibility. It floats on water and is easy to install, requiring just a mooring line or chain to hold it in place.

When the task is done, the fender can be quickly removed and stored ashore, or moved to another berth without hassle. This makes it a practical choice for ports with changing vessel sizes, temporary mooring points, or seasonal operations. No heavy lifting equipment or complex anchoring systems are needed—just straightforward, reliable fendering that adapts to your schedule.

Beyond our standard models, we can also customize pneumatic fenders to match your specific requirements—whether for vessel size, docking configuration, or special project conditions.

Get in touch with us to find the right pneumatic fender solution for your operation.

To Get A Quote >

Overview of CLGR® Pneumatic Fenders Marine Fender

Brand	CLGR®
Fender Type	Pneumatic Foam Fender
Size & Color	Customized According To Customers' Requirements

Specifications of CLGR® Pneumatic Fenders Marine Fender

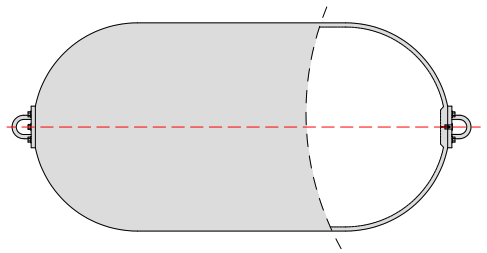

Drawing of CLGR® Pneumatic Fenders Marine Fender

Part No.	Φ×L	60% Compression		Safety Valve setting	Test pressure	Fender Reference Weight				Weight of sling type
		Reaction Force	Energy Absorption			Fender buffer weight	Net Weigtht
		Reaction Force	Energy Absorption			Fender buffer weight	Chain	Wire	Synthetic fiber
	mm	kN	kNm	Kpa	Kg	Kg	Kg	Kg	Kg	Kg
CRPF300	300×500	14	1	—	—	8	—	—	—	—
CRRF400	400×800	30	3	—	—	20	—	—	—	—
CRRF400	500×1000	54	5	—	145	25	—	30	20	32
CRRF600	600×1000	65	7	—	145	28	—	30	22	36
CRRF700	700×1500	115	14	—	145	64	150	40	37	55
CRRF1015	1000×1500	156	28	—	145	125	190	80	51	105
CRRF1020	1000×2000	217	38	—	145	175	230	140	68	120
CRRF1220	1200×2000	253	54	—	145	208	300	190	—	140
CRRF1224	1200×2400	303	64	—	145	248	320	198	—	—
CRRF13525	1350×2500	410	104	—	145	270	330	200	—	210
CRRF1530	1500×3000	486	128	—	145	225	490	350	—	265
CRRF1730	1700×3000	542	163	—	145	365	580	440	—	290
CRRF2035	2000×3500	743	263	—	145	585	980	640	—	450
CRRF2245	2200×4500	1078	417	—	145	1080	1090	820	—	—
CRRF2540	2500×4000	1049	464	175	195	1560	1260	910	—	1080
CRRF3365	3300×6500	2981	1795	175	240	2585	2680	1910	—	—
CRRF4590	4500×9000	5688	4688	175	240	4575	4810	3520	—	—

Installation dimensions

Sufficient support surface is required at the mounting points, as pneumatic fenders are deformed under compression and impact.

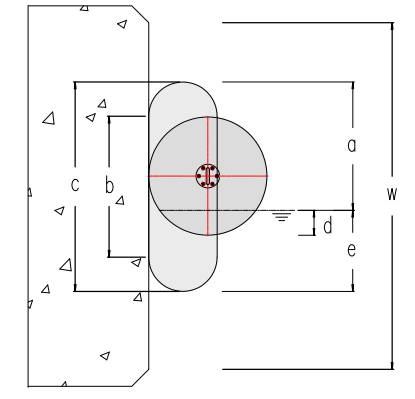

Installation dimensions of CLGR® Pneumatic Fenders Marine Fender

Size	a	b	c	d	e	w
1000×1500	975	950	1350	200	375	2000
1200×2000	1200	1140	1620	220	430	2600
1500×2500	1525	1420	2050	250	525	3250
2000×3500	2050	1900	2700	300	650	4500
2500×4000	2490	2380	3380	450	890	5200
3300×6600	3380	3140	4460	500	1080	8500
