CLGR® DIN 741 Malleable Wire Rope Clips Galvanized

Name: CLGR® DIN 741 Malleable Wire Rope Clips Galvanized
Brand: CLGR®

The Malleable Wire Rope Clips, commonly called Steel Cable Clamps or Wire Rope Grips.

When installing wire rope clips, the first clip must be positioned directly after the thimble - or at a distance equal to twice the thimble diameter when using round thimbles. In any case the bow of the clip has to be on the unloaded part of the wire rope. Subsequent clips should be spaced at intervals no less than the width of the clip itself.

The required number of clips varies by rope diameter: three for 3-7mm, four for 8-19mm, five for 22-26mm, and six for 30-40mm ropes. These malleable clips serve as reliable alternatives where permanent crimping isn't feasible, with each unit clearly marked for size identification on the bridge exterior.

For optimal performance and safety:

• Tighten all nuts to specified torque values initially.

• Conduct mandatory re-tightening after the first load application.

• Verify the clip body remains on the active load-bearing section.

• Maintain proper spacing between all installed clips.

To Get A Quote >

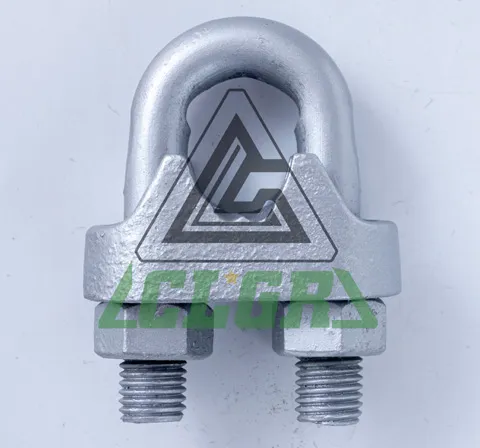

clgr din 741 malleable wire rope clips galvanized wholesale manufacturer

clgr din 741 malleable wire rope clips galvanized in china

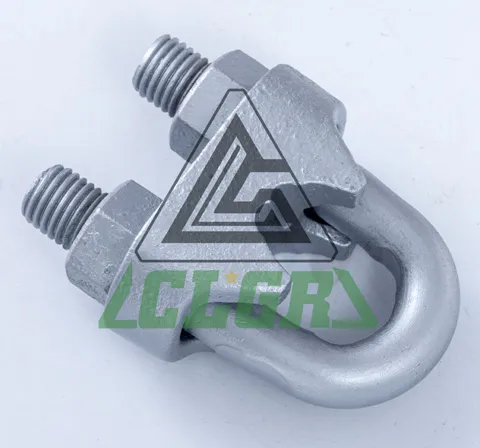

clgr din 741 malleable wire rope clips galvanized material

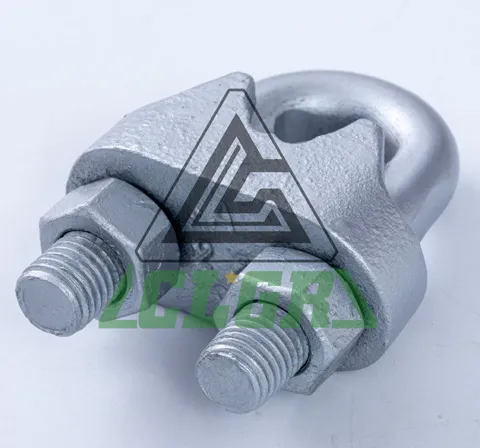

clgr din 741 malleable wire rope clips galvanized price

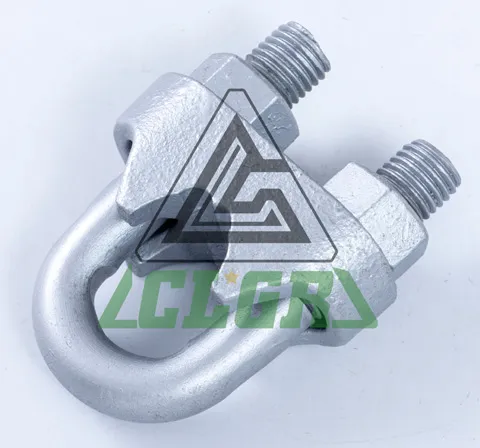

clgr din 741 malleable wire rope clips galvanized design

clgr din 741 malleable wire rope clips galvanized for sale

clgr din 741 malleable wire rope clips galvanized manufacturer

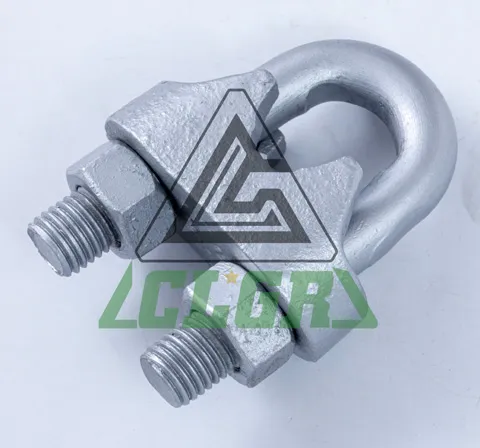

clgr din 741 malleable wire rope clips galvanized quality

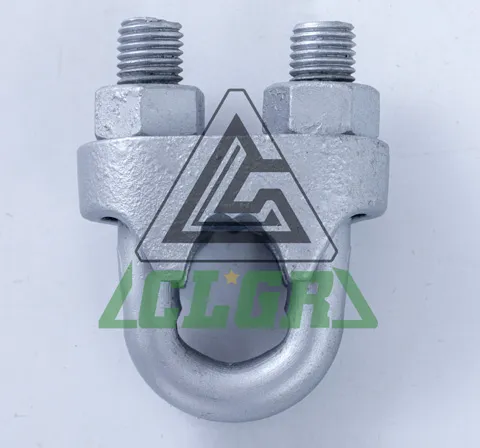

clgr din 741 malleable wire rope clips galvanized supplier

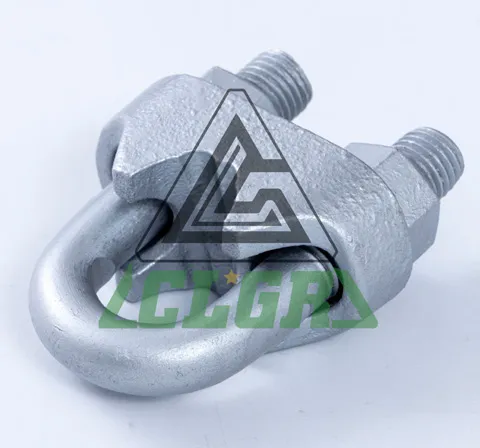

clgr din 741 malleable wire rope clips galvanized use

clgr din 741 malleable wire rope clips galvanized working principle

 

Overview of CLGR® DIN 741 Type Malleable Wire Rope Clip Galvanized

Brand	CLGR®
Standard	DIN 741
Material	Superior Mild Steel
Surface Finish	Hot dipped galvanized, electro galvanized, and self－colored
Packing	Carton, bag then in pallet. Special specifications and marks can be made according to customers' requirements.
Features	Forged U-bolts and Casted Bases
Marking	According to standard
Warning	Not for lifting

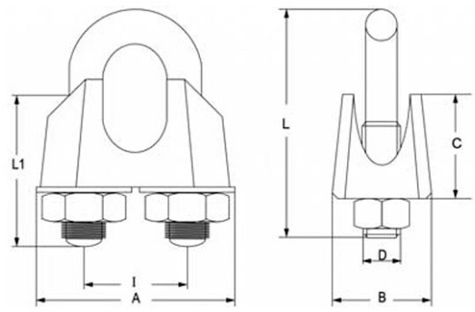

Specifications of CLGR® DIN 741 Type Malleable Wire Rope Clip Galvanized

Part No.	Rope Size	A	B	C	D	I	L	L1	Unit Weight
Part No.	mm								Kg
CR-741-C-03	3	21	10	10	M 4	9	20	12	0,008
CR-741-C-05	5	24	11	10	M 5	11	24	13	0,018
CR-741-C-06	6	26	12	11	M 5	13	28	15	0,020
CR-741-C-08	8	30	14	15	M 6	16	34	19	0,027
CR-741-C-10	10	37	20	19	M 8	20	42	22	0,065
CR-741-C-11	11	38	20	20	M 8	21	44	22	0,065
CR-741-C-12	12	44	25	23	M 10	25	55	30	0,105
CR-741-C-14	14	46	25	25	M 10	27	57	30	0,120
CR-741-C-16	16	52	28	28	M 12	30	63	33	0,165
CR-741-C-19	19	58	32	34	M 12	34	75	38	0,225
CR-741-C-22	22	64	35	35	M 14	38	85	44	0,270
CR-741-C-26	26	68	38	38	M 14	42	95	45	0,405
CR-741-C-30	30	80	40	45	M 16	50	110	50	0,500
CR-741-C-32	32	80	40	45	M 16	50	118	50	0,650
CR-741-C-34	34	88	45	52	M 16	54	120	55	0,720
CR-741-C-40	40	95	48	58	M 16	60	140	60	0,880
