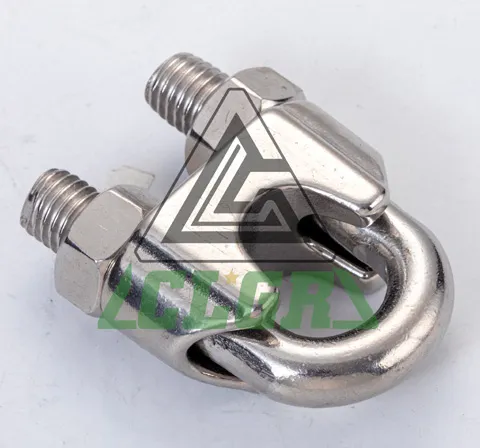

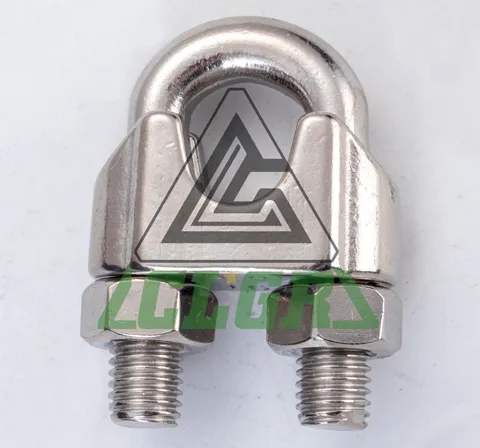

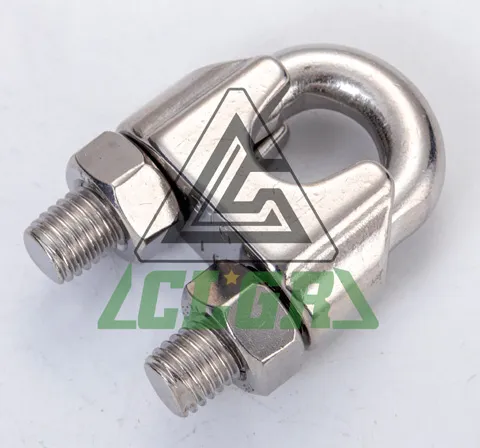

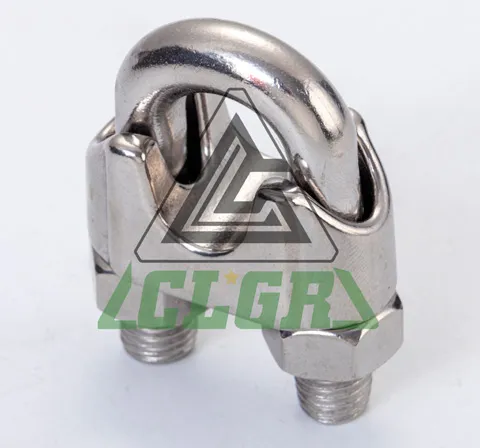

The Stainless Steel Wire Rope Clips DIN741, also known as Stainless Steel Cable Clamps or Wire Rope Grips.
Made of stainless steel construction ensures reliable performance in harsh marine environments, offering both functional efficiency and long-term weather resistance for various projects requiring precise cable alignment.
When installing wire rope clips, the first clip must be positioned directly after the thimble - or at a distance equal to twice the thimble diameter when using round thimbles. In any case the bow of the clip has to be on the unloaded part of the wire rope. Subsequent clips should be spaced at intervals no less than the width of the clip itself.
The required number of clips varies by rope diameter: three for 3-6mm, four for 8-19mm, five for 22-26mm, and six for 30-40mm ropes. These malleable clips serve as reliable alternatives where permanent crimping isn't feasible, with each unit clearly marked for size identification on the bridge exterior.
Brand | CLGR® |
Standard | DIN 741 |
Material | Stainless Steel |
Surface Finish | Highly Polished |
Packing | Carton, bag then in pallet. Special specifications and marks can be made according to customers' requirements. |
Marking | According to standard |
Warning | Not for lifting |

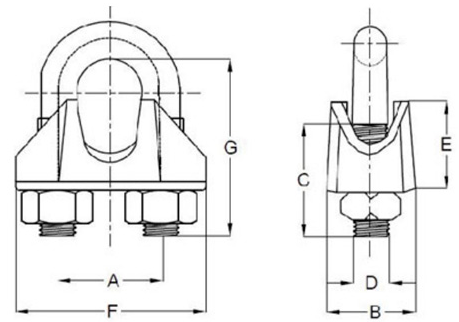

| Part No. | Wire φ | D1 | L | A | H |
| mm | |||||
| CRSSWRC74102 | 2 | M3 | 18 | 16 | 9,0 |
| CRSSWRC74103 | 3 | M4 | 20 | 21 | 9,5 |
| CRSSWRC74104 | 4 | M4 | 22 | 21 | 9,5 |
| CRSSWRC74105 | 5 | M5 | 24 | 23 | 10,0 |
| CRSSWRC74106 | 6 | M5 | 28 | 26 | 11,0 |
| CRSSWRC74108 | 8 | M6 | 34 | 30 | 15,0 |
| CRSSWRC74110 | 10 | M8 | 42 | 34 | 17,0 |
| CRSSWRC74111 | 11 | M8 | 45 | 38 | 20,0 |
| CRSSWRC74112 | 12 | M8 | 49 | 38 | 20,0 |
| CRSSWRC74113 | 13 | M10 | 55 | 42 | 21,0 |
| CRSSWRC74116 | 16 | M12 | 63 | 50 | 26,0 |
| CRSSWRC74119 | 19 | M12 | 75 | 54 | 30,0 |
| CRSSWRC74122 | 22 | M14 | 85 | 61 | 34,0 |
| CRSSWRC74125 | 25 | M14 | 95 | 65 | 37,0 |
