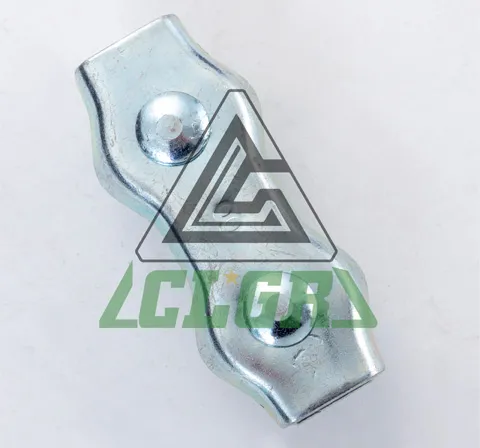

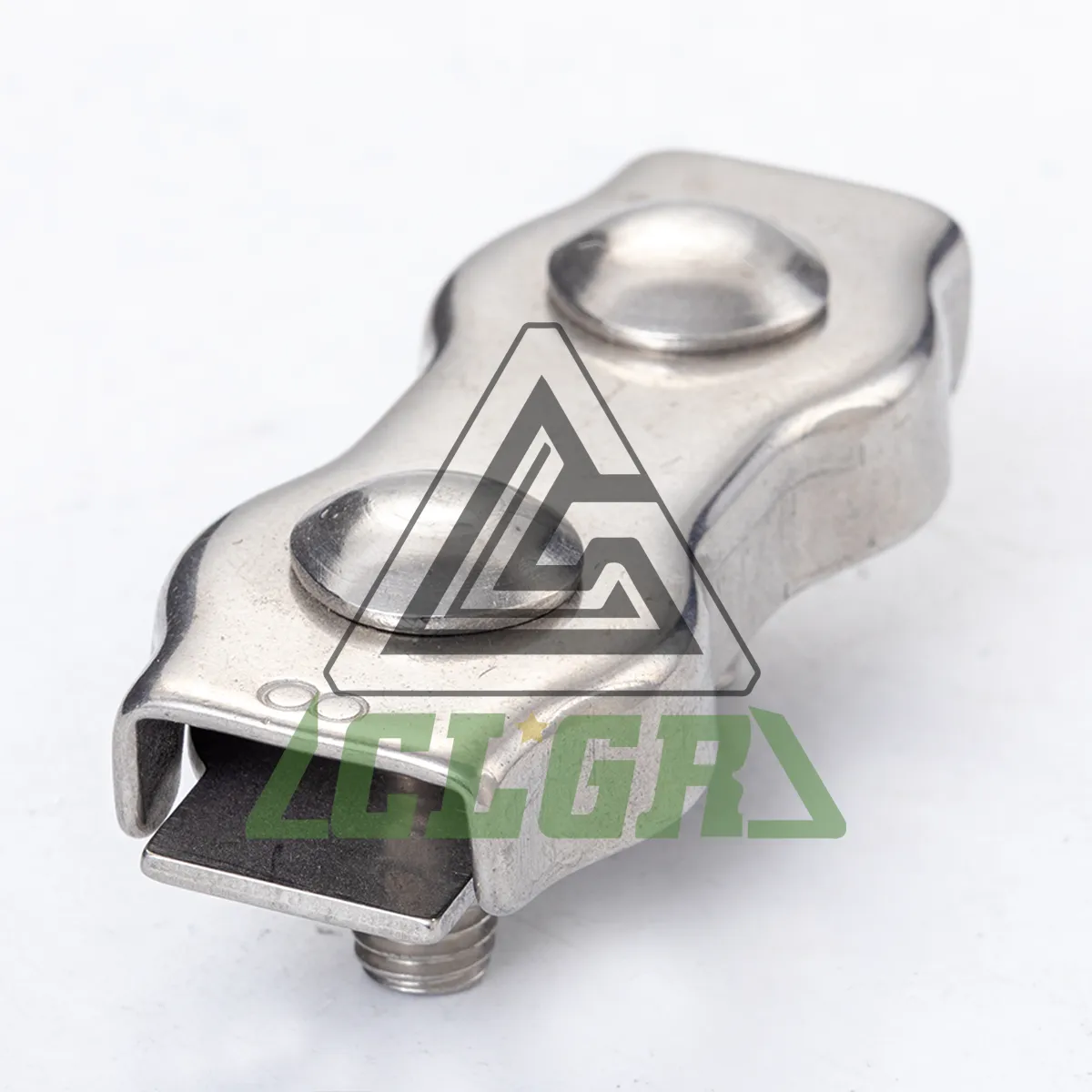

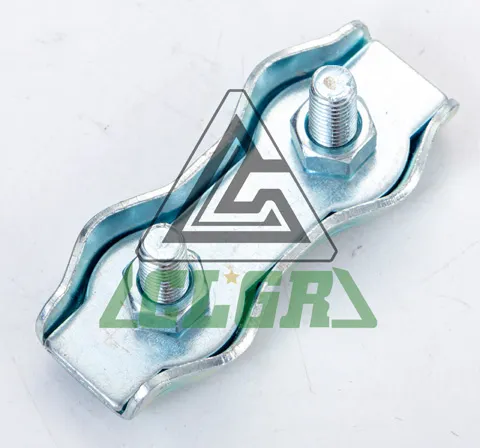

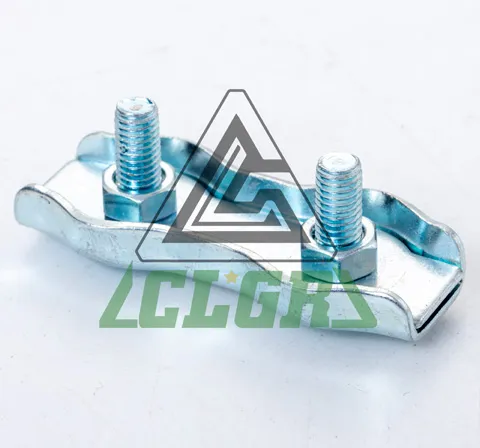

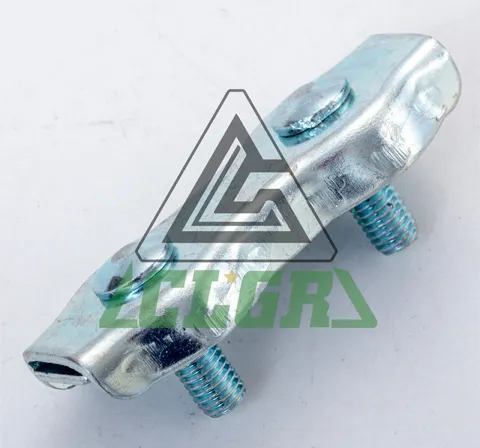

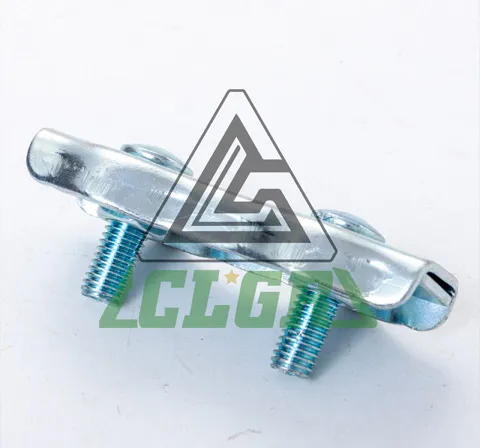

Stainless Steel Duplex Wire Rope Clips, also known as Stainless Steel Duplex wire rope clamps / grips, or Duplex 2-post Wire Rope Clip Cable Clamp, Stainless Steel Stamped Double Cable Clamp.
Specifically engineered for securing parallel cables in rigging systems, they're ideal for reinforcing structures or managing dual guy wires. The installation process is straightforward: simply loosen the hex nuts to open the clamp plate, position the wires, and retighten to create a secure connection.
Their durable stainless steel construction ensures reliable performance in harsh marine environments, offering both functional efficiency and long-term weather resistance for various rigging projects requiring precise cable alignment.
Brand | CLGR® |
Material | Stainless Steel AISI 304/316 |
Process | Stamped |
Finish | Highly Polished |
Design | Pressed of steel plate, loose screws and bolts |
Warning | Not for Lifting |

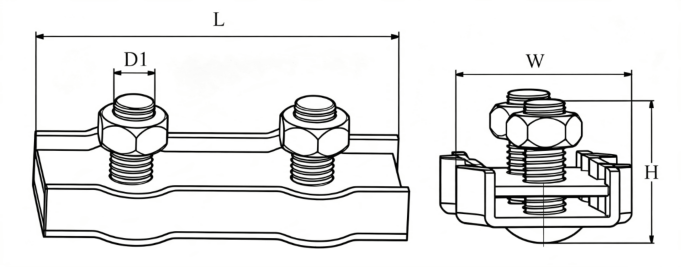

| Part No. | Dia. of Wire | D1 | L | H | W |
| (mm) | (mm) | (mm) | (mm) | (mm) | |
| CRSSSC02 | 2 | M4 | 30 | 14 | 12 |
| CRSSSC03 | 3 | M4 | 36 | 14 | 14 |
| CRSSSC04 | 4 | M5 | 40 | 19 | 18 |
| CRSSSC05 | 5 | M5 | 50 | 19 | 20 |
| CRSSSC06 | 6 | M6 | 60 | 23 | 24 |
| CRSSSC08 | 8 | M8 | 72 | 29 | 30 |
| CRSSSC10 | 10 | M10 | 84 | 33 | 35 |
