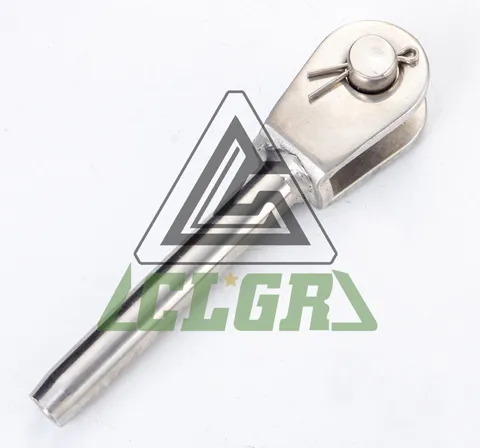

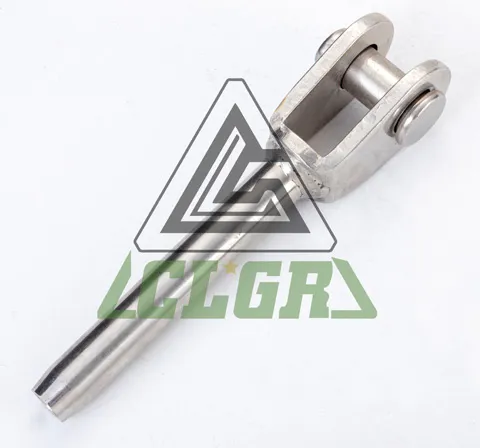

CLGR® Stainless Steel Swage Jaw Terminals

Name: CLGR® Stainless Steel Swage Jaw Terminals
Brand: CLGR®

CLGR® Stainless Steel Swage Jaw Terminals, also known as Stainless Steel Swage Jaw Fork Terminals and Open Swage Sockets.

These high-quality stainless steel Swage Fork Terminals are made from marine grade 316 stainless steel for maximum corrosion resistance and durability. The terminal excels in challenging outdoor and coastal environments, offering excellent protection against rust and weather damage.

Ideal for marine and architectural projects, it is easy to install and maintain and resistant to corrosion and wear. Its robust construction withstands heavy loads and extreme weather, ensuring reliability. Whether for a small project or a large-scale application, the Swage Fork Terminal offers exceptional performance and longevity.

To Get A Quote >

CLGR® Stainless Steel Swage Jaw Terminals

 

Overview of CLGR® Stainless Steel Swage Jaw Terminals

Brand	CLGR®
Material	Stainless Steel
Surface	Highly polished
Size	2mm, 2.5mm, 3mm, 3.2mm, 4mm, 5mm, 6mm, 7mm 8mm, 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm
Standard	Swage Fork Terminal Type
Application	Lifting, Lashing, Towing

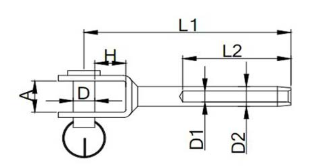

Specifications of CLGR® Stainless Steel Swage Jaw Terminals

Part No.	Wire (mm)	A (mm)	D (mm)	H (mm)	D1 (mm)	D2 (mm)	L2 (mm)	L1 (mm)	KG/100	B.L. (KG)
CRSSTERJO2	2	5.5	4	8	2.2	5.5	24	55	2.4	500
CRSSTERJ2.5	2.5	6.5	5	10	2.7	5.5	24	55	2.4	500
CRSSTERJO3-1	3	8	5	10	3.3	6.35	28	55	2.5	800
CRSSTERJO3-2	3	7.5	6	10	3.3	6.35	32	65	3	1300
CRSSTERJ3.2	3.2	7.5	5	9	3.5	6.35	38	65	2	800
CRSSTERJO4-1	4	9	6	10	4.3	7.5	37	65	4	1300
CRSSTERJO4-2	4	11	8	11	4.3	7.5	40	77	4.7	2350
CRSSTERJO5-1	5	10	8	12	5.3	9	42	70	6.5	1300
CRSSTERJO5-2	5	12	9	14	5.3	9	57	88	7.4	2350
CRSSTERJ06-1	6	12	10	14	6.3	12.6	51	85	13.5	2350
CRSSTERJ06-2	6	14	12	20	6.4	12.6	63	106	16	4700
CRSSTERJO7	7	15	12	22	7.4	14.2	70	116	18	5100
CRSSTERJ08	8	17	16	26	8.4	16	85	145	40	7600
CRSSTERJ10	10	20	19	30	10.5	18	90	150	49	9800
CRSSTERJ12	12	23	19	35	12.6	20	105	195	64	13000
CRSSTERJ14	14	30	22	46.5	14.7	25	140	232	117	17000
CRSSTERJ16	16	30	25	49	16.9	28	160	264	154	24000
CRSSTERJ19	19	34	28	54	20	34.5	200	323	412	27000
CRSSTERJ22	22	40	32	62	23.2	40.5	230	350	570	31000
CRSSTERJ26	26	44	36	70	27.5	46	280	430	710	43000
