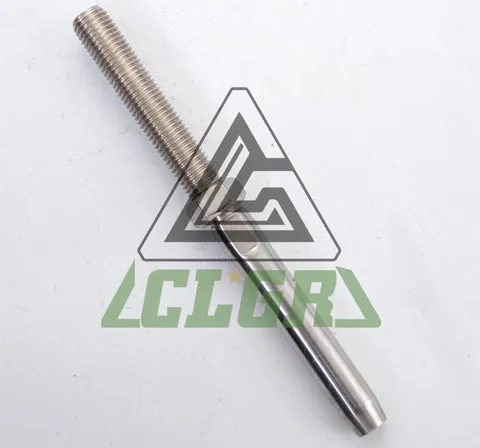

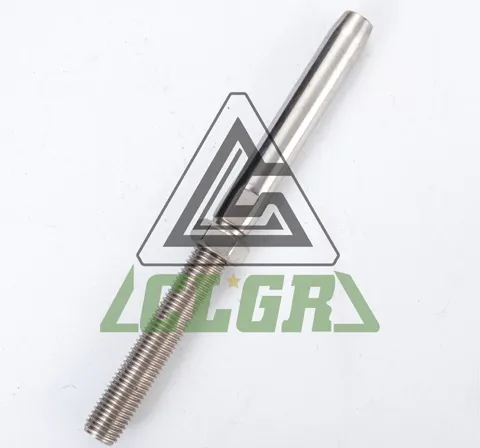

CLGR® Stainless Steel Swage Stud Terminals

Name: CLGR® Stainless Steel Swage Stud Terminals
Brand: CLGR®

CLGR® Stainless Steel Swage Stud Terminal, also known as Wire Rope Threaded Stud, Swage Threaded Stud, Wire Rope Threaded Cable Ends and Stainless Steel Swage Stud Threaded Terminal.

The Stainless Swage Terminals are manufactured from high quality forged AISI 316 marine grade stainless steel and are specifically designed to help adjust the tension and length of stainless-steel wire rope, balustrade systems and other tensioning methods.

Note: Swage Terminals must be swaged to wire rope with an appropriate swaging press.

To Get A Quote >

CLGR® Stainless Steel Swage Stud Terminals

 

Overview of CLGR® Stainless Steel Swage Stud Terminals

Brand	CLGR®
Material	Stainless Steel
Technical Notes	European Type
Size	2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm
Processing	Stamping / Machining
Finish	Highly Polishing
Warning	Not rated for lifting

Specifications of CLGR® Stainless Steel Swage Stud Terminals

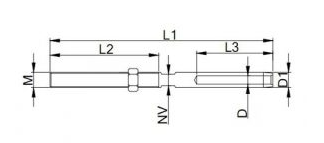

Part No.	Size (mm)	Wire (mm)	D (mm)	D1 (mm)	L3 (mm)	L2 (mm)	L1 (mm)	NV (mm)	KG/100	BL (KG)
CRSSSTERTT0402	M4	2	2.2	4.8	24	38	73	3	0.6	50
CRSSSTERTT0502	M5	2	2.2	5.5	32	40	86	4	1.3	800
CRSSSTERTT0525	M5	2.5	2.7	5.5	32	40	86	4	1.3	800
CRSSSTERTT0532	M5	3.2	3.5	6.35	38	40	90	5	1.6	800
CRSSSTERTT0603	M6	3	3.3	6.35	39	48	100	5	2	1250
CRSSSTERTT0632	M6	3.2	3.5	6.35	39	48	110	5	2	1250
CRSSSTERTT0604	M6	4	4.3	7.5	39	48	100	6	2.5	1250
CRSSSTERTT0804	M8	4	4.3	7.5	45	57	117	6	3.8	2350
CRSSSTERTT0805	M8	5	5.3	9	52	57	124	7	4.6	2350
CRSSSTERTT1005	M10	5	5.3	9	52	63	130	7	6.5	3500
CRSSSTERTT1006	M10	6	6.4	12.6	64	63	145	10	10.3	3500
CRSSSTERTT1206	M12	6	6.4	12.6	64	80	162	10	13.5	5100
CRSSSTERTT1208	M12	8	8.4	16	80	80	180	14	19	5100
CRSSSTERTT1407	M14	7	7.4	14.2	70	90	180	12	20	5900
CRSSSTERTT1608	M16	8	8.4	16	80	100	200	14	28	8000
CRSSSTERTT1610	M16	10	10.5	18	90	100	210	15	32	8000
CRSSSTERTT2010	M20	10	10.5	18	90	119	230	15	46	13000
CRSSSTERTT2012	M20	12	12.6	20	105	120	245	17	51	13000
CRSSSTERTT2214	M22	14	14.7	25	140	140	308	23	87	17000
CRSSSTERTT2416	M24	16	16.9	28	160	170	363	25	125	23000
CRSSSTERTT2719	M27	19	20	34.5	200	180	425	30	209	25500
CRSSSTERTT3022	M30	22	23.2	40.5	230	200	480	36	314	31000
CRSSSTERTT3626	M36	26	27.5	46	280	220	550	41	470	43000
