CLGR® Regular Wood Block with Swivel Eye Triple Sheave

Name: CLGR® Regular Wood Block with Swivel Eye Triple Sheave
Brand: CLGR®

CLGR® Regular Wood Block with Swivel Eye Triple Sheave, also known as Regular Wooden Pulley Block - Swivel Eye, Regular Wood Shell Block.

Regular Wood Block Triple Sheave is made of wooden shell and hot dipped galvanized steel parts to protect against corrosion.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

If you want to know further product information, please feel free to contact us at your convenience.

To Get A Quote >

clgr regular wood block with swivel eye triple sheave china

clgr regular wood block with swivel eye triple sheave factory

clgr regular wood block with swivel eye triple sheave suppliers

Overview of CLGR® Regular Wood Block with Swivel Eye Triple Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Hot Dipped Galvanized
Sheave	Triple Sheave
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block with Swivel Eye Triple Sheave

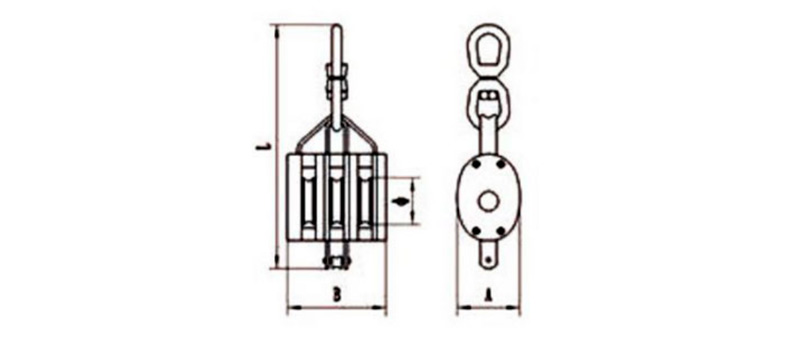

CLGR® Regular Wood Block with Swivel Eye Triple Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBSET-00	3″	1200	3/8″	45	246.5	61.5	104.5	1.95
CRWBSET-01	4″	1800	1/2″	57	296	77	120.5	3
CRWBSET-02	5″	2400	5/8″	76	371	99	150	3.8
CRWBSET-03	6″	3200	3/4″	90	404.5	118	175.5	6.1
CRWBSET-04	8″	4800	1″	121	529	138	187	12.5
CRWBSET-05	10″	8000	11/8″	158	611	190	244	19
CRWBSET-06	12″	10000	11/4″	196	693	246	261	32.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
