CLGR® Heavy Duty Forged D Ring is designed to be welded on and creates a strong and durable tie-down point anywhere on your trailer.
Also called Heavy-Duty Forged Lashing Ring, Weldable D-Ring with Mounting Clip, and D-Ring/Weld on Pivot Link.
It can function as a reliable anchoring point that is able to support the rest of the tie-down assembly.
They work seamlessly with diverse tie-down options such as tie down chains and find application across numerous scenarios. They are particularly prominent in equipment transport, including farm machinery, motorcycles, snowmobiles, and ATV/UTV hauling.
| Brand | CLGR® |
| Material | Forged Steel |
| Mount Type | Lashing Ring Weld On |
| Processing | Drop Forged |
| Finish | Zinc plated, Hot dipped galvanized, Self-colored |
| Size | 1/2″, 5/8″, 3/4″, 1″ |
| Applications | Commonly used for securing heavy equipment, tying down cargo, and more. |
| Note | Not Rated for Overhead Lifting. |

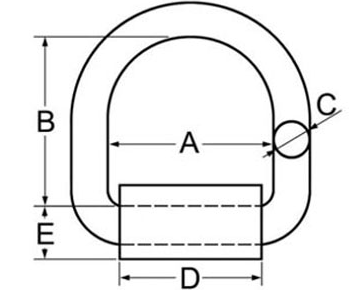

Part No. | Size | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Weight (lbs.) | Breaking Strength (lbs.) |
CR-WO-DR-F-1/2 | 1/2″ | 2.25 | 2.5 | 0.5 | 1.76 | 0.61 | 0.94 | 12000 |
CR-WO-DR-F-5/8 | 5/8″ | 3 | 3 | 0.63 | 2.48 | 0.92 | 1.87 | 18000 |
CR-WO-DR-F-3/4 | 3/4″ | 3 | 3 | 0.75 | 2.48 | 1 | 2.7 | 26500 |
CR-WO-DR-F-1 | 1″ | 3 | 3 | 1 | 2.52 | 1.21 | 4.21 | 47000 |
