CLGR® Clevis Rod End - The China Supplier

Name: CLGR® Clevis Rod End - The China Supplier
Brand: CLGR®

CLGR® Clevis Rod End, also known as clevis yoke ends, and clevis end fittings, adjustable clevis ends, and adjustable yoke ends.

Crafted from drop-forged super carbon steel. Available in 2", 2-1/2", and 3" sizes with a self-colored or hot-dip galvanized finish.

These U-shaped fittings come with female threads and are typically installed on the end of a threaded rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.

To Get A Quote >

Overview of CLGR® Clevis Rod End

Brand	CLGR®
Material	Super Carbon Steel
Processing	Drop Forged
Finish	Self-colored,Hot dipped galvanized
Size	2″, 2-1/2″, 3″
Country of Origin	China

Specifications of CLGR® Clevis Rod End

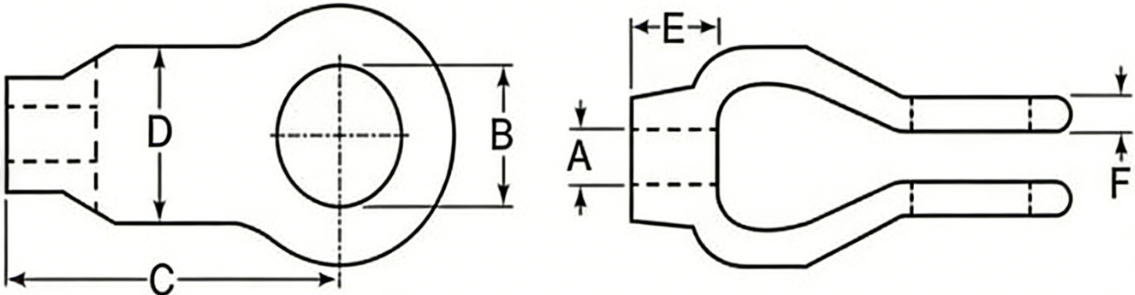

drawing-of-clgr-clevis-rod-end-china-supplier

Part No.	Size	Max tap (a)	Max pin dia. (b)	Length (d)	Width (d)	Thread depth (e)	Length (f)	Rated capacity	Weight/pc. (approx.)
CRFCE002	2	5/8″	3/4″	4-1/2”	1-1/16″	5/8″	5/16″	3,500 lbs.	1.00 lbs.
CRFCE025	2-1/2	7/8″	1-1/2″	5-1/8″	1-1/4″	1-1/8″	5/16″	7,500 lbs.	2.50 lbs.
CRFCE003	3	1-3/8″	1-3/4-	6-5/16″	1-1/2″	1-5/16″	1/2″	15,000 lbs.	4.80 lbs.

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
