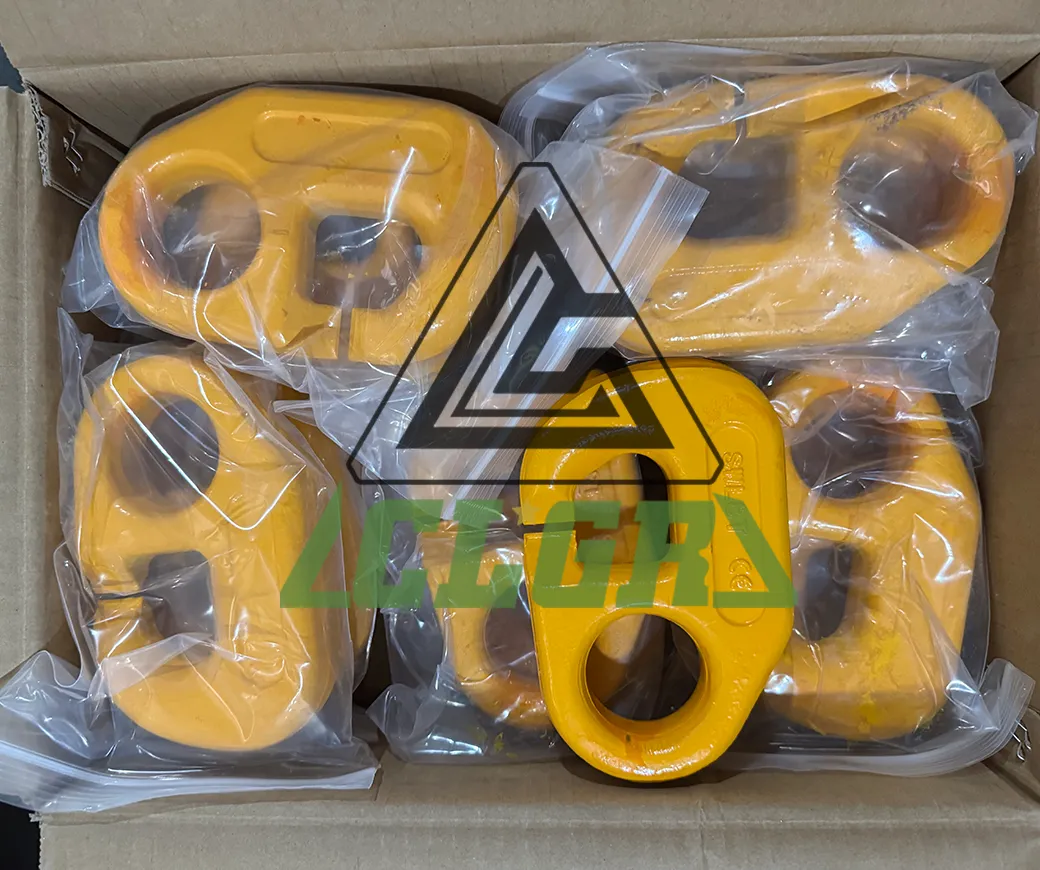

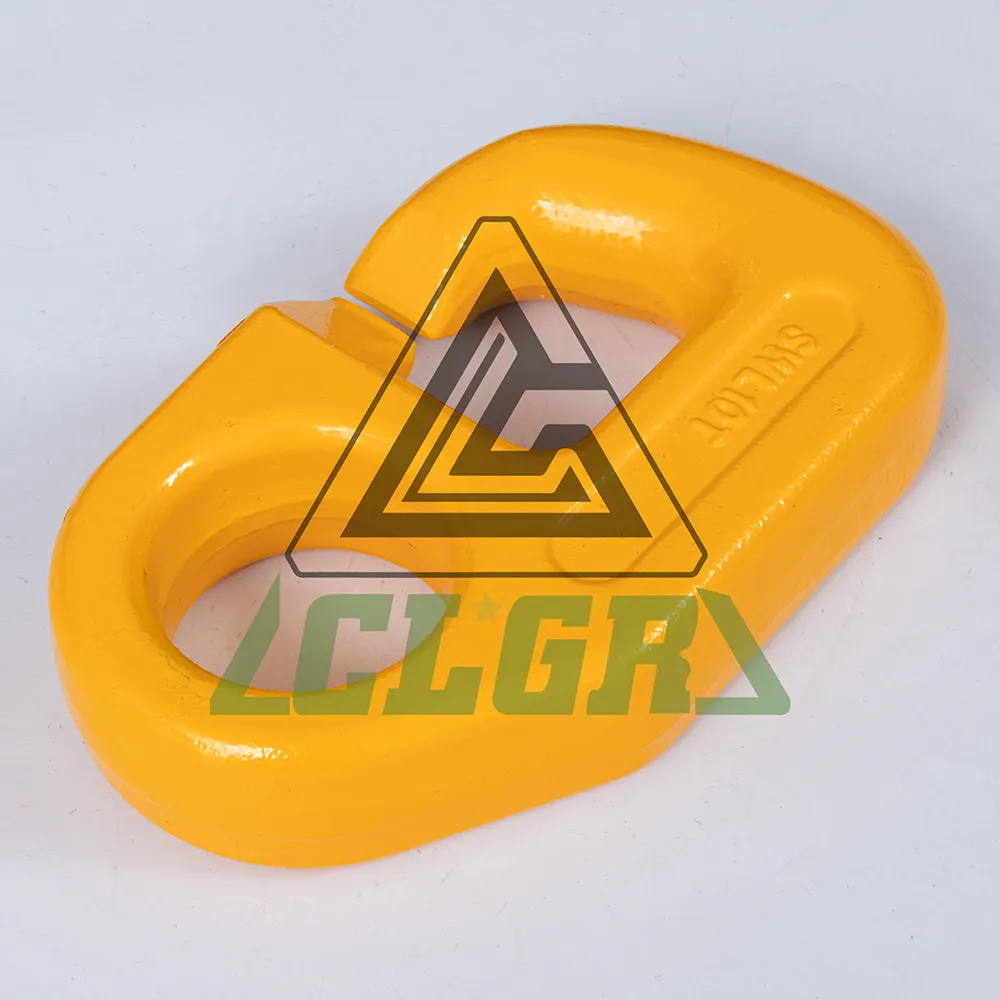

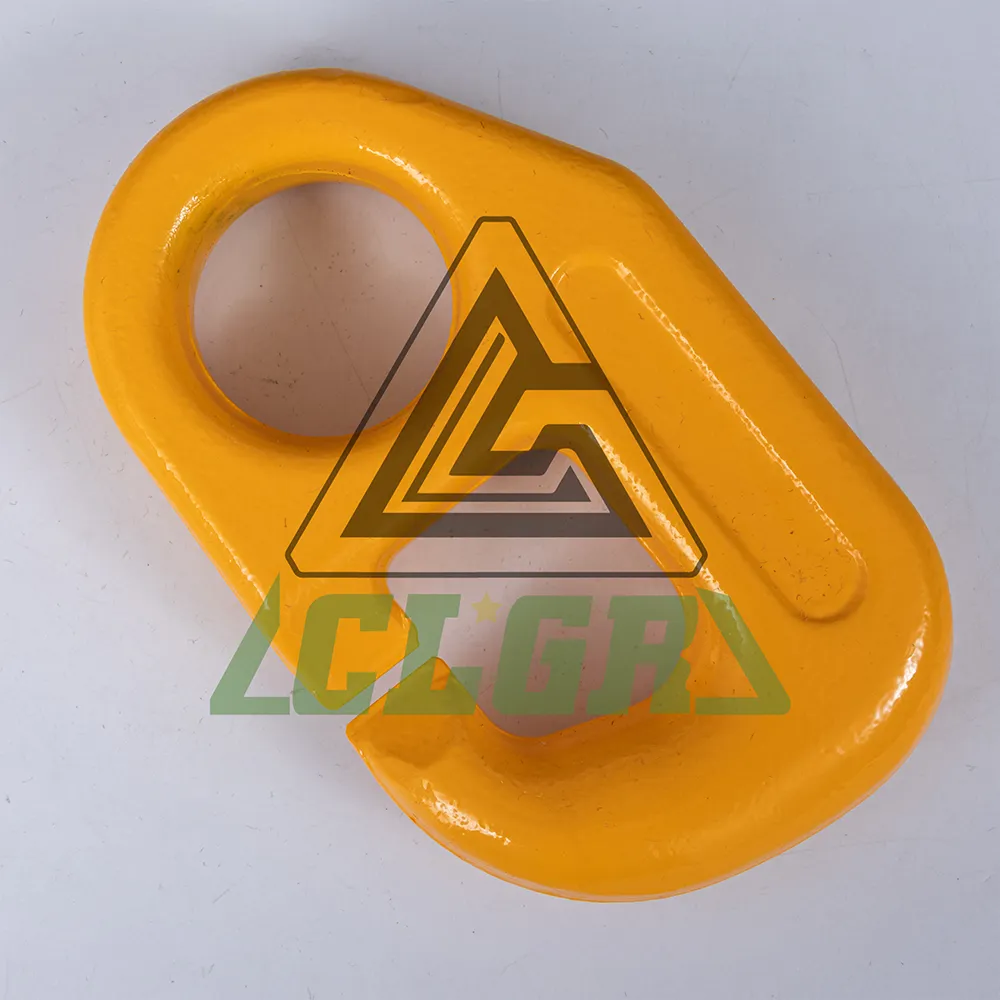

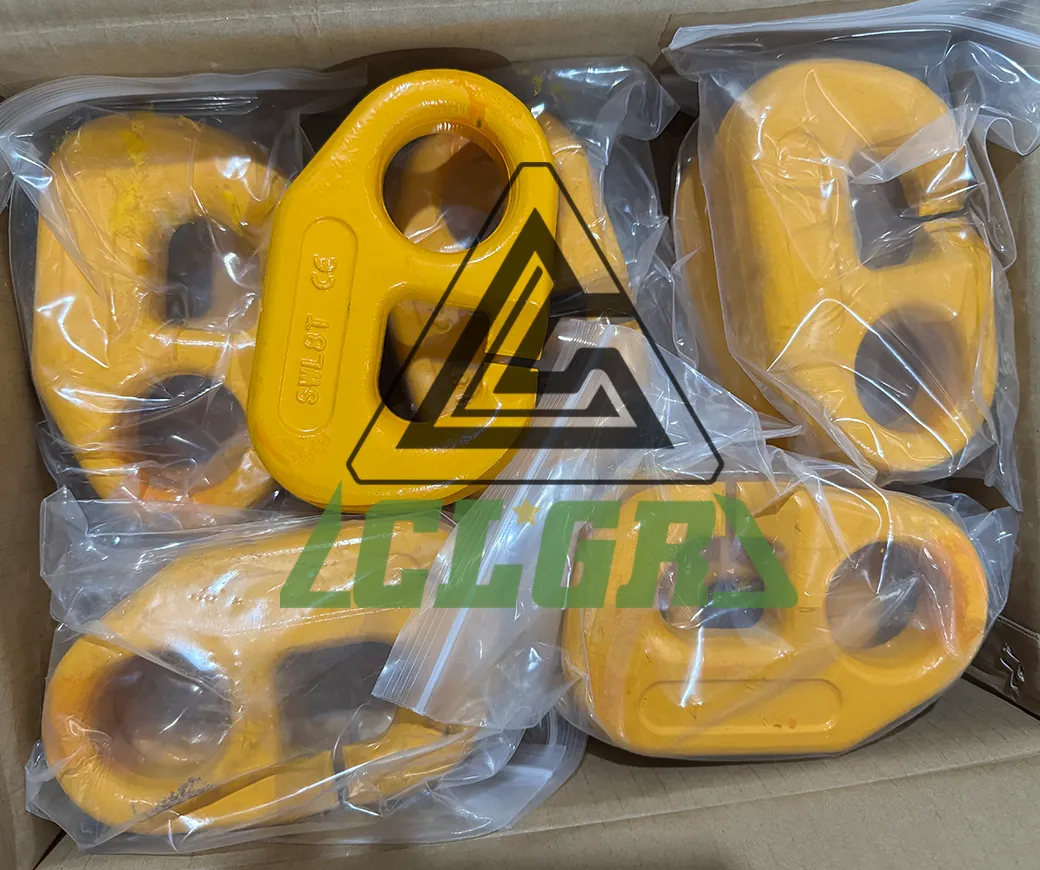

CLGR® G80 Alloy Viking Split Link, also known as G80 Viking link DV, G hook with split link, G80 DV Hook, Viking Sister Clips High Tensile Steel.
G80 viking split link is forged from superior alloy steel with quenched and tempered, ensuring exceptional durability and load-bearing capacity.
To ensure the highest quality and reliability, we conduct strict sampling and breakage testing for each batch of products, along with fatigue testing up to 20,000 cycles. Additionally, 100% magnetic particle inspection is performed to detect any surface or near-surface flaws, guaranteeing the durability and safety of every product.
| Brand | CLGR® |
Technical Notes | European Type |
Material | Alloy Steel |
Δ Note | Ultimate load is 5 times the Working Load Limit |
Processing | Forged / Quenched and Tempered. |
Finish | Powder Coated |
WLL | 1.5T, 3T, 5T, 8T DV15, DV30, DV50, DV80 |
Tips | Color Code: Customized according to customers' requirements. |
Part No. | Weight (kg) | Working Load Limit/t | Breaking Load/t | N±1 | B±1.5 | E±0.1 | H±1 | L±1.2 |
8CRDV15 | 0.5 | 1.5 | 7.5 | 28 | 61 | 3 | 35 | 102 |
8CRDV30 | 0.73 | 3 | 15 | 30 | 72 | 3 | 41 | 119 |
8CRDV50 | 1.2 | 5 | 25 | 35 | 84.5 | 3 | 42 | 137 |
8CRDV80 | 1.6 | 8 | 40 | 42 | 96 | 3 | 42 | 153 |
