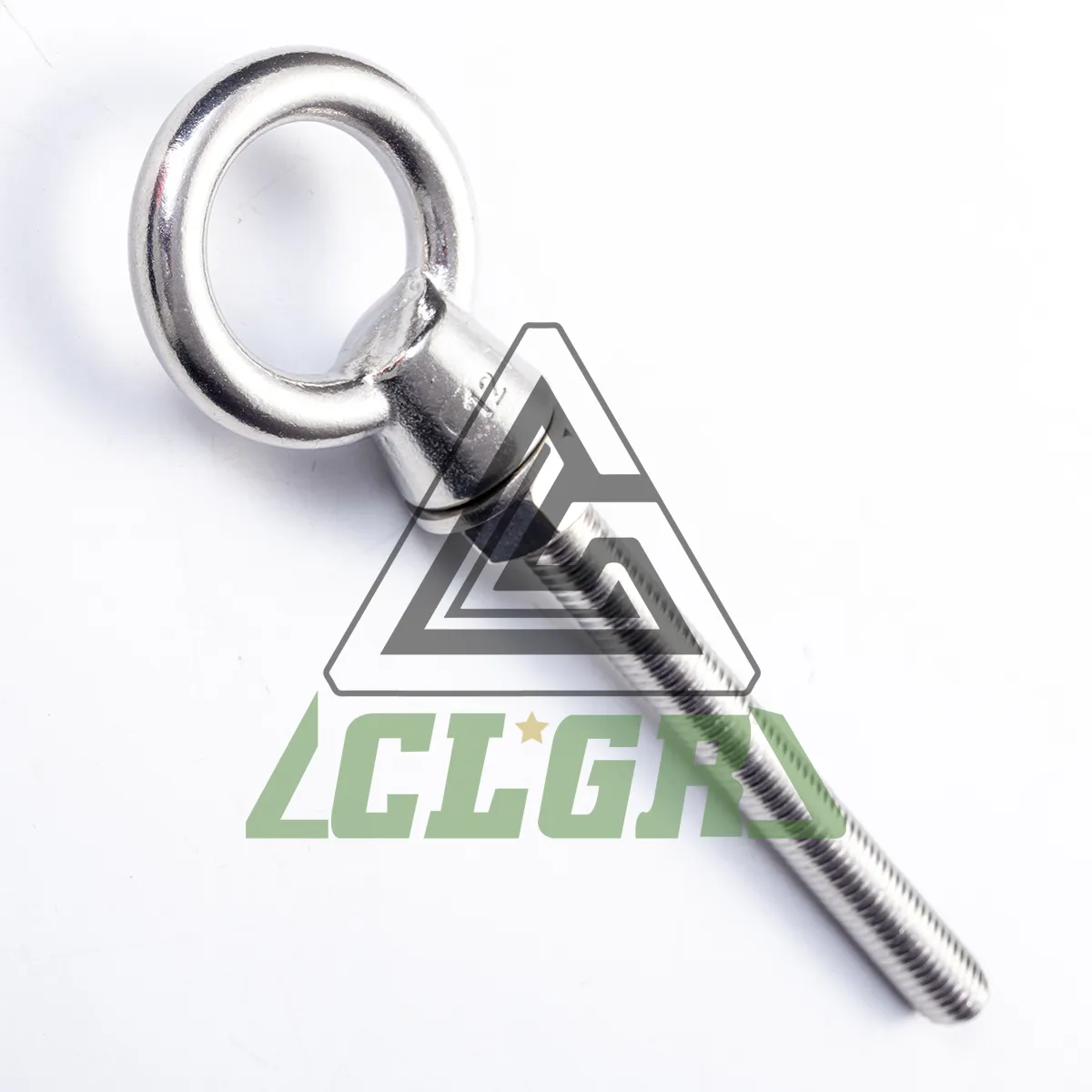

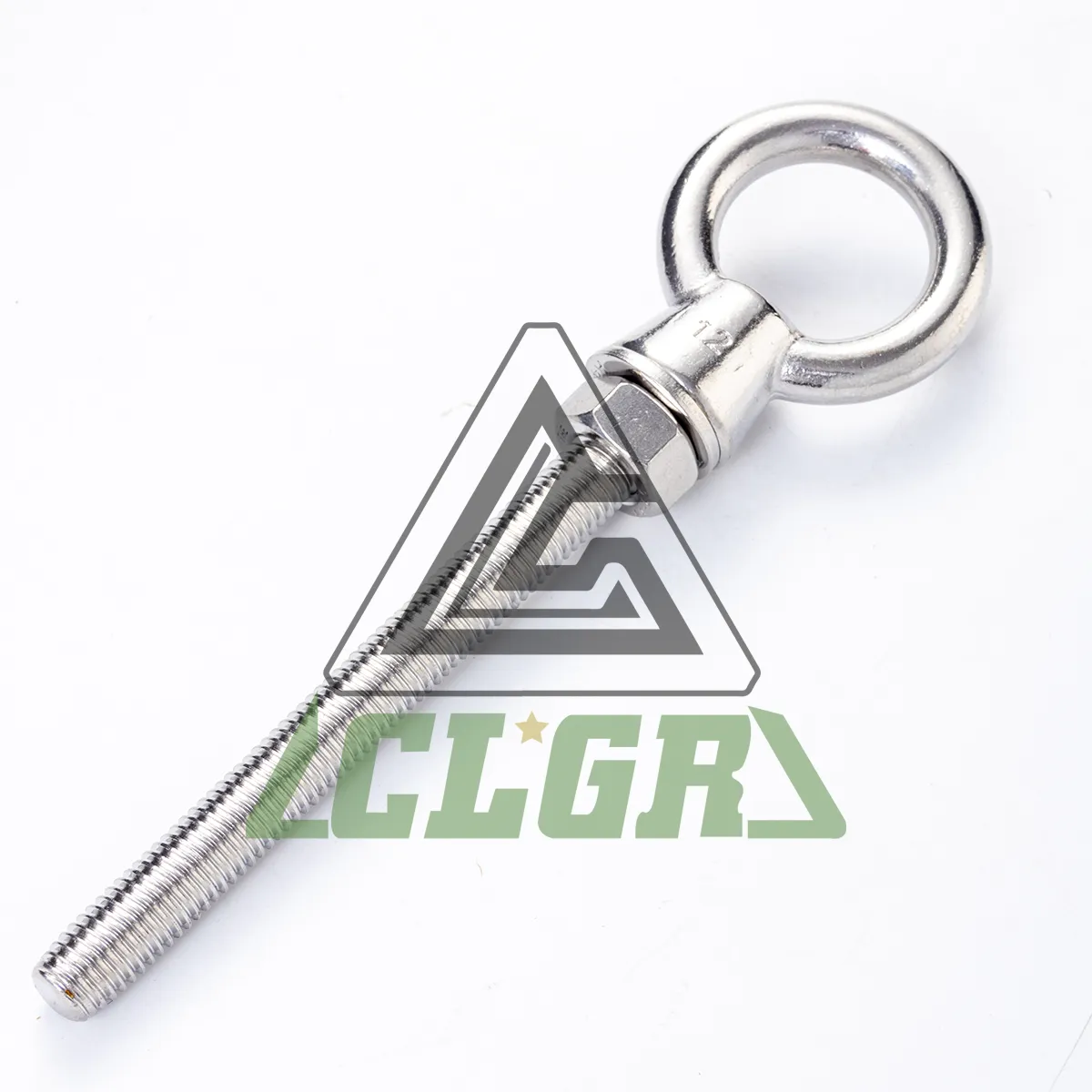

CLGR® Stainless Steel Long Shank Eye Bolt, also known as Long Shank Collared Eye Bolts With Nut And Washer, Shoulder Eye Bolt, which is fitted with Nut and Washer, with a metric coarse right hand thread from 6mm to 20mm diameter.
Made from marine grade stainless steel 304/316, cast and highly polished stainless finish, has highly corrosion resistance.
Long shank shoulder eye bolt can be used for either straight line or angular pulls.
Each bolt comes complete with a nut and washer, and custom shank lengths are available.
Available thread size in M6, M8, M10, M12, M16, M20.
Brand | CLGR® |
Material | Stainless Steel 304/316 long shank eye bolt |
Processing | Hot Upsetting |
Finish | High Polished |
Size | M6, M8, M10, M12, M16, M20 Long Shank Eye Bolt |
Fitting | Including eye bolts, nut and washer. |
Notes | Custom Thread length available. |
Part No. | D1 | L | D | B | Min.BL |
(mm) | (KN) | ||||
CRSSEBLSM01 | M6 | 40 | 5 | 15 | 8.2 |
CRSSEBLSM02 | M6 | 50 | 5 | 15 | 8.2 |
CRSSEBLSM03 | M6 | 60 | 5 | 15 | 8.2 |
CRSSEBLSM04 | M6 | 80 | 5 | 15 | 8.2 |
CRSSEBLSM05 | M6 | 110 | 5 | 15 | 8.2 |
CRSSEBLSM06 | M8 | 60 | 6 | 20 | 14.5 |
CRSSEBLSM07 | M8 | 80 | 6 | 20 | 14.5 |
CRSSEBLSM08 | M8 | 100 | 6 | 20 | 14.5 |
CRSSEBLSM09 | M8 | 110 | 6 | 20 | 14.5 |
CRSSEBLSM10 | M8 | 200 | 6 | 20 | 14.5 |
CRSSEBLSM11 | M10 | 100 | 8 | 25 | 22.6 |
CRSSEBLSM12 | M10 | 200 | 8 | 25 | 22.6 |
CRSSEBLSM13 | M10 | 220 | 8 | 25 | 22.6 |
CRSSEBLSM14 | M12 | 120 | 10 | 30 | 32.6 |
CRSSEBLSM15 | M12 | 140 | 10 | 30 | 32.6 |
CRSSEBLSM16 | M12 | 160 | 10 | 30 | 32.6 |
CRSSEBLSM17 | M12 | 200 | 10 | 30 | 32.6 |
CRSSEBLSM18 | M16 | 100 | 12 | 35 | 57.9 |
CRSSEBLSM19 | M16 | 130 | 12 | 35 | 57.9 |
CRSSEBLSM20 | M16 | 150 | 12 | 35 | 57.9 |
CRSSEBLSM21 | M20 | 150 | 15 | 40 | 90.4 |
