CLGR® Wire Rope Sling Flemish Eye

Name: CLGR® Wire Rope Sling Flemish Eye
Brand: CLGR®

CLGR® Wire Rope Sling Flemish Eye, also known as Flemish Eye-To-Eye Wire Rope Sling, Flemish Eye Steel Sleeve Slings, and 1-Leg Eye and Eye Flemish Loop Wire Rope Sling.

The Flemish eye is a highly reliable method for forming a secure wire rope loop at the rope end, perfectly suited for lifting and towing applications.

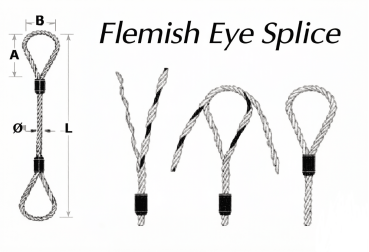

It is an eye termination where the rope end is split in two parts of three and four strands each, which are laid back together again in the opposite direction, to form a soft eye, which can be provided on demand with various types of thimbles.

Swaging the Flemish Eye with its heavy conical steel ferrule offers the best solution against abrasion and distortion of the termination.

Combined with its steel core rope construction and steel termination, Flemish Eye manufactured slings and steel wire ropes can be set into service in a potential highly temperatured environment.

To Get A Quote >

Overview of CLGR® Wire Rope Sling Flemish Eye

Brand	CLGR®
Standard	EN13414
Material	Super Mild Steel
Safety Factor	5:1
Rope Diameter (inch)	10”, 12”, 14”, 16”, 18”, 20”, 24”, 26”, 28”, 30”, 32”, 34”, 36”, 38”, 40”, 42” 45”, 50”, 52”, 56”, 60”, 65”, 70”, 75”, 80”, 85”, 90”, 95”, 100”, 102”, 105”
Country of Origin	China

Specifications of CLGR® Wire Rope Sling Flemish Eye

Part No.	Rope Diameter inch	WLL(ton)						Eye Size (mm)
Part No.	Rope Diameter inch	Vertical	choker	Basket Hitches				A	B
CRWRSFE10	10	1.2	0.9	2.4	2	1.7	1.2	200	100
CRWRSFE12	12	1.8	1.4	3.6	3.1	2.5	1.8	240	120
CRWRSFE14	14	2.3	1.8	4.6	4	3.2	2.3	280	140
CRWRSFE16	16	3	2	6	5	3	3	320	160
CRWRSFE18	18	4	3	8	7	4	4	360	180
CRWRSFE20	20	5	4	10	8	5	5	400	200
CRWRSFE22	22	6	5	12	10	6	6	440	220
CRWRSFE24	24	7	6	14	12	7	7	480	240
CRWRSFE26	26	8	7	16	14	8	8	520	260
CRWRSFE28	28	9	8	18	16	9	9	560	280
CRWRSFE30	30	11	9	22	19	11	11	600	300
CRWRSFE32	32	12	10	24	21	12	12	640	320
CRWRSFE34	34	14	11	28	24	14	14	680	340
CRWRSFE36	36	15	12	30	27	15	15	720	360
CRWRSFE38	38	17	14	34	30	17	17	760	380
CRWRSFE40	40	19	15	38	33	19	19	800	400
CRWRSFE42	42	21	17	42	37	21	21	840	420
CRWRSFE45	45	24	19	48	42	24	24	900	450
CRWRSFE50	50	30	24	60	52	30	30	1000	500
CRWRSFE52	52	32	26	64	56	32	32	1400	520
CRWRSFE56	56	37	30	74	65	37	37	1120	560
CRWRSFE60	60	43	34	86	75	43	43	1200	600
CRWRSFE65	65	50	40	100	87	50	50	1300	650
CRWRSFE70	70	58	47	116	101	58	58	1400	700
CRWRSFE75	75	67	53	134	116	67	67	1500	750
CRWRSFE80	80	76	61	152	132	76	76	1600	800
CRWRSFE85	85	86	69	172	149	86	86	1700	850
CRWRSFE90	90	96	77	192	167	96	96	1800	900
CRWRSFE95	95	107	86	214	186	107	107	1900	950
CRWRSFE100	100	119	95	238	207	119	119	2000	1000
CRWRSFE102	102	120	96	240	208	120	120	2040	1020
CRWRSFE105	105	123	99	246	214	123	123	2100	1050
