CLGR® Grade 80 Clevis C Hook

Name: CLGR® Grade 80 Clevis C Hook
Brand: CLGR®

CLGR® Grade 80 Clevis C Hook, also known as Grade 80 C Hook.

Forged from alloy steel and conforming to EN 1677-4, the clevis C hook maintains its full working load limit within a temperature range of -40°C to 200°C. It is proof-tested to 2.5 times its working load limit (4:1 safety factor) and fatigue-rated for 20,000 cycles.

Available in green, yellow, or orange for identification and customization.

To Get A Quote >

CLGR® Grade 80 Clevis C Hook China Supplier

CLGR® Grade 80 Clevis C Hook China Manufacturer

CLGR® Grade 80 Clevis C Hook China Factory

 

Overview of CLGR® Grade 80 Clevis C Hook

Brand	CLGR®
Standard	EN1677
Material	Super Alloy steel
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm, 16mm
Tips	Suitable for use with g80 chain

Specifications of CLGR® Grade 80 Clevis C Hook

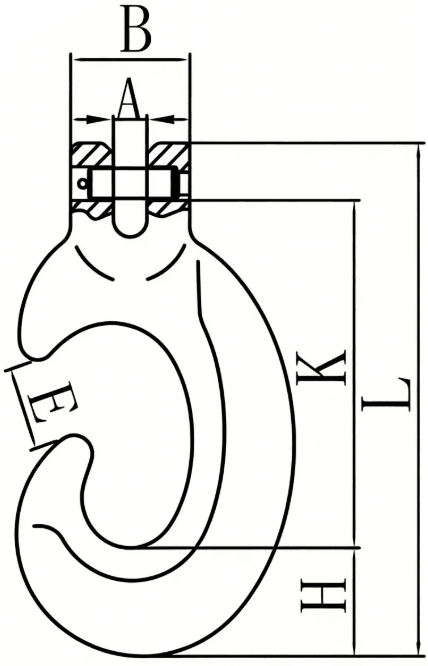

drawing-of-clgr-grade-80-clevis-c-hook-china-supplier

Part No.	Size (mm)	N.W. (kg)	WLL (T)	B.L. (T)	Dimension (mm)
Part No.	Size (mm)	N.W. (kg)	WLL (T)	B.L. (T)	A±0.5	E±1	B±1.5	H±1	K±2	L±2.5
8CRCCH7/8	7/8	0.57	2	8	9.5	20	35	28	90	136
8CRCCH10	10	1.4	3.15	12.6	13	29.5	46	39.5	127	189
8CRCCH13	13	3	5.3	21.2	16.5	39.5	59	52	166.5	246
8CRCCH16	16	5.4	8	32	18.5	46.5	72	59	206	298

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
