CLGR® Grade 80 Choker Glider with Keyhole

Name: CLGR® Grade 80 Choker Glider with Keyhole
Brand: CLGR®

CLGR® Grade 80 Choker Glider with Keyhole, also known as Rope slider swivel, Grade 80 chain wire rope connector assmebly, Rope slider swivel.

Forged from high-strength Grade 80 alloy steel, this choker glider with keyhole is designed for heavy-duty lifting and choker sling applications.

It features reliable strength, stable performance, and easy operation, suitable for construction, rigging and industrial lifting use.

To Get A Quote >

CLGR® G80 Chain Rope Connector Keyhole Swivel Slider HM Type

CLGR® G80 Chain Rope Connector Keyhole Swivel Slider HM Type China Manufacturer

CLGR® G80 Chain Rope Connector Keyhole Swivel Slider HM Type China Supplier

Overview of CLGR® Grade 80 Choker Glider with Keyhole

Brand	CLGR®
Standard	Chain wire rope connector meet the standard European Type (EN1677)
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged + Quenched and Tempered
Finish	Powder Coated
WLL	2T, 3.15T
Tips	Color Code can be Customized according to customers' requirements
Country of Origin	China

Specifications of CLGR® Grade 80 Choker Glider with Keyhole

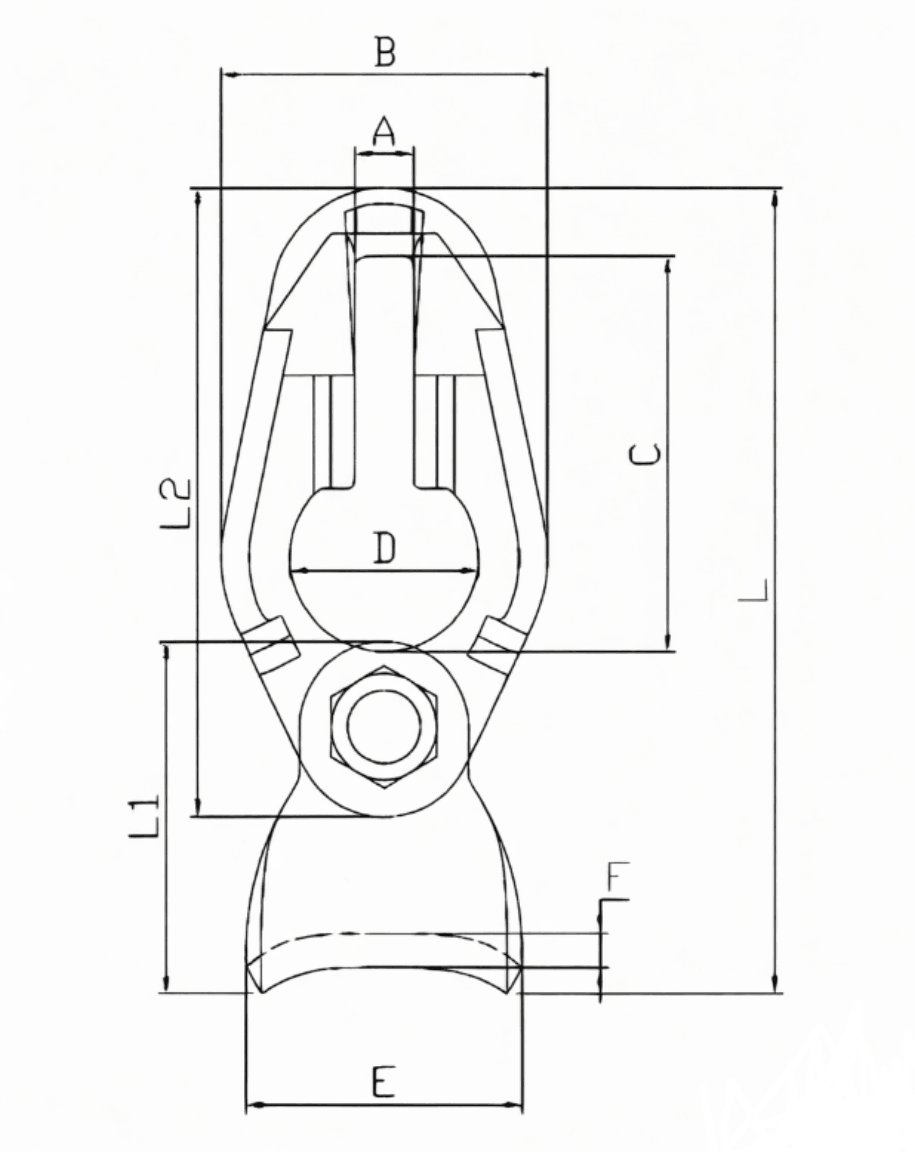

Drawing of CLGR® Grade 80 Choker Glider with Keyhole China Supplier

Part No.

W.L.L.

(t)

B.L.

(t)

A±0.5

(mm)

B±0.5

(mm)

C±1

(mm)

D±1

(mm)

L1±2.5

(mm)

L2±1.5

(mm)

L±3.5

(mm)

Weight

each (Kg)

CR8CRCHM2T

2.00

10.5

69.5

33.5

111

142

0.63

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
