CLGR® C Clamp Cast Steel

Name: CLGR® C Clamp Cast Steel
Brand: CLGR®

CLGR® C Clamp Cast Steel, also known as G Clamp, Cast Steel C-Clamp, C-clamp Cast steel G-clamp.

The C Clamp is built with a double rolled thread that delivers greater clamping speed, helping you complete setups faster. The large handle provides increased clamping pressure with less effort, reducing hand fatigue during extended use. Thanks to its low-resistance screw threading, binding and sticking are minimized for smooth, reliable operation.

The large swivel pad reduces marring on the work surface while improving overall stability. It automatically adjusts to fit a variety of workpiece shapes and sizes, so you don’t need to reposition the clamp constantly. The screw's low-resistance finish ensures smooth clamping every time.

Designed with a durable steel C-shaped frame, these clamps are ideal for holding wood and metal tight during gluing or welding projects. They are available in a wide range of sizes, throat depths, and capacities to meet your shop's needs. Whether you are doing metalworking or woodworking, the CLGR® C Clamp provides a secure, dependable hold.

To Get A Quote >

Overview of CLGR® C Clamp Cast Steel

Brand	CLGR®
Material	Body: Ductile iron ; Lead screw: #45
Processing	Body: Cast
Finish	Body: Powder Coated ; Lead screw: Oxidation blackening treatment
Application	Suitable for clamping wooden boards, various shapes of workpieces, modules, etc. mechanical maintenance, construction sites, etc.
Design	Movable chuck, movable screw rod design, easy to use; thick thread, exquisite workmanship, long use time;
Size	1″, 2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	Size permanently shown on the body.
Country of Origin	China

Specifications of CLGR® C Clamp Cast Steel

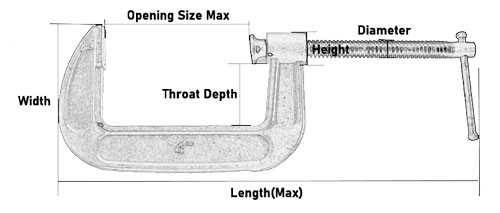

drawing-of-clgr®-c-clamp-cast-steel-china-supplier

Part No.	Size	Opening Size Max	Throat Depth	Screw Diameter	Body LxWxH(mm)	Weight/KG
CRCCLP01	1″	26mm	21mm	7 mm	74x50x16	0.11
CRCCLP02	2″	55mm	25mm	9mm	105x60x18	0.215
CRCCLP03	3″	82mm	43mm	11mm	160x85x22	0.415
CRCCLP04	4″	104mm	48mm	13mm	195x105x23	0.64
CRCCLP05	5″	134mm	59mm	13mm	235x115x25	0.835
CRCCLP06	6″	162mm	63mm	13mm	265x120x27	1.185
CRCCLP08	8″	210mm	73mm	13mm	315x140x28	1.57
CRCCLP10	10"	250mm	87mm	15mm	370x155x30	1.945
CRCCLP12	12”	290mm	93mm	15mm	425x165x35	1.975
