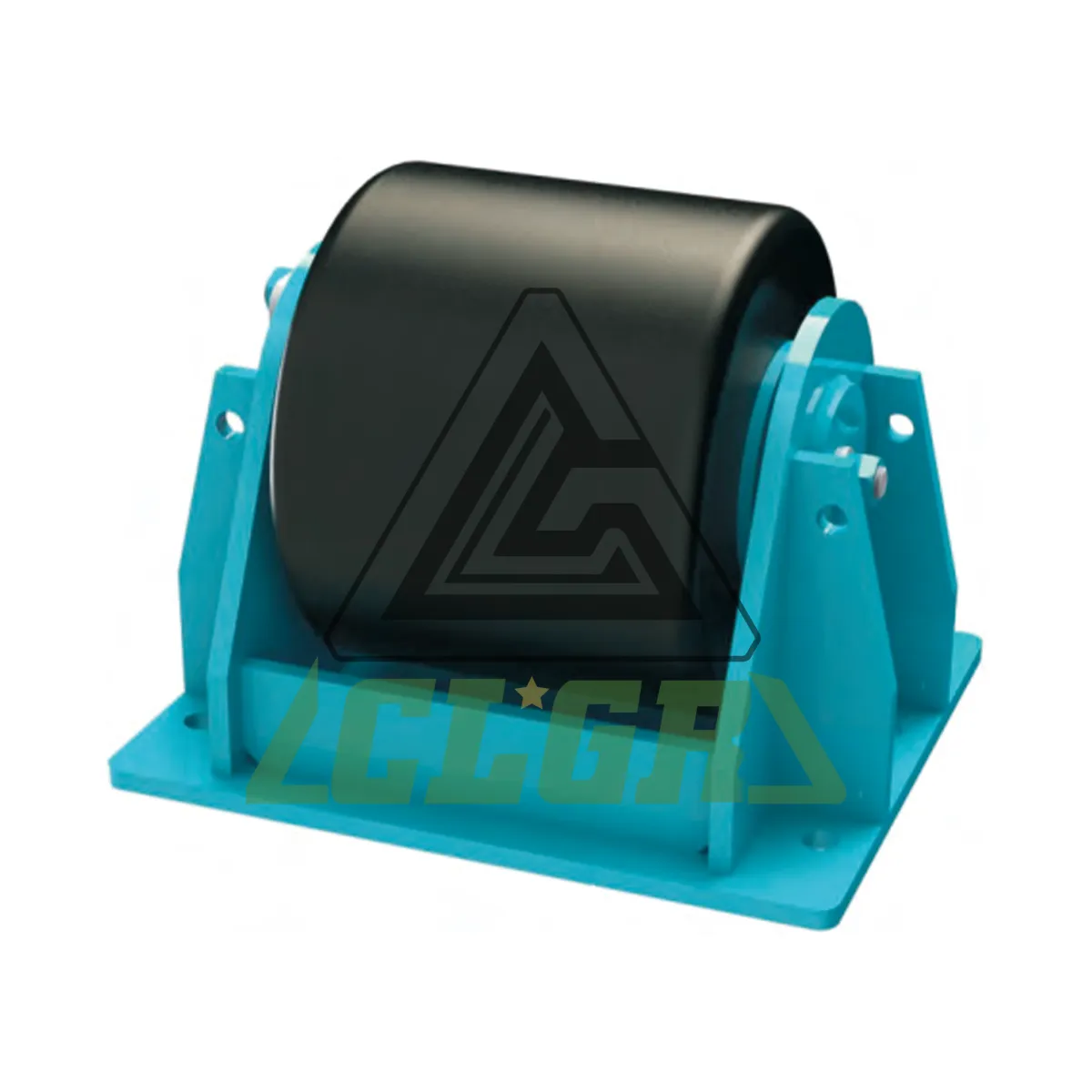

CLGR® Marine Roller Fender

Name: CLGR® Marine Roller Fender
Brand: CLGR®

CLGR® Marine Roller Fender is designed to guide vessels safely through space-restricted areas such as narrow channels, dry dock entrances, and lock ports.

It offers extremely low rolling resistance and requires minimal maintenance—making it a reliable choice for demanding marine environments.

As the vessel berths, the fender rotates with the ship's movement while producing slight deformation to absorb part of the impact energy. It can be mounted on fixed axes with special frames, or configured with sliding shafts and post-lateral wheels for maximum energy absorption.

Versatile mounting options allow installation in stacked double or triple configurations for tide zones, or side by side at angles matching the vessel's hull flare. This flexibility makes roller fenders ideal for piers, lock walls, protruding dock corners, and various restricted waterways.

Custom configurations are available to meet your specific project requirements. Contact us to discuss your needs.

To Get A Quote >

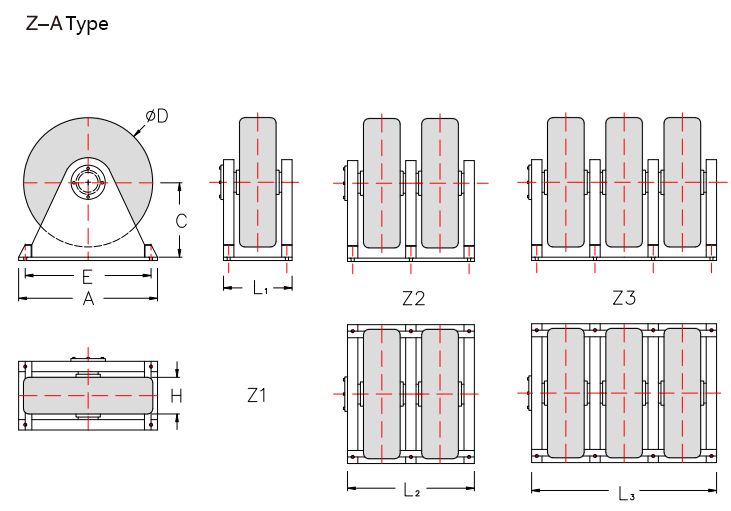

Specifications CLGR® Marine Roller Fender

Part No.	Types A×B(mm)	D	H	A	E	C	Z1		Z2		Z3
Part No.	Types A×B(mm)	mm					L1 (mm)	Weight (kg)	L2 (mm)	Weight (kg)	L3 (mm)	Weight (kg)
CRRFZA6020	600×200	600	200	695	620	320	420	127	770	245	1120	365
CRRFZA7525	750×250	750	250	870	775	400	510	280	935	560	1360	820
CRRFZA9030	900×300	900	300	1040	930	480	610	465	1120	878	1630	1291
CRRFZA12040	1200×400	1200	400	1380	1240	640	820	1045	1500	2041	2180	3005
CRRFZA15050	1500×500	1500	500	1740	1550	800	1010	2011	1850	3915	2690	5784
CRRFZA18060	1800×600	1800	600	2080	1860	960	1210	3441	2215	6701	3220	9891
CRRFZA21070	2100×700	2100	700	2440	2205	1155	1410	5610	2590	10925	3770	15895
CRRFZA24080	2400×800	2400	800	2770	2480	1280	1610	8115	2950	15701	4290	23300


Part No.	D	H	Max. Deflection (mm)	Z1		Z2		Z3
Part No.	mm	mm	Max. Deflection (mm)	Reaction force (kN)	Energy absorption (kNm)	Reaction force (kN)	Energy absorption (kNm)	Reaction force (kN)	Energy absorption (kNm)
1200×400	1200	400	431	248	48	496	96	744	144
1500×500	1500	500	541	388	94	776	187	1166	281
1800×600	1800	600	650	559	162	1117	323	1676	485
2100×700	2100	700	762	761	257	1519	514	2283	770
2400×800	2400	800	851	990	383	1980	766	2969	1147
