CLGR® Stainless Steel Rigging Screw Toggle/Toggle

Name: CLGR® Stainless Steel Rigging Screw Toggle/Toggle
Brand: CLGR®

CLGR® Stainless Steel Rigging Screw Toggle/Toggle, also referred to as tensioners, bottle screws, or adjusters.

These stainless steel rigging screws feature toggle ends at both ends, with flexible pivoted rigging fork jaws and removable clevis pins for secure attachment.

Manufactured from AISI 316 marine-grade stainless steel with a polished finish, the closed body design protects internal components from debris and reduces the risk of snagging. The swivel action of the toggles allows full articulation on two planes, making them ideal for applications requiring multi-angle adjustment. Supplied with split pins for added security, and lock nuts at each end to maintain set tension.

Commonly used in architectural rigging, balustrade systems, and marine applications.

Available in diameters: 6mm, 8mm, 10mm, 12mm, 16mm, and 20mm.

To Get A Quote >

Overview of CLGR® Stainless Steel Rigging Screw Toggle/Toggle

Brand	CLGR®
Material	Type 316 Stainless Steel Rigging Screw
Turnbuckle Type	Closed Body Rigging Screw
End Fittings	Toggle/Toggle
Size	M6, M8, M10, M12, M16, M20 Rigging Screw
Processing	Body: Reduced Tube / Machining Toggle：Stamping/Machining/Welding
Finish	Highly Polished
Tips	Corrosion Resistant
Country of Origin	China

Specification of CLGR® Stainless Steel Rigging Screw Toggle/Toggle

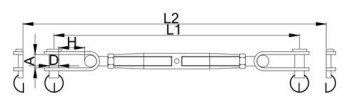

Part No.	Thread Size	A (mm)	D (mm)	H (mm)	L1 (mm)	L2 (mm)	KG/100	B.L.KG.
CRA4SSRSTT06	M6	7	6	15	160	230	10	1250
CRA4RSTT08	M8	10	8	20	190	265	18	2350
CRA4RSTT10	M10	12	9	25	230	320	37.5	3500
CRA4RSTT12	M12	13	12	30	280	390	63	5100
CRA4RSTT16	M16	17	16	40	370	510	137	8000
CRA4RSTT20	M20	20	19	45	430	570	223	13000
