CLGR® JIS Type Turnbuckle Stainless Steel Eye to Hook

Name: CLGR® JIS Type Turnbuckle Stainless Steel Eye to Hook
Brand: CLGR®

CLGR® JIS Type Turnbuckle Stainless Steel Eye to Hook, also known as Stainless Steel Turnbuckle JIS Standard Eye & Hook.

The JIS Stainless Steel Hook Eye Turnbuckle is built for precision tensioning in rigging applications.

Manufactured from high-quality AISI304 or AISI316 stainless steel, these turnbuckles are designed to meet JIS standards, offering exceptional corrosion resistance and durability.

The eye/hook configuration provides a fixed connection at one end and a quick-release option at the other, making it well-suited for straight-pull applications in marine mooring, structural bracing, railing tensioning, and industrial rigging systems.

Available in M5 to M20 sizes, Contact us for more details.

To Get A Quote >

Overview of CLGR® JIS Type Turnbuckle Stainless Steel Eye to Hook

Brand	CLGR®
Standard	Turnbuckle conform to JIS Standard
Material	Stainless steel (AISI 304/AISI 316)
Fitting Types	Hook and Eye
Size	5mm , 6mm , 8mm , 10mm , 12mm , 16mm , 20mm
Processing	Body : Cast / Forged Eye : Welding / Cast / Forged Hook : Stamping / Cast / Forged
Surface Finished	Highly Polishing
Tips	Corrosion Resistant

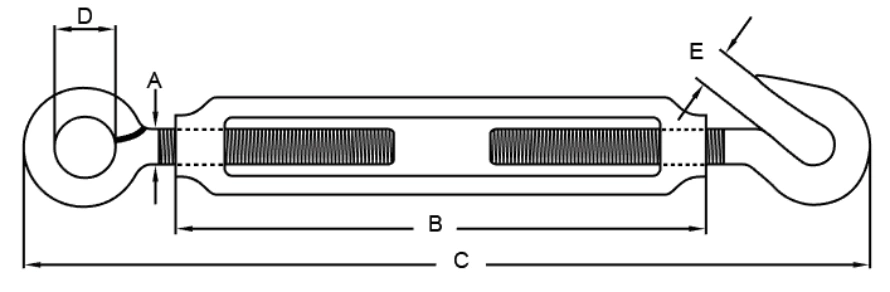

Specification of CLGR® JIS Type Turnbuckle Stainless Steel Eye to Hook

drawing-of-clgr®-jis-type-turnbuckle-stainless-steel-eye-to-hook-china

Part No.	Size	A	B	C	D	E	WLL	WT
Part No.	mm						tone	kgs
CR-SS-JIS-T+EH-05	M5	5	70	130	8	9	0.1	0.038
CR-SS-JIS-T+EH-06	M6	6	100	160	10	9	0.25	0.063
CR-SS-JIS-T+EH-08	M8	8	125	200	12	10	0.35	0.137
CR-SS-JIS-T+EH-10	M10	10	150	245	16	11	0.5	0.247
CR-SS-JIS-T+EH-12	M12	12	200	300	20	14	1	0.459
CR-SS-JIS-T+EH-16	M16	16	250	400	22	18	1.5	1.038
CR-SS-JIS-T+EH-20	M20	20	300	480	28	20	2.3	1.811
