CLGR® Jaw & Jaw Stainless Steel Turnbuckle US Type

Name: CLGR® Jaw & Jaw Stainless Steel Turnbuckle US Type
Brand: CLGR®

CLGR® Jaw & Jaw Stainless Steel Turnbuckle US Type, also known as US Type Jaw Jaw Open Body Turnbuckle.

Manufactured from high-quality 316 grade stainless steel for excellent corrosion resistance and a clean, professional appearance.

This U.S. Type turnbuckle features jaws at both ends, enabling quick, tool-free attachment and release on both sides. Each jaw is fitted with a removable clevis pin for secure connections to shackles, chains, or other rigging components.

The open body design allows for easy inspection and maintenance, making it a practical choice for applications where visibility and serviceability are important. It features a US type hex body and meets the dimensions of the ASTM spec F1145-92 Type 1, Class H.

Available in a range of sizes and end configurations. Contact us for more details.

To Get A Quote >

Overview of CLGR® Jaw & Jaw Stainless Steel Turnbuckle US Type

Brand	CLGR®
Standard	Turnbuckle conform to US Federal Specification（ASTM F1145-92）
Material	Stainless steel (AISI 304/AISI 316)
Turnbuckle Type	Open Body Turnbuckle US Type
End Fittings	Jaw & Jaw
Size	1/4×4", 5/16×4.5", 3/8×6", 1/2×6", 1/2×9", 1/2×12", 5/8×6", 5/8×9", 5/8×12” 3/4×6", 3/4×9", 3/4×12", 7/8×6", 7/8×12", 1×6", 1×12", 1-1/4×12 , 1-1/2×12
Processing	Cast / Forged
Finish	Highly Polishing
Tips	Corrosion Resistant
Country of Origin	China

Specification of CLGR® Jaw & Jaw Stainless Steel Turnbuckle US Type

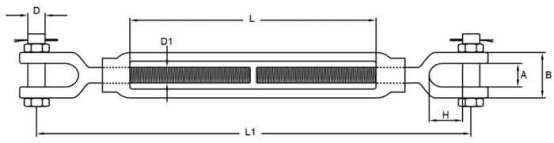

Part No.	Size	L	L1	A	D	B	H
Part No.	in.
CRA/4USTJJ1/4×4	1/4	4	7.15	0.45	0.24	0.9	0.62
CRA/4USTJJ5/16×4.5	5/16	4.5	8.61	0.49	0.24	1	0.87
CRA/4USTJJ3/8×6	3/8	6	10.45	0.53	0.31	1.08	0.87
CRA/4USTJJ1/2×6	1/2	6	11.88	0.67	0.39	1.36	1.06
CRA/4USTJJ1/2×9	1/2	9	14.88	0.67	0.39	1.36	1.06
CRA/4USTJJ1/2×12	1/2	12	17.88	0.67	0.39	1.36	1.06
CRA/4USTJJ5/8×6	5/8	6	13.3	0.81	0.47	1.68	1.31
CRA/4USTJJ5/8×9	5/8	9	16.3	0.81	0.47	1.68	1.31
CRA/4USTJJ5/8×12	5/8	12	19.3	0.81	0.47	1.68	1.31
CRA/4USTJJ3/4×6	3/4	6	14.62	1.02	0.63	1.97	1.5
CRA/4USTJJ3/4×9	3/4	9	17.62	1.02	0.63	1.97	1.5
CRA/4USTJJ3/4×12	3/4	12	20.62	1.02	0.63	1.97	1.5
CRA/4USTJJ7/8×6	7/8	6	16	1.18	0.79	2.43	1.75
CRA/4USTJJ7/8×12	7/8	12	22	1.18	0.79	2.43	1.75
CRA/4USTJJ1×6	1	6	17.6	1.3	0.87	2.63	2.06
CRA/4USTJJ1×12	1	12	23.6	1.3	0.87	1.3	2.06
CRA/4USTJJ1-1/4×12	1-1/4	12	26.46	1.83	1.12	3.6	2.81
CRA/4USTJJ1-1/2×12	1-1/2	12	27.88	2.05	1.38	3.96	2.81
