CLGR® Stainless Steel Rigging Screw Swage Stud & Terminals

Name: CLGR® Stainless Steel Rigging Screw Swage Stud & Terminals
Brand: CLGR®

Stainless Steel Rigging Screw Swage Stud & Terminals, also known as Stainless Steel Turnbuckle Swage Stud to Stud.

The wire rope is hydraulically swaged into the swage stud ends, forming a permanent and secure connection ideal for swage fittings in stainless rigging systems.

These rigging screws are manufactured from AISI 316 stainless steel with a high-polished finish, designed to accept wire rope for a wide range of wire rope rigging applications — from balustrades and railings to architectural tension structures where precise adjustment is required.

Compatible with steel wire rope diameters of 3mm, 4mm, 5mm, 6mm, and 8mm, 10mm, 12mm, 14mm... Tension can be easily adjusted by rotating the body to open or close the terminal stud ends.

Important: These stud terminals are intended for commercial and architectural use only. Not rated for lifting or load-bearing safety applications.

To Get A Quote >

Overview of Stainless Steel Rigging Screw Swage Stud & Terminals

Brand	CLGR®
Material	AISI316 Stainless Steel rigging screw
Size	M4, M5 M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M36 turnbuckle rigging screw
Processing	Body: Reduced Tube / Machining Swage Stud: Reduced Tube
Turnbuckle Type	Closed Body Turnbuckle/Rigging Screw
End Fittings	Swage Stud/Swage Terminal/Swage Ends
Finish	Highly Polishing
Tips	Corrosion Resistant
Country of Origin	China

Specifications of Stainless Steel Rigging Screw Swage Stud & Terminals

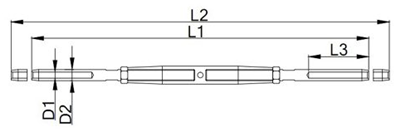

drawing-of-stainless-steel-rigging-screw-swage-stud-&-terminals

Part No.	Thread Size	Wire mm	D1 (mm)	D2 (mm)	L3 (mm)	L1 (mm)	L2 (mm)	KG/100	B.L.KG.
CRA2/4RSSS0402	M4	2	2.2	4.8	24	145	197	2.3	500
CRA2/4RSSS0502	M5	2	2.2	5.5	32	178	238	4	800
CRA2/4RSSS0525	M5	2.5	2.7	5.5	32	178	238	4	800
CRA2/4RSSS0532	M5	3.2	3.5	6.35	39	184	244	4.5	800
CRA2/4RSSS0603	M6	3	3.3	6.35	39	204	274	7	1250
CRA2/4RSSS0632	M6	3.2	3.5	6.35	39	204	274	7	1250
CRA2/4RSSS0604	M6	4	4.3	7.5	45	224	294	7.8	1250
CRA2/4RSSS0804	M8	4	4.3	7.5	45	235	305	12	2350
CRA2/4RSSS0805	M8	5	5.3	9	52	249	319	13.5	2350
CRA2/4RSSS1005	M10	5	5.3	9	52	270	355	22.5	3500
CRA2/4RSSS1006	M10	6	6.4	12.6	64	300	385	30	3500
CRA2/4RSSS1206	M12	6	6.4	12.6	64	330	445	43	5100
CRA2/4RSSS1208	M12	8	8.4	16	80	370	480	55	5100
CRA2/4RSSS1407	M14	7	7.4	14.2	70	365	485	57	5900
CRA2/4RSSS1608	M16	8	8.4	16	80	418	548	92	8000
CRA2/4RSSS1610	M16	10	10.5	18	90	438	568	100	8000
CRA2/4RSSS2010	M20	10	10.5	18	90	465	620	145	13000
CRA2/4RSSS2012	M20	12	12.6	20	105	495	650	151	13000
CRA2/4RSSS2214	M22	14	14.7	25	140	645	820	378	17000
CRA2/4RSSS2416	M24	16	16.9	28	160	745	980	553	20000
CRA2/4RSSS2719	M27	19	20	34.5	200	880	1115	801	27000
CRA2/4RSSS3022	M30	22	23.2	40.5	230	985	1240	1179	31000
CRA2/4RSSS3626	M36	26	27.5	46	280	1130	1400	1589	43000
