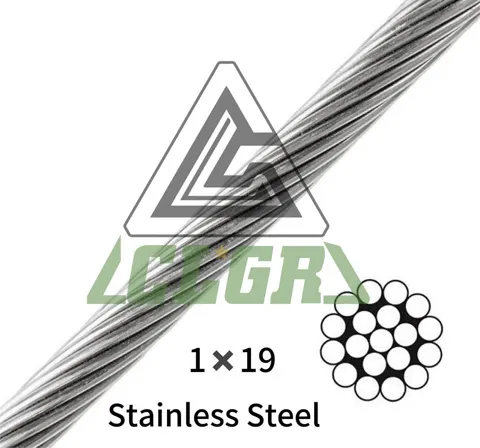

CLGR® Wire Rope 1x19 Stainless Steel AISI 304/316, also called Aircraft Cable.
This 1×19 Stainless Steel Wire Rope has no stretch and low range flexibility. It does not allow for kinks or bends and has less stretch than other constructions of wire rope.
1 × 19 steel wire rope is commonly used for small lifting, lashing and fixing, traction, and some mechanical transmission operations that require adaptation of strength and flexibility.
This wire rope can be used with manually swaged fittings such as Thimbles and Ferrules.
Other sizes and information about 1x19 wire rope on request.
| Brand | CLGR® |
| Construction | 1×19 |
| Material | Stainless Steel |
Item No | Nominal Dia (mm) | Dia. Tolerance (mm) | MBL (KN) | Approx Weight (Kg/100m) |
1X19 - 06S | 0.6 | 0.08 0 | 0.343 | 0.175 |
1X19 - 07S | 0.7 | 0.47 | 0.24 | |
1X19 - 08S | 0.8 | 0.617 | 0.31 | |
1X19 - 09S | 0.9 | +0.09 0 | 0.774 | 0.39 |
1X19 - 10S | 1 | +0.10 0 | 0.95 | 0.5 |
1X19 - 12S | 1.2 | 0.12 0 | 1.27 | 0.7 |
1X19 - 15S | 1.5 | 2.25 | 1.1 | |
1X19 - 20S | 2 | +0.20 0 | 3.82 | 2.00 |
1X19 - 25S | 2.5 | +0.25 0 | 5.58 | 3.13 |
1X19 - 30S | 3 | +0.30 0 | 8.03 | 4.5 |
1X19 - 35S | 3.5 | +0.35 0 | 10.6 | 6.13 |
1X19 - 40S | 4 | +0.40 0 | 13.9 | 8.19 |
1X19 - 50S | 5 | +0.50 0 | 21 | 12.9 |
1X19 - 60S | 6 | +0.60 0 | 30.4 | 18.5 |
