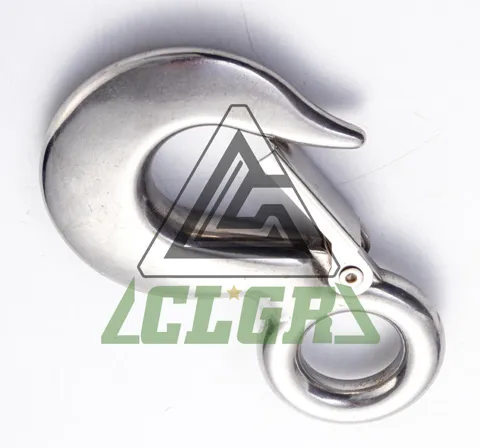

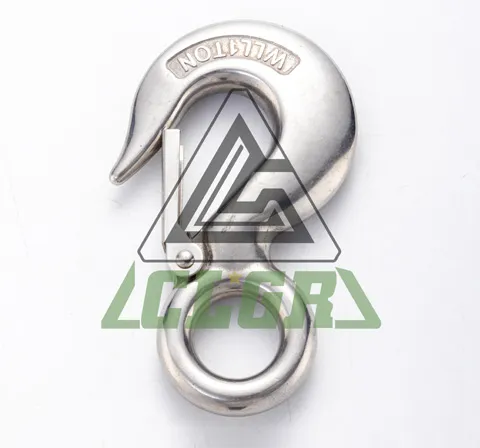

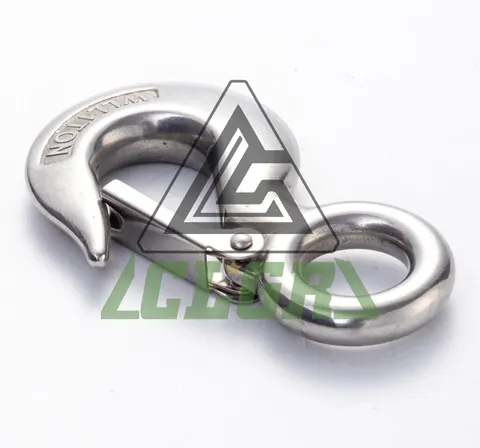

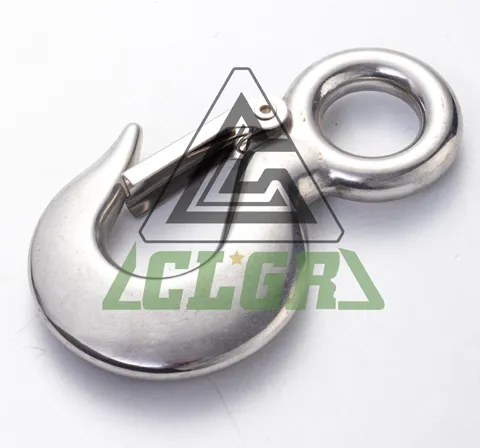

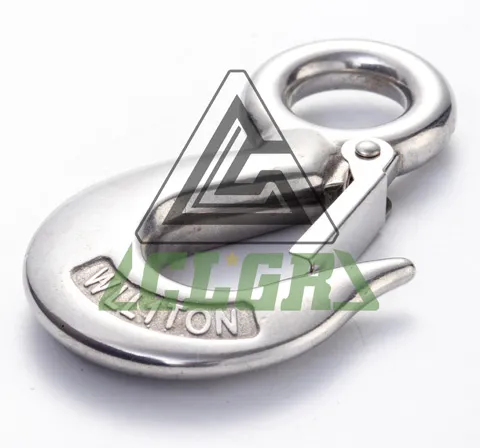

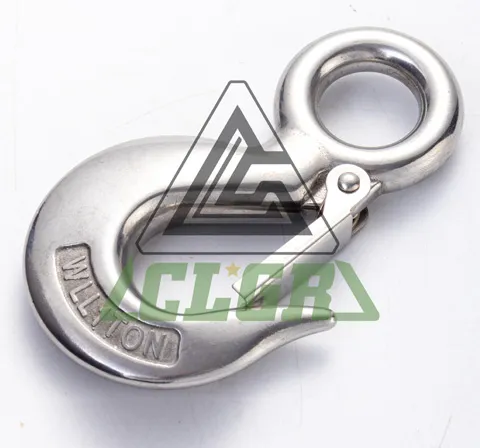

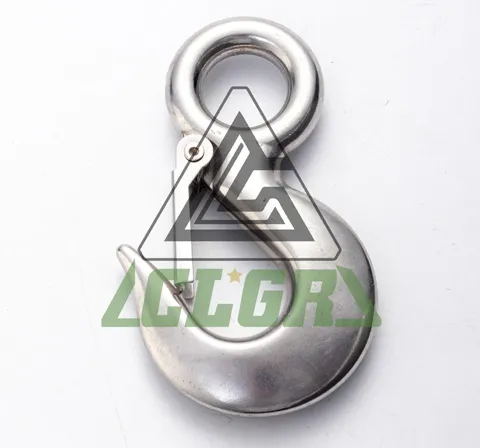

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320, also called Eye cargo snap hook, Stainless Steel Eye Sling Hook with latch, Stainless Steel Utility Eye Hook and eye slip hook with latch stainless steel.
This kind of marine snap hook offers a durable and secure attachment point for boats, docks, and trailers, made from high-quality 316 Marine Grade stainless steel or grade 304. The marine snap hook ensures exceptional strength and corrosion resistance, perfect for marine environments. The eye hoist crane hook's versatile design is suitable for various applications on boats, docks, or trailers.
The eye hoist crane hook from CLGR® can be effortlessly attached to shackles, lifting eyes, or loads secured with chains. The spring loaded safety latch prevents chain or sling slippage or detachment whilst in use.
This kind of marine snap hook is available for 1/2ton, 3/4ton, 1 ton, 1.5ton, 2ton, 3 ton.
As one of the professional stainless steel hook manufacturers, CLGR® invites you to explore our full range of stainless hooks for your rigging and marine applications.
| Brand | CLGR® |
| Size | 1/2ton, 3/4ton, 1ton, 1.5ton, 2ton, 3ton |
| Material | Stainless Steel AISI 304/316 |
| Processing | Casting / Latch Stamping |
| Surface Finish | Highly Polishing |
Part No. | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) | WLL (ton) |
CRSSH3201/2 | 16.5 | 92.7 | 15.3 | 8 | 0.159 | 1/2 |
CRSSH3203/4 | 18.3 | 109.5 | 18.3 | 10 | 0.253 | 3/4 |
CRSSH3201 | 22.6 | 118 | 20.7 | 11 | 0.34 | 1 |
CRSSH3201.5 | 28 | 138.3 | 24.3 | 12 | 0.476 | 1.5 |
CRSSH3202 | 32.4 | 165 | 25.6 | 15.5 | 0.848 | 2 |
CRSSH3203 | 38.2 | 199 | 31.5 | 18 | 1.156 | 3 |
*Break loads and WLL specifications are only valid for correct axial single-line suspension without spreading.
