CLGR® DIN763 Long Link Chain, made from Marine grade stainless steel, this chain offers excellent resistance to corrosion, making it suitable for both indoor and outdoor use.
The parts are tumbled and polished to remove any burrs, resulting in a high-quality shine. Although perfect for marine use, it can also be used in other demanding sectors like the food or chemical industry, due to the inert nature of stainless. Chain is supplied in one continuous length.
We can offer the DIN763 Stainless Steel Long Link Chain in sizes of 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 8.5m, 9mm, 10mm, 11mm, 12mm, 13mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm and 32mm.
Do not use as a traction or lifting product.
| Brand | CLGR® |
| Size | 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 8.5m, 9mm, 10mm, 11mm, 12mm, 13mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm and 32mm. |
| Material | Stainless Steel |
| Standard | DIN 763 |
| Processing | Welded |
| Surface Finish | Highly Polishing |
| Note | NOT FOR OVERLOAD LIFTING |

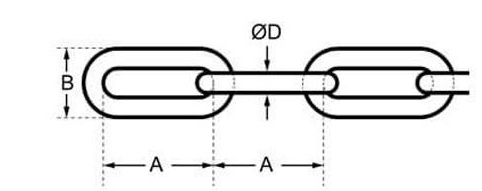

Part No. | ØD | A | B | SWL |
(mm) | (mm) | (mm) | (Kg) | |
CRSS763C02 | 2 | 22 | 8 | 25 |
CRSS763C2.5 | 2.5 | 24 | 10 | 40 |
CRSS763C03 | 3 | 26 | 12 | 55 |
CRSS763C3.5 | 3.5 | 28 | 14 | 80 |
CRSS763C04 | 4 | 32 | 16 | 80 |
CRSS7630C4.5 | 4.5 | 34 | 18 | 100 |
CRSS763C05 | 5 | 35 | 20 | 128 |
CRSS763C5.5 | 5.5 | 38.5 | 22 | 195 |
CRSS763C06 | 6 | 42 | 24 | 208 |
CRSS763C07 | 7 | 49 | 28 | 300 |
CRSS763C08 | 8 | 52 | 32 | 400 |
CRSS763C8.5 | 8.5 | 56 | 34 | 460 |
CRSS763C09 | 9 | 59 | 36 | 530 |
CRSS763C10 | 10 | 65 | 40 | 630 |
CRSS763C11 | 11 | 72 | 44 | 790 |
CRSS763C12 | 12 | 78 | 48 | 940 |
CRSS763C13 | 13 | 82 | 52 | 1,000 |
CRSS763C16 | 16 | 100 | 64 | 1600 |
CRSS763C18 | 18 | 113 | 70 | 2,120 |
CRSS763C19 | 19 | 119 | 72 | 2,370 |
CRSS763C20 | 20 | 120 | 75 | 2,500 |
CRSS763C22 | 22 | 127 | 82 | 3,170 |
CRSS763C25 | 25 | 140 | 85 | 4,090 |
CRSS763C28 | 28 | 152 | 96 | 6,000 |
CRSS763C32 | 32 | 171 | 108 | 8,000 |
