CLGR® Stainless Steel Turnbuckle Eye & Eye Korean Type

Name: CLGR® Stainless Steel Turnbuckle Eye & Eye Korean Type
Brand: CLGR®

CLGR® Stainless Steel Turnbuckle Eye & Eye Korean Type, also known as Eye to Eye Turnbuckle Stainless Steel Korean Standard.

This Korean-type turnbuckle features eye ends on both sides, offering secure and permanent connection points for pins, bolts, or shackles. It is commonly used in straight-line tensioning applications where both ends need to be permanently fixed.

Manufactured from high-quality AISI304 or AISI316 stainless steel, it provides excellent corrosion resistance and long-term durability in outdoor and marine environments. The polished finish further enhances its visual appeal, making it suitable for applications where aesthetics matter — such as architectural railings, yacht fittings, and decorative tension structures.

Available sizes range from M5 to M20, with custom sizes available upon request.

To Get A Quote >

Overview of CLGR® Stainless Steel Turnbuckle Eye & Eye Korean Type

Brand	CLGR®
Standard	Turnbuckle conform to Korean Standard
Material	AISI 316 or 304 Stainless steel
Turnbuckle Type	Open Body Turnbuckle
End Fittings	Eye & Eye
Size	3/16” , 1/4” , 5/16” , 3/8” , 1/2” , 5/8” , 3/4” , 7/8” , 1”
Processing	Body : Cast / Forged Eye : Welding / Cast / Forged
Surface Finished	Highly Polishing
Application	Lifting, Lashing, Towing

Specification of CLGR® Stainless Steel Turnbuckle Eye & Eye Korean Type

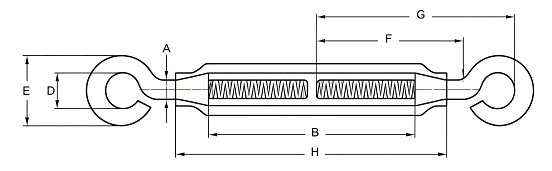

drawing-of-clgr®-stainless-steel-turnbuckle-eye-&-eye-korean-type-china-direct-factory

Part No.	Size	H	B	A	D	E	F	G	WT
Part No.	Size	mm							KGS
CRSSKTEE3/16	3/16	70	57	4.4	10	18.8	40	60	0.04
CRSSKTEE1/4	1/4	90	70	5.3	10	20.6	50	71	0.063
CRSSKTEE5/16	5/16	120	95	7.1	12	26.5	64	91	0.137
CRSSKTEE3/8	3/8	150	121	8.9	18	35	83	120	0.254
CRSSKTEE1/2	1/2	200	169	10.8	20	41	105	146	0.464
CRSSKTEE5/8	5/8	250	210	14.6	25	54.2	138	190	1.041
CRSSKTEE3/4	3/4	300	250	18.3	25	61.6	165	230	1.834
CRSSKTEE7/8	7/8	320	262	22	31	74	170	241	2.87
CRSSKTEE1	1″	345	280	24	32	80	205	280	3.92

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
