CLGR® Round Wire Lock Pin Galvanized

Name: CLGR® Round Wire Lock Pin Galvanized
Brand: CLGR®

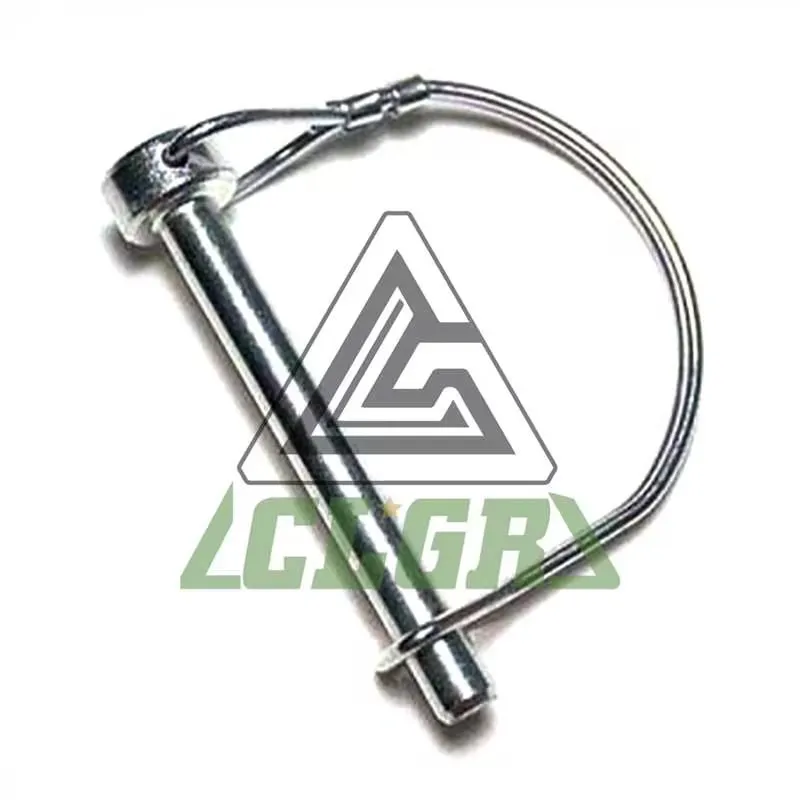

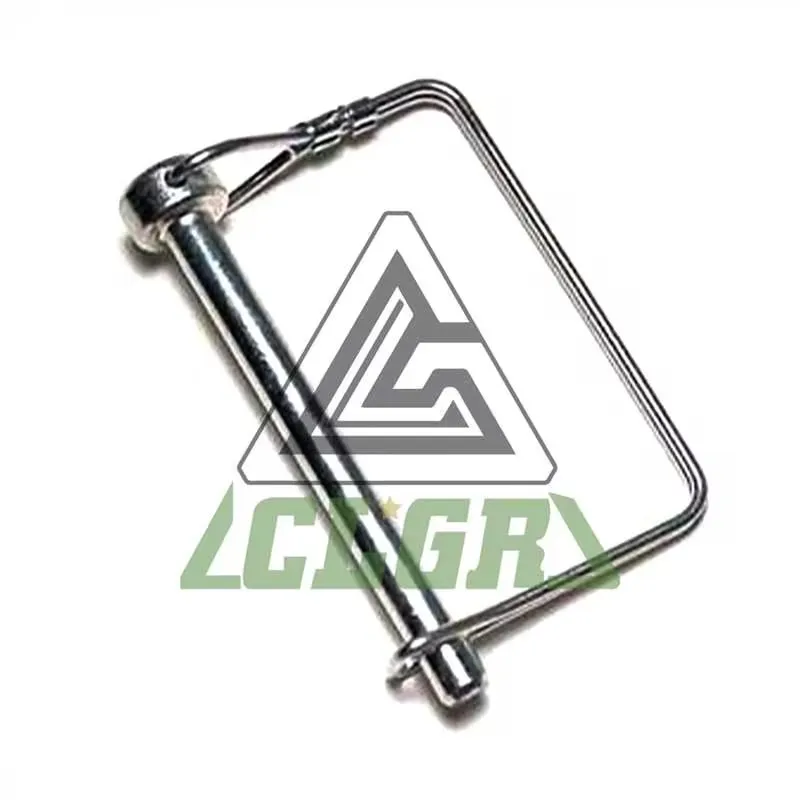

CLGR® Round Wire Lock Pin, also known as Silver Round Wire Lock Pin Pin/Clip, and Square PTO Locking Pin.

The wire lock pin combines a lock pin and a cotter pin into a single, secure assembly. Unlike traditional cotter pins or separate lock nut setups, this one-piece fastener eliminates the risk of lost parts while providing quick and reliable locking for a wide range of equipment.

The wire loop is simply pulled over the pin end to lock it in place or remove it.

This design is ideal for applications that demand frequent or rapid removal, such as securing hitches, axles, and power take-offs on tractors, lawnmowers, and trailers. Because the wire lock is permanently attached to the lock pin, it won't get lost as easily as a loose cotter pin or R-clip.

To Get A Quote >

Overview of Round Wire Lock Pin Galvanized

Brand	CLGR®
Material	Superior Carbon Steel; Stainless Steel AISI304 or AISI316 is also available
Processing	Stamped
Finish	Electric Galvanized
Size	1/4”×1-3/8”, 1/4”×1-3/4”, 1/4”×2-1/4”, 1/4”×2-1/2”, 1/4”×2-1/2”, 5/16”×1-3/8”, 5/16”×1-3/4”, 5/16”×2-1/4”, 5/16”×2-1/2”, 5/16”×2-1/2”, 5/16”×3”, 3/8”×1-3/8”, 3/8”×1-3/4”, 3/8”×2-1/4”, 3/8”×2-1/2”, 3/8”×2-1/2”, 3/8”×3”, 1/2”×3”
Tips	Special specification and marks can be made according to customers’ requirements

Specification of Round Wire Lock Pin Galvanized

Part No.	Pin dia	Shank length	Usable length	Wire dia	Wire clearance	Head dia	Handle type	Pcs/bag	Wgt(lbs)/bag
CRWLP010	1/4	1-5/8	1-3/8	0.091	1-5/8	9/16	RD	25	2
CRWLP012	1/4	2	1-3/4	0.091	1-9/16	9/16	RD	25	2
CRWLP013	1/4	2-1/2	2-1/4	0.091	1-5/8	9/16	SQ	25	2
CRWLP014	1/4	2-3/4	2-1/2	0.091	1-3/4	9/16	SQ	25	2
CRWLP016	1/4	2-3/4	2-1/2	0.091	1-3/4	9/16	RD	25	2
CRWLP020	5/16	1-5/8	1-3/8	0.091	1-9/16	5/8	RD	25	2
CRWLP022	5/16	2	1-3/4	0.091	1-1/2	5/8	RD	25	2
CRWLP023	5/16	2-1/2	2-1/4	0.091	1-9/16	5/8	SQ	25	3
CRWLP024	5/16	2-3/4	2-1/2	0.091	1-11/16	5/8	SQ	25	3
CRWLP026	5/16	2-3/4	2-1/2	0.091	1-11/16	5/8	RD	25	3
CRWLP028	5/16	3-1/4	3	0.091	1-11/16	5/8	SQ	25	4
CRWLP030	3/8	1-5/8	1-3/8	0.091	1-1/2	5/8	RD	25	3
CRWLP032	3/8	2	1-3/4	0.091	1-7/16	5/8	RD	25	3
CRWLP034	3/8	2-1/2	2-1/4	0.091	1-1/2	5/8	SQ	25	4
CRWLP036	3/8	2-3/4	2-1/2	0.091	1-5/8	5/8	SQ	25	4
CRWLP038	3/8	2-3/4	2-1/2	0.091	1-5/8	5/8	RD	25	4
CRWLP039	3/8	3-1/4	3	0.091	1-5/8	5/8	SQ	25	4
CRWLP040	1/2	3-1/2	3	0.125	1-7/16	3/4	SQ	10	3
