CLGR® Open Type Pulley Block Double Sheave With Eye 7312

Name: CLGR® Open Type Pulley Block Double Sheave With Eye 7312
Brand: CLGR®

CLGR® Open Type Pulley Block Double Sheave With Eye 7312, also known as Double Sheave Snatch Block, and Double Sheave Lifting Pulley Block, and Wire Rope Pulley Block.

This double sheave block features an open type design for easy rope insertion and cleaning. The open side allows the rope to be inserted directly into the sheave – no need to thread from the end.

Equipped with two sheaves, it allows the rope to be across multiple times, effectively increasing mechanical advantage for heavier lifting or pulling tasks.

Built for durability and smooth operation, this block is suitable for construction, industrial rigging, and marine use.

Available in various sizes and working load limits to meet different job requirements.

To Get A Quote >

CLGR® Open Type Pulley Block Double Sheave With Eye 7312 China Manufacturer

CLGR® Open Type Pulley Block Double Sheave With Eye 7312 China

CLGR® Open Type Pulley Block Double Sheave With Eye 7312

Overview of CLGR® Open Type Pulley Block Double Sheave With Eye 7312

Brand	China CLGR®
Type	Double Sheave Block 7312
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Open Type Pulley Block Double Sheave With Eye 7312

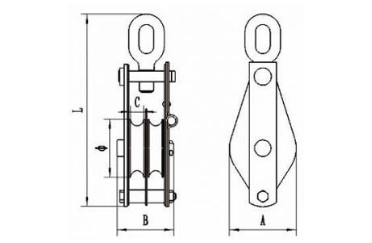

drawing-of-clgr®-open-type-pulley-block-double-sheave-with-eye-7312-china-manufacturer

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7312E-2	2	0.25	6mm	49	217	58	52.5	11	0.75
CR7312E-3	3	0.5	8mm	70.5	268	81	68.5	13	1.8
CR7312E-4	4	1	10mm	97	330	112	79.5	16	3.05
CR7312E-5	5	1.5	13mm	125	400	140	87	17	4.7
CR7312E-6	6	2	16mm	146	460	168	114	22	7
CR7312E-7	7	3	19mm	173	505	186	128	25	12.7
CR7312E-8	8	4	22mm	200	535	212	128.5	26	16
CR7312E-10	10	5	25mm	250	611	276	136	28	26
CR7312E-12	12	6	28mm	300	661	326	133	28	32
