CLGR® Australian Standard Wire Rope Grips AS2076

Name: CLGR® Australian Standard Wire Rope Grips AS2076
Brand: CLGR®

CLGR® Australian Standard Wire Rope Grips AS2076 also known as AS2076 Wire Rope Grip and Australian Standard Wire Rope Clip.

Our Australian Standard Wire Rope Grips AS2076 are manufactured with heavy-duty cast steel saddles and high-tensile U-bolts featuring larger nuts for greater tightening force, with hot-dip galvanized finish providing maximum corrosion resistance.

These grips are essential for critical non-lifting applications including mining conveyor belt tensioning systems, port mooring bollard installations, and agricultural fencing wire termination where secure rope fastening is required. The 5:1 safety factor ensures reliable performance in demanding scenarios such as securing safety barrier cables along highway margins and fastening crane stationary guy wires.

Available in sizes from 6mm to 52mm to accommodate various cable diameters.

For wire ropes exceeding 1770 grade tensile strength, derating or additional grips may be required.

Important safety notice: These grips comply with AS2076 standards for static applications only - never use for lifting purposes or permanent fastening under high dynamic loading.

To Get A Quote >

clgr australian standard wire rope grips as2076

Overview of Australian Standard Wire Rope Grips AS2076

Brand	CLGR®
Origin	China
Technical Notes	Wire rope grips Conform to AS2076
Finish	Hot Dip Galvanized
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm 22mm, 26mm, 28mm, 32mm, 36mm, 40mm, 44mm, 52mm
Safety Factor	5:1

Specifications of Australian Standard Wire Rope Grips AS2076

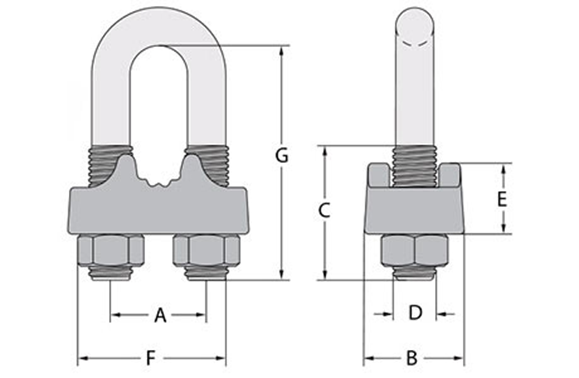

drawing-of-australian-standard-wire-rope-grips-as2076

Part No.	Size	A	B	C	D	E	F	G	100/wt
Part No.	mm	A	B	C	D	E	F	G	kg
CRWRC2706-6	6	14	15	20	6	12	28	26	0.04
CRWRC2706-8	8	18	19	22	8	14	34	32	0.059
CRWRC2706-10	10	22	23	28	10	17	42	40	0.112
CRWRC2706-12	12	26	30	33	12	20	50	48	0.207
CRWRC2706-14	14	28	30	33	12	21.5	52	52	0.223
CRWRC2706-16	16	34	38	44	16	26.5	66	64	0.466
CRWRC2706-18	18	26	38	44	16	27	68	68	0.499
CRWRC2706-20	20	38	38	44	16	30	70	72	0.538
CRWRC2706-22	22	40	38	44	16	31.5	72	76	0.56
CRWRC2706-26	26	50	48	55	20	37.5	90	92	1.055
CRWRC2706-28	28	52	48	55	20	39	92	96	1.075
CRWRC2706-32	32	56	48	55	20	41	96	104	1.2
CRWRC2706-36	36	64	58	66	24	48	112	120	1.941
CRWRC2706-40	40	68	58	66	24	50	116	128	2.071
CRWRC2706-44	44	73	62	90	27	52	135	150	3
CRWRC2706-52	52	85	69	103	M30	56	154	185	4.2
