CLGR® 6x12+7FC Galvanized Steel Wire Rope

Name: CLGR® 6x12+7FC Galvanized Steel Wire Rope
Brand: CLGR®

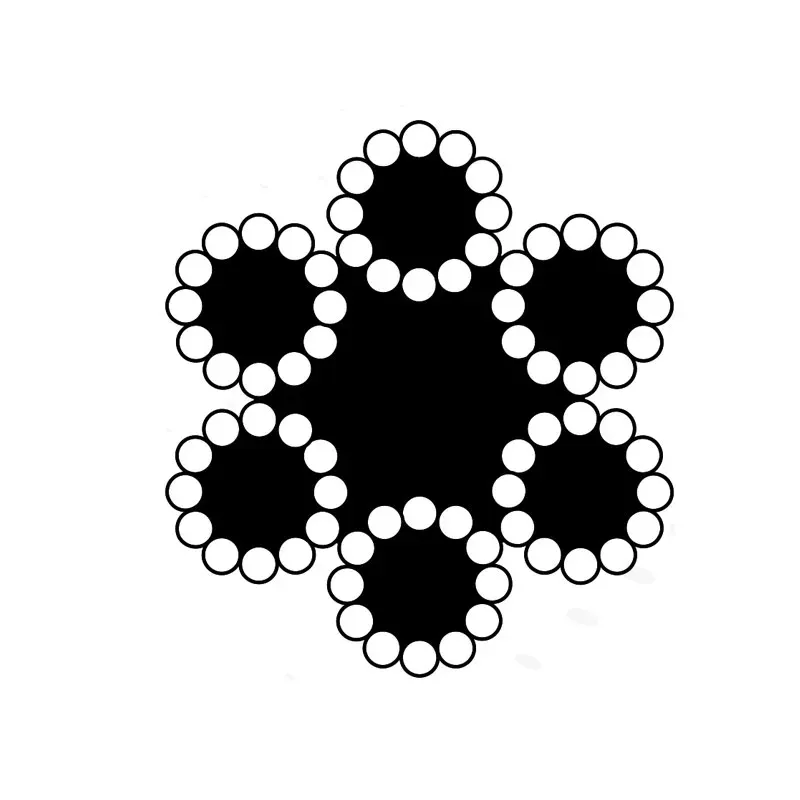

CLGR® 6x12+7FC Galvanized Steel Wire Rope features 6 strands of 12 wires each, wrapped around a 7-wire fiber core (FC), making it well-suited for tasks that require frequent bending and movement.

Available in galvanized or stainless steel options, offering excellent protection against corrosion, even in harsh environments.

Suitable for numerous industries, including construction, marine, and general-purpose applications, due to its durability and flexibility.

To Get A Quote >

Overview of CLGR® 6x12+7FC Galvanized Steel Wire Rope

Brand	CLGR®
Construction	6×12-7 FC
Core	Fiber core(FC)
Finished	Galvanized
Application	Tugboat, Cargo Net, Floating of Wood, Fish Net Dragging and Bind.
Country of Origin	China

Specifications of CLGR® 6x12+7FC Galvanized Steel Wire Rope

Part No.	Nominal Dia.	Approx Weight kg/100m	Nominal Tensile Strength(MPa)
	Nominal Dia.	Approx Weight kg/100m	1570	1770
	mm	FC	MBS (kN)
6X12-7FC080	8	16.1	21	23.7
6X12-7FC090	9	20.3	26.6	30.o
6X12-7FC093	9.3	21.7	28.4	32
6X12-7FC100	10	25.1	32.8	37
6X12-7FC110	11	30.4	39.7	44.8
6X12-7FC120	12	36.1	47.3	53.3
6X12-7FC125	12.5	39.2	51.3	57.8
6X12-7FC130	13	42.4	55.5	62.5
6X12-7FC140	14	49.2	64.3	72.5
6X12-7FC155	15.5	60.3	78.8	88.9
6X12-7FC160	16	64.3	84	94.7
6X12-7FC170	17	72.5	94.8	107
6X12-7FC180	18	81.3	106	120
6X12-7FC185	18.5	95.9	112	127
6X12-7FC200	20	100	131	148
6X12-7FC215	21.5	116	152	171
6X12-7FC220	22	121	159	179
6X12-7FC240	24	145	189	213
6X12-7FC245	24.5	151	197	222
6X12-7FC260	26	170	222	250
6X12-7FC280	28	197	257	290
6X12-7FC320	32	257	336	379
