CLGR® 1x7 Galvanized Wire Rope

Name: CLGR® 1x7 Galvanized Wire Rope
Brand: CLGR®

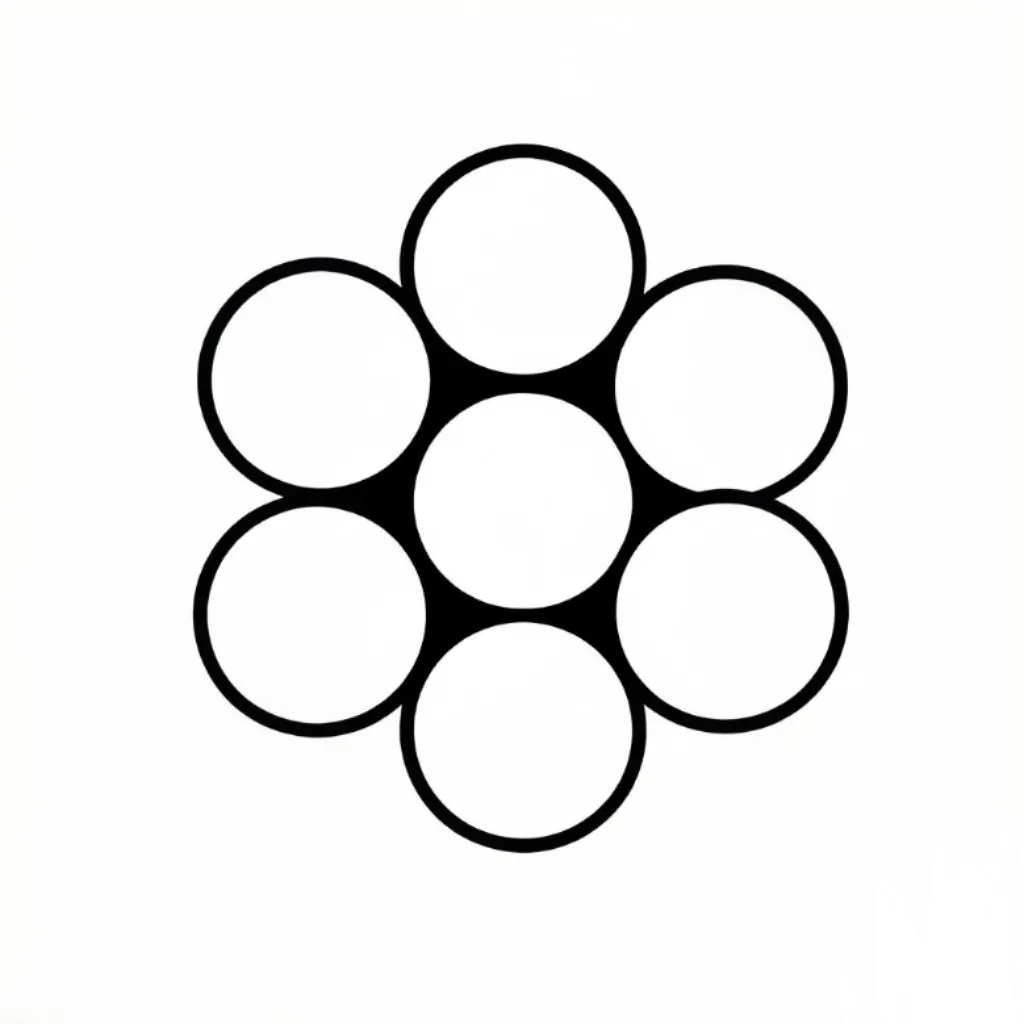

CLGR® 1x7 Galvanized Wire Rope features a 1×7 construction (1 central wire surrounded by 6 outer wires), delivering exceptional rigidity, high tensile strength, and excellent corrosion resistance.

High carbon steel ensures superb tensile strength. Very low stretch and strong resistance to corrosion due to hot galvanizing.

It is widely applied to guy wires, fencing, cable railing, structural support and general industrial use.

To Get A Quote >

Overview of CLGR® 1x7 Galvanized Wire Rope

Brand	CLGR®
Rope Type	Single Layer Steel Wire Rope
Wire Rope Class	1×7
Design	Right alternative left spiral stand
Finished	Galvanized
Application	Traction, Pulling, Strapping,etc
Caution	Not for lifting
Country of Origin	China

Specifications of LGRIG® 1x7 Galvanized Wire Rope

Part No.	Nominal Dia.	Approx Weight	Nominal Tensile Strength(MPa)
	Nominal Dia.	Approx Weight	1570	1770
	mm	kg/100m	MBS(kN)
D1X7K006	0.6mm	0.18	0.308	0.347
D1X7K008	0.8mm	0.32	0.547	0.617
D1X7K010	1mm	0.5	0.855	0.963
D1X7K015	1.5mm	1.13	1.92	2.17
D1X7K020	2mm	2.01	3.42	3.85
D1X7K025	2.5mm	3.14	5.34	6.02
D1X7K030	3mm	4,52	7.69	8.67
D1X7K035	3.5mm	6.15	10.5	11.8
D1X7K040	4mm	8.03	13.7	15.4
D1X7K045	4.5mm	10.2	17.3	19.5
D1X7K050	5mm	12.6	21.4	¡ª
D1X7K060	6mm	18.1	30.8	¡ª
D1X7K070	7mm	24.6	41.9	¡ª
D1X7K080	8mm	32.1	54.7	¡ª
