CLGR® 1X19 Galvanized Aircraft Cable

Name: CLGR® 1X19 Galvanized Aircraft Cable
Brand: CLGR®

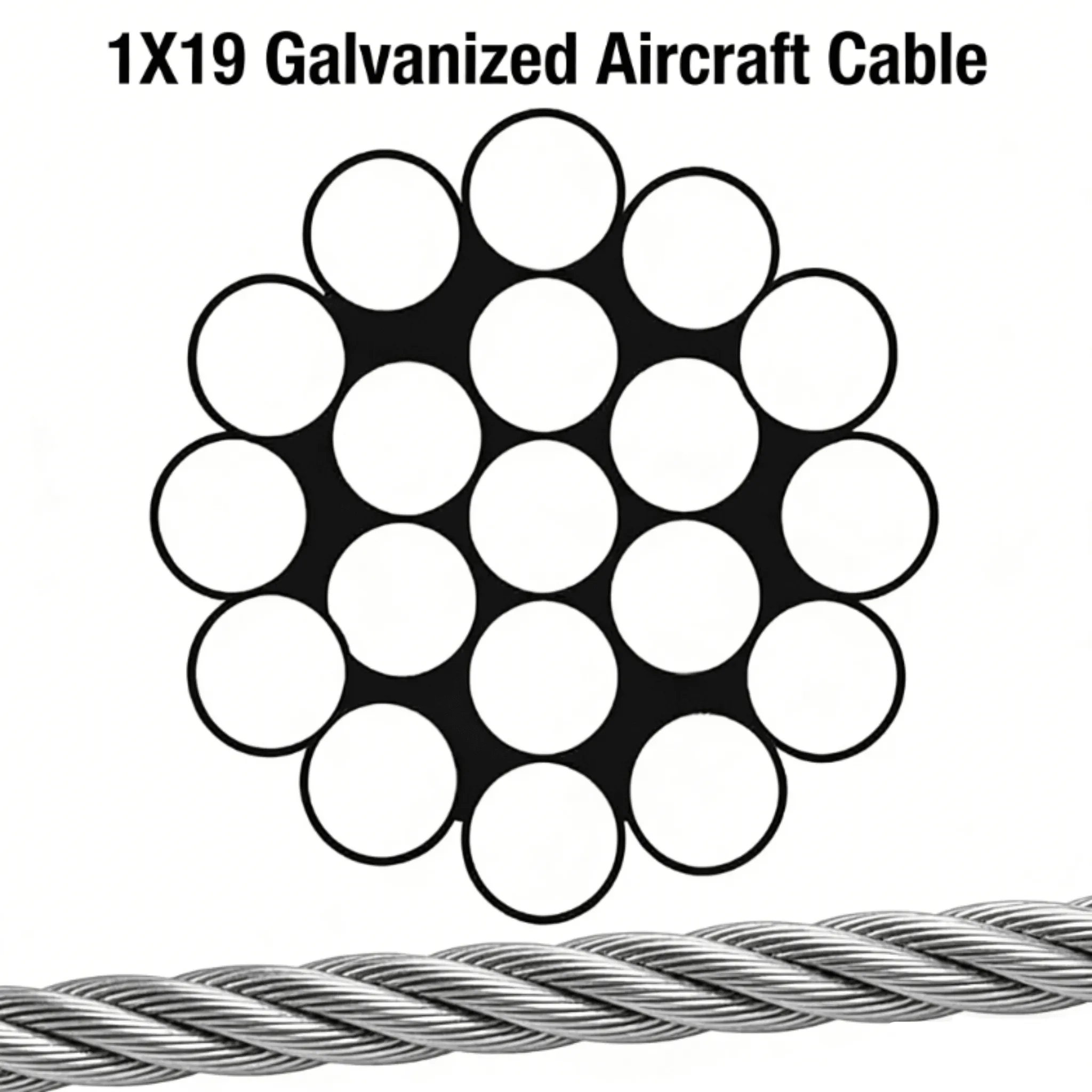

CLGR® 1X19 Galvanized Aircraft Cable is one strand of cable wrapped with 19 more strands. This cable is much stiffer and is mainly used for dispatch snares.

The 1×19 galvanized aircraft cable is widely used as standing rigging on sail boats. It is also well suited for push-pull, yacht rigging, and guying applications.

To Get A Quote >

Overview of CLGR® 1X19 Galvanized Aircraft Cable

Brand	CLGR®
Construction	1×19 Aircraft Cable
Design	Right alternative left spiral strand
Finished	Galvanized
Caution	Not for lifting
Country of Origin	China

Specifications of CLGR® 1X19 Galvanized Aircraft Cable

Part No.	Diameter	Approx. Weight	Min.Breaking Load
Part No.	(inch)	(Lbs/100ft)	AISI304	Galvanized
CR1x19GAC01	1/32″	0.22	185	185
CR1x19GAC02	3/64″	0.55	375	375
CR1x19GAC03	1/16″	0.85	500	500
CR1x19GAC04	5/64″	1.4	800	800
CR1x19GAC05	3/32″	2	1200	1200
CR1x19GAC06	1/8″	3.5	2100	2100
CR1x19GAC07	9/64″	4.5	2820	2820
CR1x19GAC08	5/32″	5.5	3300	3300
CR1x19GAC09	3/16″	7.7	4700	4700
CR1x19GAC10	1/4″	13.5	8200	8200
CR1x19GAC11	9/32″	17	10300	10300
CR1x19GAC12	5/16″	21	12500	12500
CR1x19GAC13	3/8″	30.4	17500	17500

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
