CLGR® Foam Filled Fenders CFF Type

Name: CLGR® Foam Filled Fenders CFF Type
Brand: CLGR®

CLGR® Foam Filled Fenders CFF Type, also known as Floating Foam Fenders, Foam Fenders, Solid Foam Fenders, are designed to deliver high-energy absorption with low reaction force, ensuring smooth berthing even in challenging conditions.

Unlike rigid rubber fenders, the foam-filled construction provides a softer yet highly effective cushioning effect, reducing impact stress on both vessels and dock structures.

Built with a tough, wear-resistant outer skin and a resilient foam core, these fenders offer exceptional durability in harsh marine environments.

They are ideal for bridge and corner protection, ferry terminals, lock entrances, and areas with strong currents or limited maneuverability. Their floating design allows them to adapt to large tidal changes, making them a versatile choice for docks and offshore applications.

Custom sizes and configurations are available to match your specific project needs.

To Get A Quote >

Overview of CLGR® Foam Filled Fenders CFF Type

Brand	CLGR®
Fender Type	Foam
Size & Color	Customized According To Customers' Requirements

Specifications of CLGR® Foam Filled Fenders CFF Type

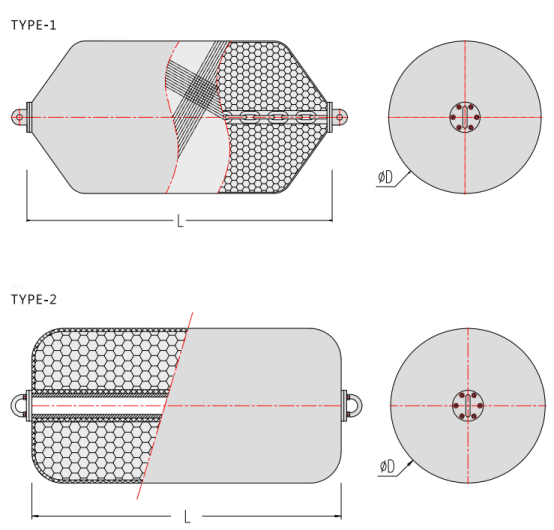

Drawing of CLGR® Foam Filled Fenders CFF Type

Unsinkable Closed cell foam core;
Filament reinforcement matrix;
Tough polyurethane skin or rubber:
Internal chains or steel tube.

Part No.	D (mm)	L (mm)	60% Deflection		Weight
Part No.	D (mm)	L (mm)	Reaction force (kN)	Energy absorption (kNm)	kg
300×500	300	500	13	0.49	11
400×600	400	600	18	1.05	19
500×1000	500	1000	38	2.18	42
600×1000	600	1000	49	3.4	63
1000×1000	1000	1000	137	33	275
1000×1500		1500	206	49	410
1000×2000		2000	273	65	553
1200×1500	1200	1500	256	70	615
1200×2000	1200	2000	336	93	815
1500×2500	1500	2500	520	180	1550
1500×3000	1500	3000	626	217	1863
1600×3000	1600	3000	860	270	2110
2000×3500	2000	3500	992	458	3850
2000×4000	2000	4000	1120	506	4590
2200×4500	2200	4500	1402	682	6000
2500×4000	2500	4000	1415	778	6860
2500×5000	2500	5000	1735	992	8555
3000×5000	3000	5000	2060	1422	12850
3000×6000	3000	6000	2470	1702	15400
3300×6500	3300	6500	2956	2248	16690
4300×8500	4300	8500	19012	7398	32000
4500×9000	4500	9000	21520	6732	38000

Note：

（1）Performance tolerance:±10%
（2）Other specifications are available upon request.
（3）Large foam fender need to be equipped with protective sleeve.

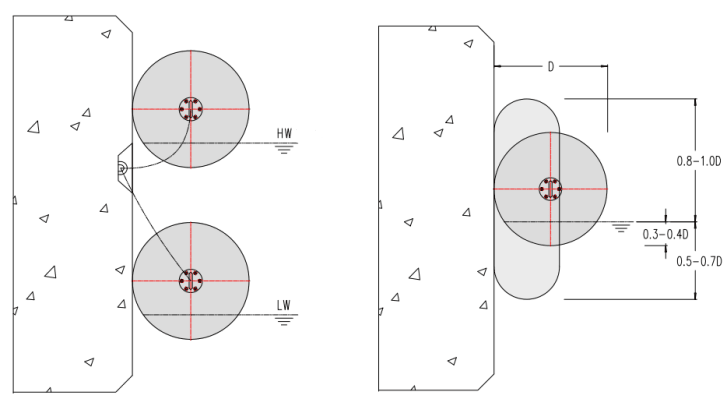

Mooring applications

Mooring application of foam fender
