Wire Tube Thimble Stainless Steel with Gusset SSG8K, also known as Tubular thimble and Pipe Thimbles.
Tubular Thimble is shaped like a tube, with smooth inner walls and an open end.
Stainless Steel Tubular Thimble with Gusset, crafted from grade 304 or 316 stainless steel for excellent corrosion resistance, is compatible with synthetic rope and delivers high performance in outdoor, marine, and fishing environments.
These tubular thimbles are used to help protect ropes which forms the eye, and therefore will greatly extend the working life of the rope. These tubular thimbles also add extra rigidity to a soft loop making it stronger and much easier to attach wherever it is needed.
Special specifications can also be produced by CLGR® according to drawings and samples.
Explore our Stainless Thimbles by clicking here.
| Brand | CLGR® |
| Size | G808K, G810K, G812K, G815K, G819K, G824K, G827K, G831K, G839K, G844K, G848K, G860K |
| Size wire | 15-12mm, 19-16mm, 24-21mm, 27-24mm, 31-28mm, 39-35mm, 48-44mm, 60-54mm |
| Material | Stainless Steel Grade 304 or 316 |
| Surface Treatment | Highly Polished, Electrophoretic Coating |
| Processing | Machining, Stamping, Welding |
| Applications | For use with wire ropes. |

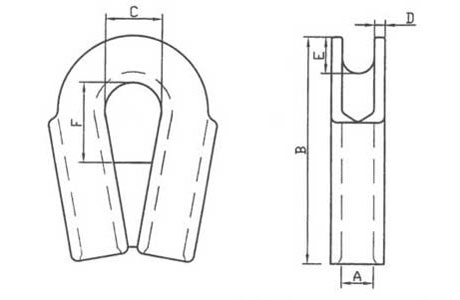

Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) | For wire max. (mm) |
CRSSG808K | 8 | 60 | 17 | 3.0 | 7 | 30 | 0.09 | 6 |
CRSSG810K | 10 | 70 | 20 | 3.0 | 9 | 33 | 0.13 | 8 |
CRSSG812K | 12 | 84 | 20 | 4.0 | 7 | 34 | 0.35 | 10 |
CRSSG815K | 16.5 | 91 | 27 | 5.0 | 9 | 32 | 0.41 | 12 |
CRSSG819K | 19.3 | 113 | 31 | 5.0 | 11 | 46 | 0.62 | 16 |
CRSSG824K | 24.4 | 136 | 46 | 5.0 | 15 | 57 | 0.9 | 21 |
CRSSG827K | 27.7 | 142 | 45 | 4.7 | 15 | 62 | 0.97 | 24 |
CRSSG831K | 31 | 163 | 48 | 7.0 | 19 | 66 | 1.92 | 28 |
CRSSG839K | 40.7 | 179 | 60 | 8 | 20 | 83 | 1.79 | 35 |
CRSSG844K | 44 | 200 | 68 | 7 | 23 | 83 | 2.6 | 40 |
CRSSG848K | 48 | 220 | 74 | 5.5 | 32 | 82 | 2.90 | 44 |
CRSSG860K | 60 | 260 | 100 | 8.5 | 38 | 90 | 5.90 | 54 |
