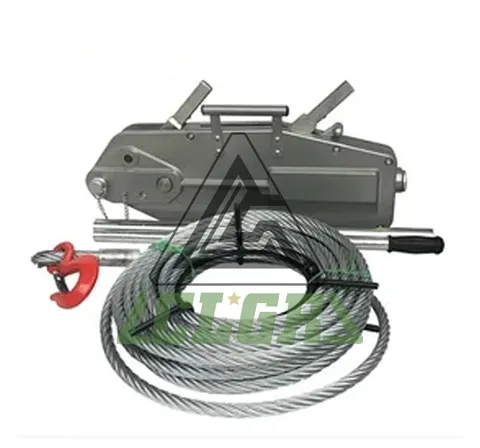

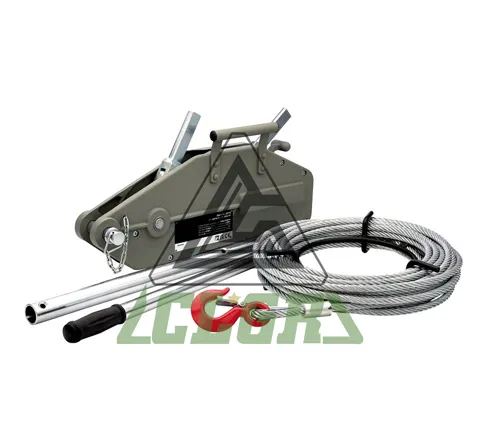

CLGR® Wire Rope Puller in Steel SPL Type

Name: CLGR® Wire Rope Puller in Steel SPL Type
Brand: CLGR®

CLGR® Wire Rope Puller in Steel SPL Type, also known as Wire Rope Pulling Hoist and Aluminum Wire Rope Winch with Cable.

A hand-operated device designed for lifting and pulling operations, the wire rope puller also works for lowering, tensioning, and guying that make it a versatile, portable, and multipurpose tool.

There is a forward and reverse handle for extra control when pulling or releasing the load. The additional release lever saves time when adjusting rope length.

The telescopic two-piece operating handle means it can be adjusted to suit any height.

The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.

A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.

This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.

There is a heavy-duty hook fitted to the end of the wire rope, which can be attached to the wire or securely fitted to the puller using the anchor pin.

The load is held securely at all times.

To Get A Quote >

CLGR® Wire Rope Puller in Steel SPL Type

Overview of CLGR® Wire Rope Puller in Steel SPL Type

Brand	CLGR®
Shell surface treatment	Spray, Chrome plated. standard for sand gray, color can be customized
Features	Sturdy and durable, light weight, easy to carry
	Compact high-strength
	Corrosion free aluminium casing
	Usable at horizontal, vertical and angled working positions
	Spare shear pins supplied

Specifications of CLGR® Wire Rope Puller in Steel SPL Type

Part No.	Lifting Capacity (Rated Load)	Pulling Capacity	Lever Pull at rated Load	Forward Travel	Wire Rope Diameter	Net Weight (Body)	Net Weight (20 m Wire Rope)	Weight (Lever Handle)	Dimensions (Body) L x W x H
Part No.	(tonnes)		(N)	(mm)		(kg)			(mm)
CRSPL0.8T	0.8	1.2	284	>52	8.3	6.8	6.5	1.3	440 x 70 x 255
CRSPL1.6T	1.6	2.4	412	>55	11	12.8	10.5	23	560 x 100 x 295
CRSPL3.2T	3.2	4	441	>28	16	23.4	22	2.3	675 x 120 x 350
