CLGR® Steel Triangle Plates with Six Holes for Trawl Fishing, also known as Triangle Rigging Plate and Triangle Towing Plates, or Delta Plates.
The Steel triangle plates for attaching mallions/shackle swivels to straps, single-point trapeze and hammock/teardrop silks.
The triangle keeps the swivels apart to allow them to spin smoothly and without obstruction.
They equalize the load when using multiple slings and prevent the interference of chains, ropes or shackles during operation.
When there is a minimum distance between the triangle plate and the gap required, we advise to use washers. Spacers in the triangle plate available on request.
Brand | CLGR® |
Material | Superior Mild Steel |
Origin | China |

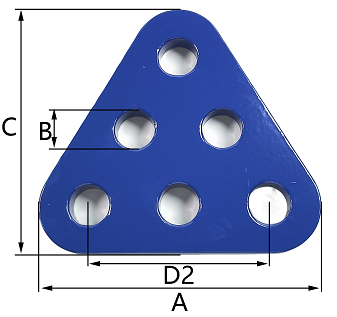

Part No. | Dimensions | Weight（kg） | ||||
| Thickness（mm） | A（mm） | B（mm） | C（mm） | D2（mm） | ||
6CRST620 | 21 | 205 | 32 | 186 | 133 | 3.3 |
6CRST625 | 26 | 280 | 37 | 257 | 182 | 9.0 |
