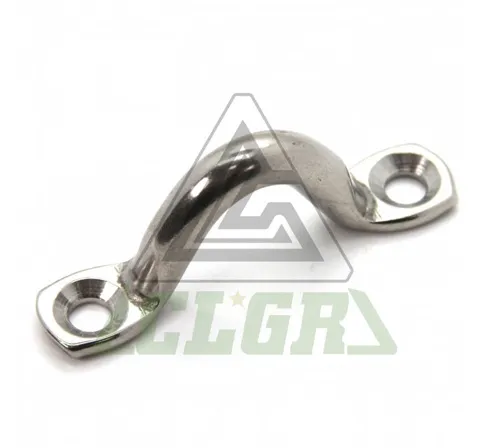

CLGR® Stainless Steel Wire Eye Straps also known as Stainless Steel Saddle, Blocks accessories saddles or Stainless Steel Strap Eye.
Stainless Steel Wire Eye Straps are made from 304 or 316 stainless steel for maximum corrosion resistance and durability, enabling them to stay reliably in marine environments where salt and moisture are prevalent.
This Wire Eye Strap is designed to create a tie down point by fastening onto a flat surface, steel post, wall or panel—simply attach it to a sturdy structure using its 2 eye holes, and it can be used with rope or other cordage.
Ideal for anchoring stainless steel wire ropes in balustrading systems, it is available in sizes 4mm, 5mm, 6mm, 8mm and 10mm, with customized sizes also offered.
| Brand | CLGR® |
| Material | Stainless steel 304 or 316 |
| Processing | Stamping / Machining |
| Finish | Highly Polished |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm |
| Note | Do not use for overhead lifting |

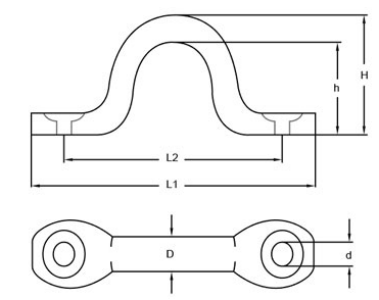

Part No. | D | d | L2 | h | H | L1 | WT |
mm | kgs | ||||||
CRSSSES001 | 4 | 4 | 35 | 12 | 16 | 46 | 0.005 |
CRSSSES002 | 5 | 4 | 42 | 13 | 17 | 53 | 0.008 |
CRSSSES003 | 6 | 5 | 47 | 16 | 22 | 60 | 0.013 |
CRSSSES004 | 8 | 6 | 49 | 17 | 25 | 63 | 0.026 |
CRSSSES005 | 10 | 6.5 | 63 | 22 | 32 | 80 | 0.053 |
