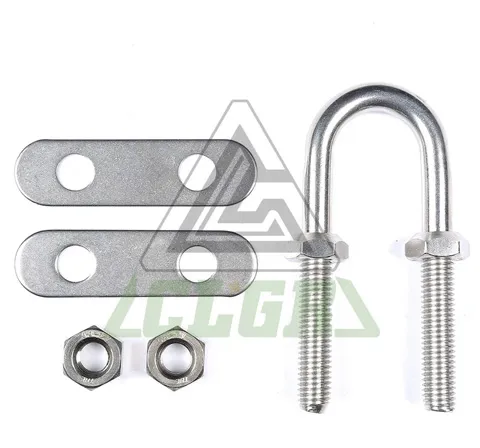

CLGR® Stainless Steel U Bolt with 2 Plates & Nuts PPN Type

Name: CLGR® Stainless Steel U Bolt with 2 Plates & Nuts PPN Type
Brand: CLGR®

CLGR® Stainless Steel U Bolt, also called U clamp and U Clamp Bolts.

Our U-bolts come with two plate and nuts, all made of stainless steel for corrosion resistance.

U-bolts are great for supporting and securing pipework, since their u-shaped design makes them suitable for automotive, plumbing, residential, industrial and other various applications.

To Get A Quote >

Overview of CLGR® Stainless Steel U Bolt with 2 Plates & Nuts PPN Type

Brand	CLGR®
Material	Stainless Steel 304 or 316 U bolt
Processing	Stamping & Machining
Finish	Highly Polished
U Bolt Clamp Sizes	4mm, 5mm, 6mm, 8mm, 10mm, 12mm stainless steel U bolt Clamp

Specifications of CLGR® Stainless Steel U Bolt with 2 Plates & Nuts PPN Type

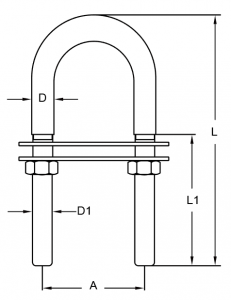

Part No.	D1	L1	L	D	A	WT
Part No.	mm					kgs
CRSSUB2PPN01	4	30	62	5	30	0.035
CRSSUB2PPN02	5	48	78	6	36	0.048
CRSSUB2PPN03	6	42	80	8	36	0.072
CRSSUB2PPN04	6	42	90	8	36	0.08
CRSSUB2PPN05	8	40	80	10	35	0.114
CRSSUB2PPN06	8	52	100	10	45	0.133
CRSSUB2PPN07	10	35	90	12	50	0.199
CRSSUB2PPN08	10	35	110	12	50	0.219
CRSSUB2PPN09	10	80	135	12	50	0.243
CRSSUB2PPN10	12	65	130	14	60	0.34
CRSSUB2PPN11	12	85	150	14	60	0.38

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
