CLGR® Jaw & Jaw Turnbuckle Stainless Steel, also known as Open Body Wire Rope Rigging Screw, Open Body Turnbuckles - Stainless Steel Fork and Fork.
This Jaw & Jaw Turnbuckle is made from high-quality Type 304/316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial use. The turnbuckle easily extends and contracts with a simple twist of the internal screw action. Each end is equipped with an open jaw with a removable pin.
Our European-style open-body turnbuckles come in both standard and custom sizes to meet diverse requirements.
We are a high-quality supplier of stainless steel products. Please don’t hesitate to contact us at your convenience.
| Brand | CLGR® |
| Size | M5, M6, M8, M10, M12, M16, M20 |
| Type | Commercial European Type |
| Material | Stainless Steel 304/316 |
| Processing | Body: Casting/Forged |
| Jaw | Stamping / Weld / Machining |
| Finish | Highly Polishing |

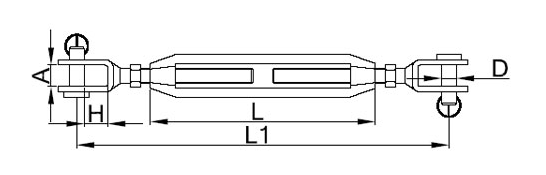

Part No. | Size | L(mm) | L1(mm) | A(mm) | D(mm) | H(mm) | WLL(kg) |
CR-SS-E-JJ05 | M5 | 70 | 120 | 6.5 | 5 | 10 | 188 |
CR-SS-E-JJ06 | M6 | 90 | 140 | 7.5 | 6 | 10 | 350 |
CR-SS-E-JJ08 | M8 | 120 | 180 | 11 | 8 | 11 | 550 |
CR-SS-E-JJ10 | M10 | 150 | 220 | 12 | 9 | 14 | 863 |
CR-SS-E-JJ12 | M12 | 200 | 300 | 14 | 12 | 20 | 1250 |
CR-SS-E-JJ14 | M14 | 220 | 325 | 15 | 12 | 22 | 1600 |
CR-SS-E-JJ16 | M16 | 250 | 375 | 17 | 16 | 26 | 2000 |
CR-SS-E-JJ20 | M20 | 300 | 450 | 20 | 19 | 30 | 2625 |
