CLGR® Stainless Steel Turnbuckle Hook & Eye

Name: CLGR® Stainless Steel Turnbuckle Hook & Eye
Brand: CLGR®

CLGR® Stainless Steel Turnbuckle Hook & Eye, also known as Stainless Steel Open Body Turnbuckle Hook and Eye.

The CLGR® Stainless Steel Open Body Turnbuckle Hook & Eye is a robust and reliable choice for adjusting and securing rigging tension. Crafted from premium stainless steel, it ensures excellent resistance to corrosion and wear. Dependable and precise, this turnbuckle is a must-have for any rigging setup.

Our European-style open-body turnbuckles come in both standard and custom sizes to meet diverse requirements.

We are a high-quality supplier of stainless steel products. Please don’t hesitate to contact us at your convenience.

To Get A Quote >

CLGR® Stainless Steel Turnbuckle Hook & Eye

 

Overview of CLGR® Stainless Steel Turnbuckle Hook & Eye

Brand	CLGR®
Size	M5, M6, M8, M10, M12, M16, M20 Hook Eye Turnbuckle
Type	Commercial European Type
Material	Stainless Steel 304/316
Processing	Eye: Welding / Machining
Body	Cast / Forge
Hook	Stamping / Machining
Finish	Highly Polishing

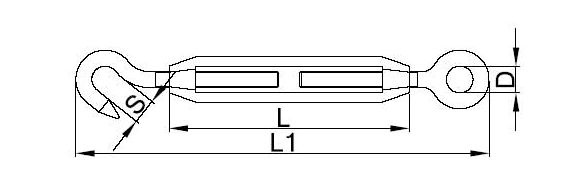

Specifications of CLGR® Stainless Steel Turnbuckle Hook & Eye

Part No.	Size	L(mm)	L1(mm)	D(mm)	S(mm)	WLL(kg)
CRSSTHEEU05	M5	70	120	8	8	40
CRSSTHEEU06	M6	90	150	10	9	80
CRSSTHEEU08	M8	120	200	14	11	140
CRSSTHEEU10	M10	150	240	16	12	220
CRSSTHEEU12	M12	200	310	18	14	300
CRSSTHEEU16	M16	250	390	25	16	600
CRSSTHEEU20	M20	300	440	30	18	900

Bulk Products Photos of Stainless Steel Turnbuckle Hook & Eye

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
