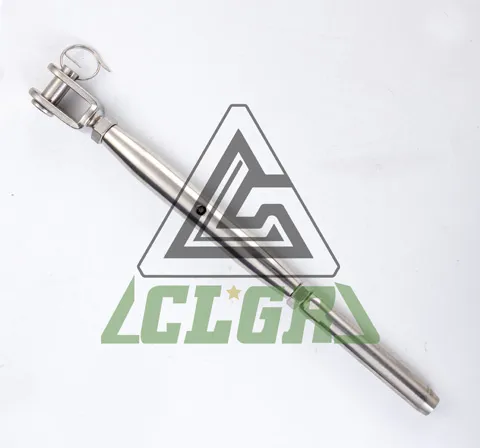

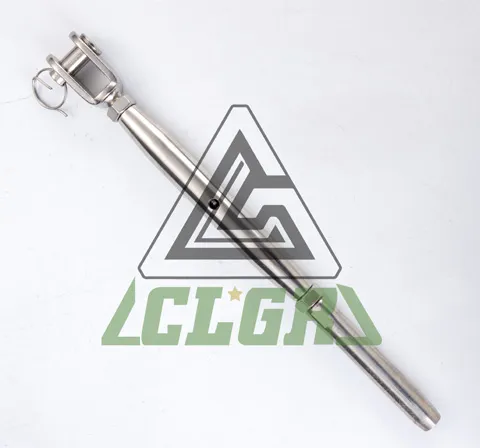

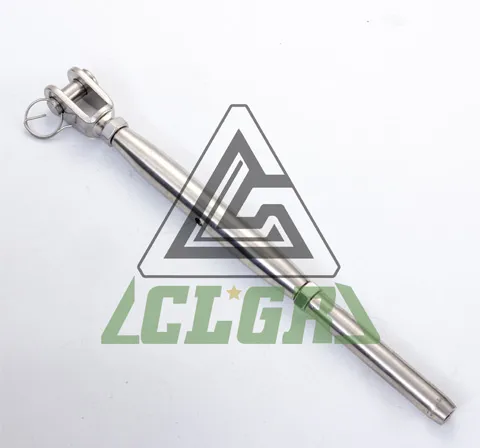

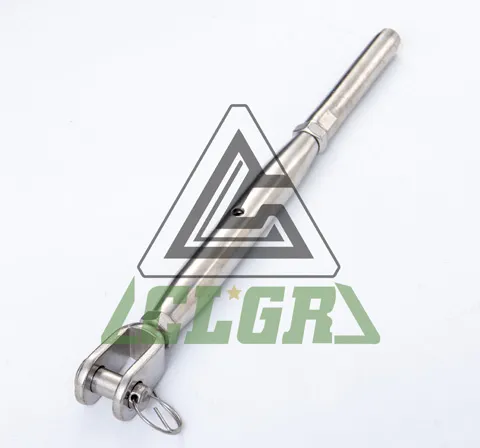

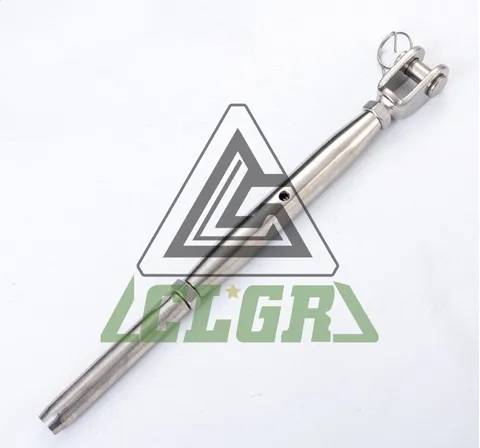

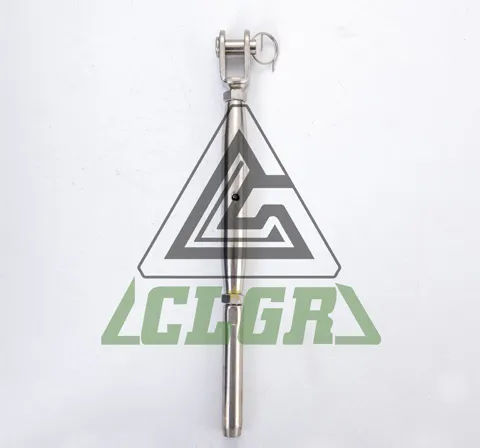

CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud, also known as Closed Body Turnbuckles Swage & Fork - Stainless Steel, Metric Fork to Stud Turnbuckle, rigging screws, tensioners, bottle screws or adjusters.
This stainless steel pipe body turnbuckle is made of rustproof stainless steel (material AISI 316). Stainless steel rigging screw body with fork (and pin) at one end, swage stud for crimping onto stainless steel wire rope at the other end. Metric threaded end fittings allow for perfect tensioning every time. Normally used with lock nuts.
We are a high-quality supplier of stainless steel products. Please don’t hesitate to contact us at your convenience.
| Brand | CLGR® |
| Size | M4, M5, M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M36 |
| Material | Stainless Steel AISI 316 |
| Processing | Body: Machining |
| Jaw | Stamping / Machining / Welding |
| Swage Stud | Machining / Stamping |
| Finish | Highly Polishing |
Part No. | Thread Size | Wire | A | D | H | D1 | D2 | L3 | L1 | L2 | KG/100 | B.L.KG. |
mm | ||||||||||||
CRSSRSJS0402 | M4 | 2 | 5.5 | 4 | 8 | 2.2 | 4.8 | 24 | 125 | 150 | 3.3 | 500 |
CRSSRSJS0502 | M5 | 2 | 6.5 | 5 | 10 | 2.2 | 5.5 | 32 | 155 | 215 | 5 | 800 |
CRSSRSJS0525 | M5 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 32 | 155 | 215 | 5 | 800 |
CRSSRSJS0532 | M5 | 3.2 | 6.5 | 5 | 10 | 3.5 | 6.35 | 39 | 160 | 220 | 4.6 | 800 |
CRSSRSJS0603 | M6 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 39 | 175 | 245 | 8 | 1250 |
CRSSRSJS0632 | M6 | 3.2 | 7.5 | 6 | 10 | 3.5 | 6.35 | 39 | 175 | 245 | 8 | 1250 |
CRSSRSJS0604 | M6 | 4 | 7.5 | 6 | 10 | 4.3 | 7.5 | 45 | 185 | 255 | 8.5 | 1250 |
CRSSRSJS0804 | M8 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 45 | 200 | 275 | 14 | 1300 |
CRSSRSJS0805 | M8 | 5 | 11 | 8 | 11 | 5.3 | 9 | 52 | 205 | 280 | 15 | 2350 |
CRSSRSJS1005 | M10 | 5 | 12 | 9 | 14 | 5.3 | 9 | 52 | 230 | 320 | 25.5 | 2350 |
CRSSRSJS1006 | M10 | 6 | 12 | 9 | 14 | 6.4 | 12.6 | 64 | 245 | 335 | 29.5 | 3500 |
CRSSRSJS1206 | M12 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 64 | 285 | 400 | 49 | 5100 |
CRSSRSJS1208 | M12 | 8 | 14 | 12 | 20 | 8.4 | 16 | 80 | 305 | 420 | 54.5 | 5100 |
CRSSRSJS1407 | M14 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 315 | 435 | 58 | 5900 |
CRSSRSJS1608 | M16 | 8 | 17 | 16 | 26 | 8.4 | 16 | 80 | 360 | 500 | 108 | 8000 |
CRSSRSJS1610 | M16 | 10 | 17 | 16 | 26 | 10.5 | 18 | 90 | 370 | 510 | 112 | 8000 |
CRSSRSJS2010 | M20 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 410 | 560 | 172 | 13000 |
CRSSRSJS2012 | M20 | 12 | 23 | 19 | 35 | 12.6 | 20 | 105 | 430 | 580 | 180 | 13000 |
CRSSRSJS2214 | M22 | 14 | 30 | 22 | 46.5 | 14.7 | 25 | 140 | 545 | 715 | 452 | 17000 |
CRSSRSJS2416 | M24 | 16 | 30 | 25 | 49 | 16.9 | 28 | 160 | 625 | 855 | 662 | 20000 |
CRSSRSJS2719 | M27 | 19 | 34 | 28 | 54 | 20 | 34.5 | 200 | 735 | 970 | 752 | 27000 |
CRSSRSJS3022 | M30 | 22 | 40 | 32 | 62 | 23.2 | 40.5 | 230 | 825 | 1080 | 948 | 31000 |
CRSSRSJS3626 | M36 | 26 | 44 | 36 | 70 | 27.5 | 46 | 280 | 930 | 1200 | 1366 | 43000 |
