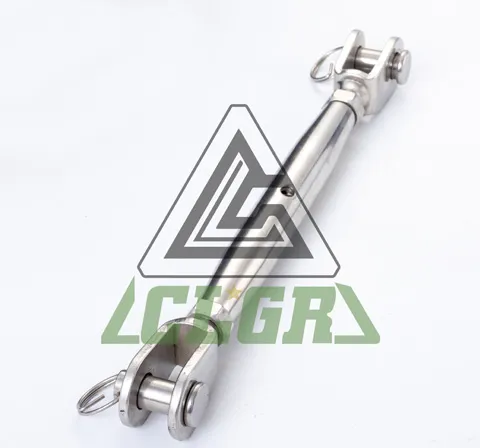

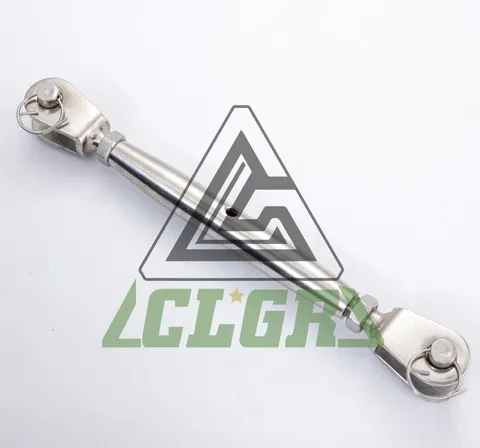

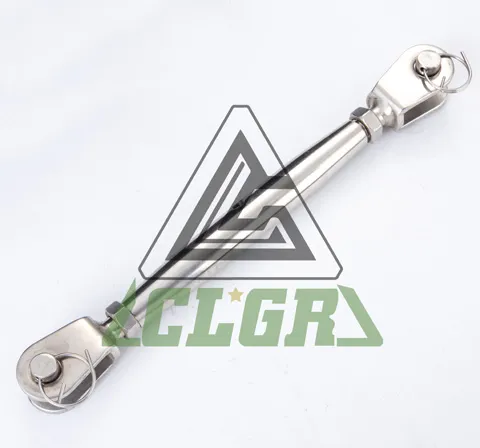

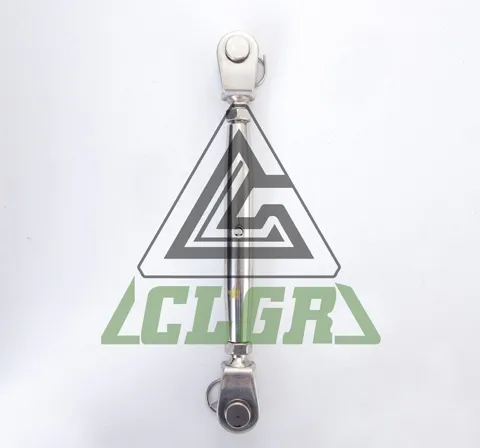

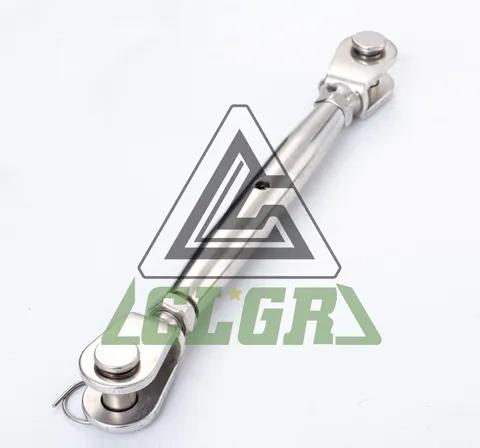

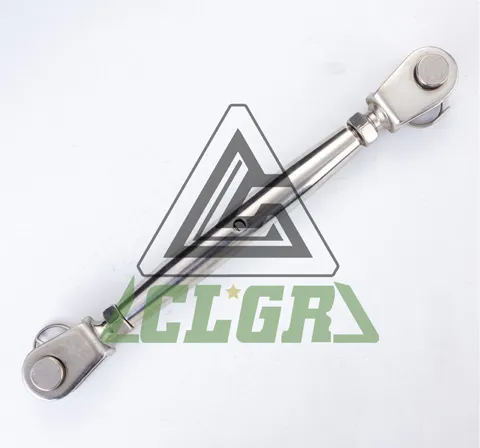

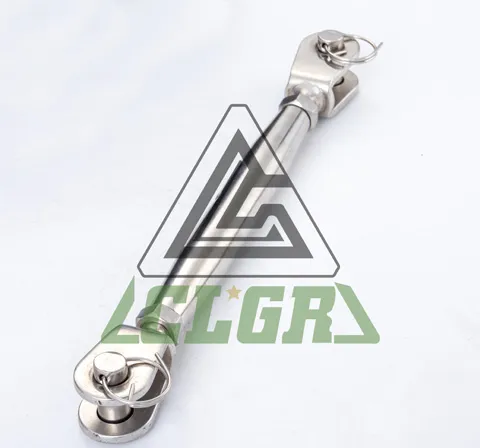

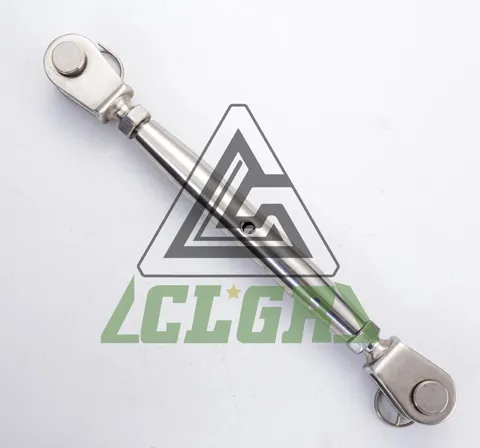

CLGR® Stainless Steel Closed Body Turnbuckle Jaw & Jaw, also known as Closed Body Turnbuckles - Stainless Steel Fork and Fork, Stainless steel JAW and JAW bottlescrews.
Premium quality stainless steel closed body jaw to jaw turnbuckles is available in sizes: 5mm, 6mm, 8mm,10mm, 12mm, 14mm, 16mm, 20mm, 22mm,24mm, 27mm, 30mm, 36mm.
Additional turnbuckles with an open body, eye-eye and hook-eye variations available in both stainless steel and galvanised finishes.
We are a high-quality supplier of stainless steel products. Please don’t hesitate to contact us at your convenience.
| Brand | CLGR® |
| Size | M4, M5, M6, M8, M10, M12, M14, M16, M20, M22 |
| Material | Stainless Steel |
| Processing | Body: Machining |
| Jaw | Stamping/Machining/Welding |
| Finish | Highly Polishing |

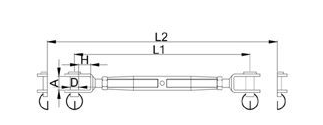

Part No. | Thread Size | A (mm) | D (mm) | H (mm) | L1 (mm) | L2 (mm) | KG/100 | B.L.KG. |
CRSSCJJ04 | M4 | 5.5 | 4 | 8 | 110 | 170 | 3.6 | 347 |
CRSSCJJA05 | M5 | 6.5 | 5 | 10 | 130 | 190 | 5.6 | 571 |
CRSSCJJB05 | M5 | 7.5 | 5 | 9 | 130 | 190 | 4.7 | 571 |
CRSSCJJA06 | M6 | 7.5 | 6 | 10 | 150 | 220 | 8.6 | 786 |
CRSSCJJB06 | M6 | 8 | 6 | 10 | 150 | 220 | 8.3 | 786 |
CRSSCJJ08 | M8 | 11 | 8 | 11 | 165 | 240 | 15.5 | 1418 |
CRSSCJJ10 | M10 | 12 | 9 | 14 | 190 | 280 | 28 | 2225 |
CRSSCJJ12 | M12 | 14 | 12 | 20 | 245 | 360 | 53 | 3265 |
CRSSCJJ14 | M14 | 15 | 12 | 22 | 270 | 390 | 64.5 | 4490 |
CRSSCJJ16 | M16 | 17 | 16 | 26 | 310 | 450 | 118 | 5816 |
CRSSCJJ20 | M20 | 20 | 19 | 30 | 360 | 510 | 203 | 9082 |
CRSSCJJ22 | M22 | 30 | 22 | 46.5 | 472 | 653 | 448 | 17000 |
CRSSCJJ24 | M24 | 30 | 25 | 49 | 520 | 750 | 638 | 20000 |
CRSSCJJ27 | M27 | 34 | 28 | 54 | 595 | 830 | 752 | 27000 |
CRSSCJJ30 | M30 | 40 | 32 | 62 | 660 | 915 | 948 | 31000 |
CRSSCJJ36 | M36 | 44 | 36 | 70 | 730 | 1000 | 1366 | 43000 |
