CLGR® Stainless Steel Split Tee 60 Degree

Name: CLGR® Stainless Steel Split Tee 60 Degree
Brand: CLGR®

CLGR® Stainless Steel Split Tee 60 Degree, also known as Stainless Steel Tubular 60-Degree T-Fitting (Tee Fitting), and 60 Degree Handrail Tee Fitting.

The 60° Handrail Tee is a specialized connector used in marine handrail systems. It allows handrails to join at a precise 60-degree angle, making it ideal for crafting custom layouts.

Made of 316 Stainless Steel for durability and resistance to rust and corrosion, suitable for rough weather at sea

The surface of the 60 Degree Split Tee has been well polished, which has a mirror-like appearance.

Marine handrails are essential for ensuring safety and support on boats and yachts.

To Get A Quote >

Overview of CLGR® Stainless Steel Split Tee 60 Degree

Brand	CLGR®
Material	Stainless Steel AISI316
Surface Finished	Mirror Polished or Electric Polished is also available
Processing	Casting
Size	7/8″ and 1″ (22mm and 25mm)
Origin	China

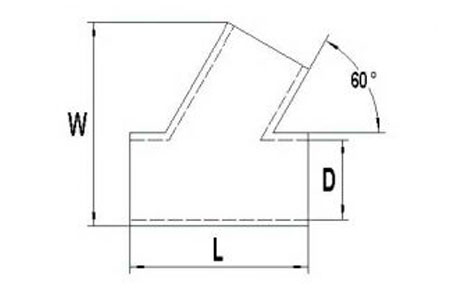

Specifications of CLGR® Stainless Steel Split Tee 60 Degree

Part No.	Size	L	W	D
CRSSST-D6-22	22mm	50mm	61mm	M8
CRSSST-D6-25	25mm	50mm	64mm	M8

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
