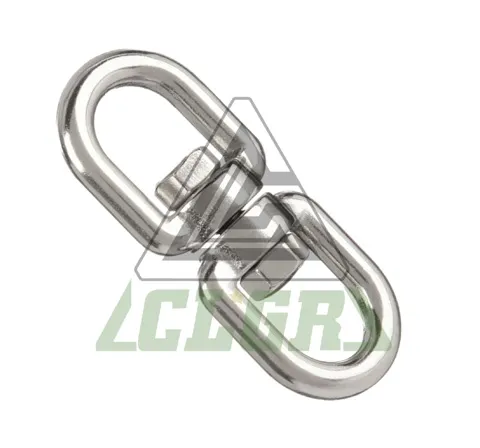

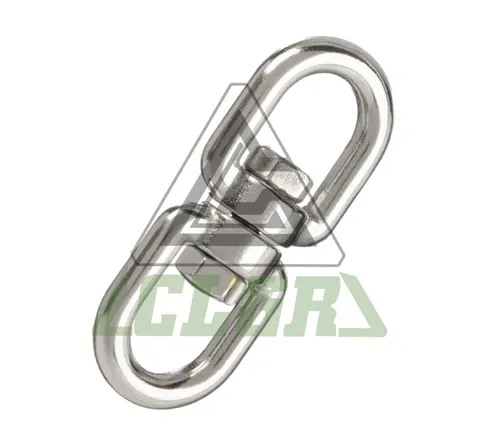

CLGR® Stainless Steel Eye & Eye Swivel

Name: CLGR® Stainless Steel Eye & Eye Swivel
Brand: CLGR®

CLGR® Stainless Steel Eye & Eye Swivel, also known as Stainless Steel Swivel Eye & Eye Shackle, and Stainless Steel Anchor Chain Swivel Eye.

Made of AISI 304 / AISI 316 Stainless steel, 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

This Stainless Steel Anchor Chain Swivel have 2 welded nut pivot bolts.

Available in a range of sizes, including 4mm, 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 19mm, 25mm, other sizes can also be customized.

To Get A Quote >

Overview of CLGR® Stainless Steel Eye & Eye Swivel

Brand	CLGR®
Material	Stainless steel (AISI 304 / 316)
Processing	Precision Casting
Finish	Highly Polishing
Size	4mm, 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 19mm, 25mm

Specifications of CLGR® Stainless Steel Eye & Eye Swivel

Part No.	D mm	L mm	WLL
Part No.	D mm	L mm	kg
CR-SS-S-EE-04	4	48	*
CR-SS-S-EE-05	5	59	100
CR-SS-S-EE-06	6	66	150
CR-SS-S-EE-08	8	94	300
CR-SS-S-EE-10	10	118	500
CR-SS-S-EE-13	13	152	1000
CR-SS-S-EE-16	16	189	2000
CR-SS-S-EE-19	19	229	2500
CR-SS-S-EE-25	25	300	3000
